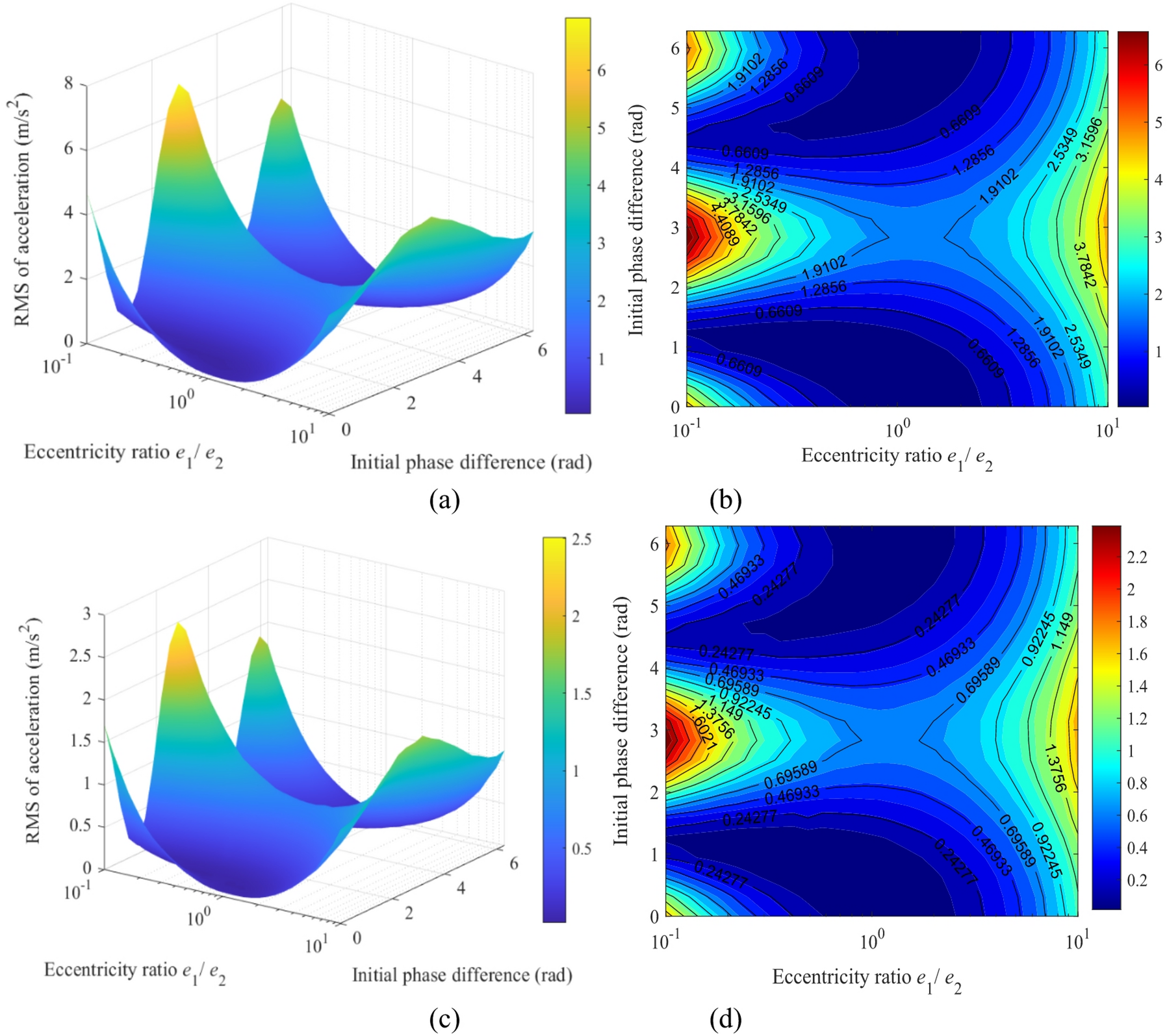

Fig. 18

Mapping of the sun’s acceleration responses versus the eccentricity ratio (e₁/e₂) and initial phase difference (Δϕ): (a) 3D surface map of the x-direction acceleration; (b) Heat map of the x-direction acceleration; (c) 3D surface map of the y-direction acceleration; (d) Heat map of the y-direction acceleration.
