From: Dynamic damage and crack propagation of granite under thermal shock: DEM modeling insights

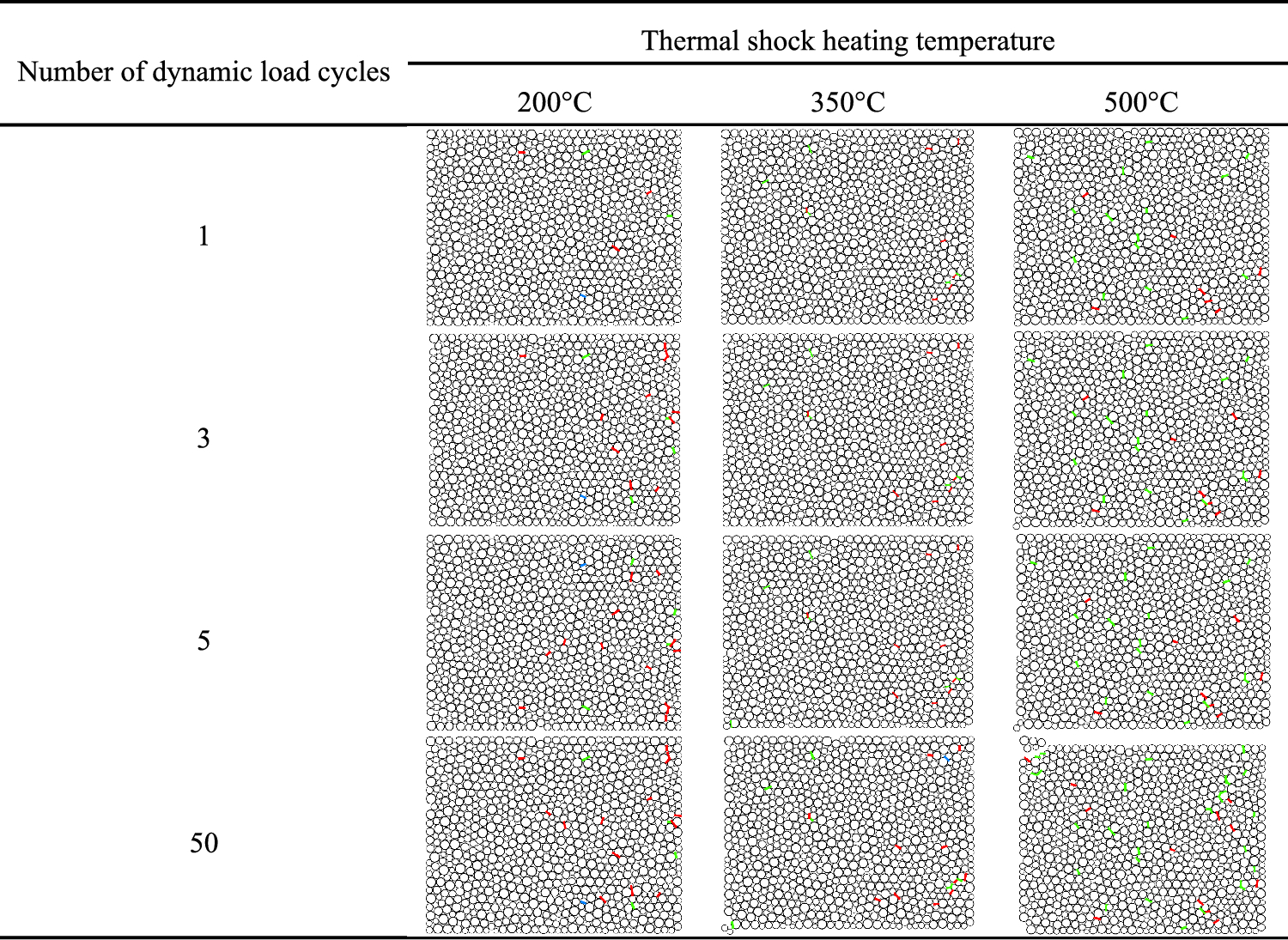

Damage and crack distribution of rocks under dynamic loading during three heat treatments. Among these short lines, green denotes tensile cracks, red denotes tensile-shear cracks, and blue denotes compressive-shear cracks.
