Fig. 2
From: Study of the process-structure-property correlation in CVD-SiC coatings on graphite substrates

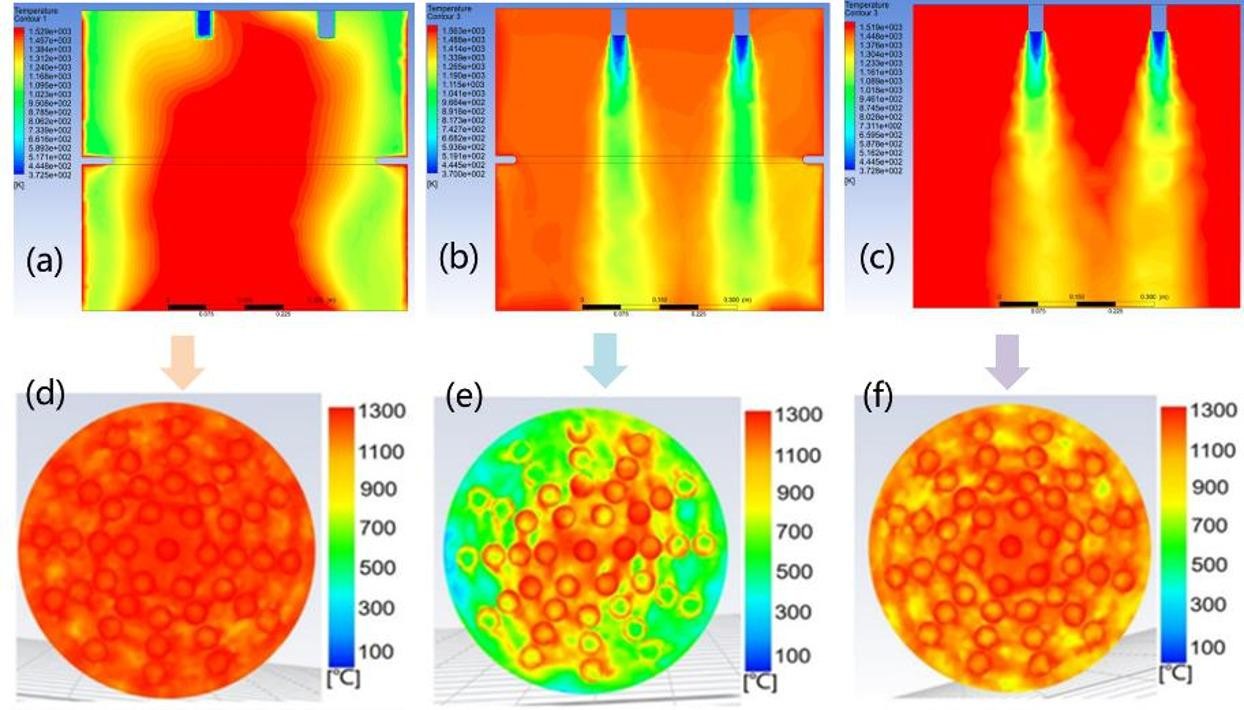

Simulated temperature field distribution in the furnace chamber under different gas flow rates (a) 0.2 L/min; (b) 2 L/min; (c) 1 L/min. (d) to (f) are the simulated surface morphology of coatings formed under the experimental conditions corresponding to (a) to (c).
