Fig. 13

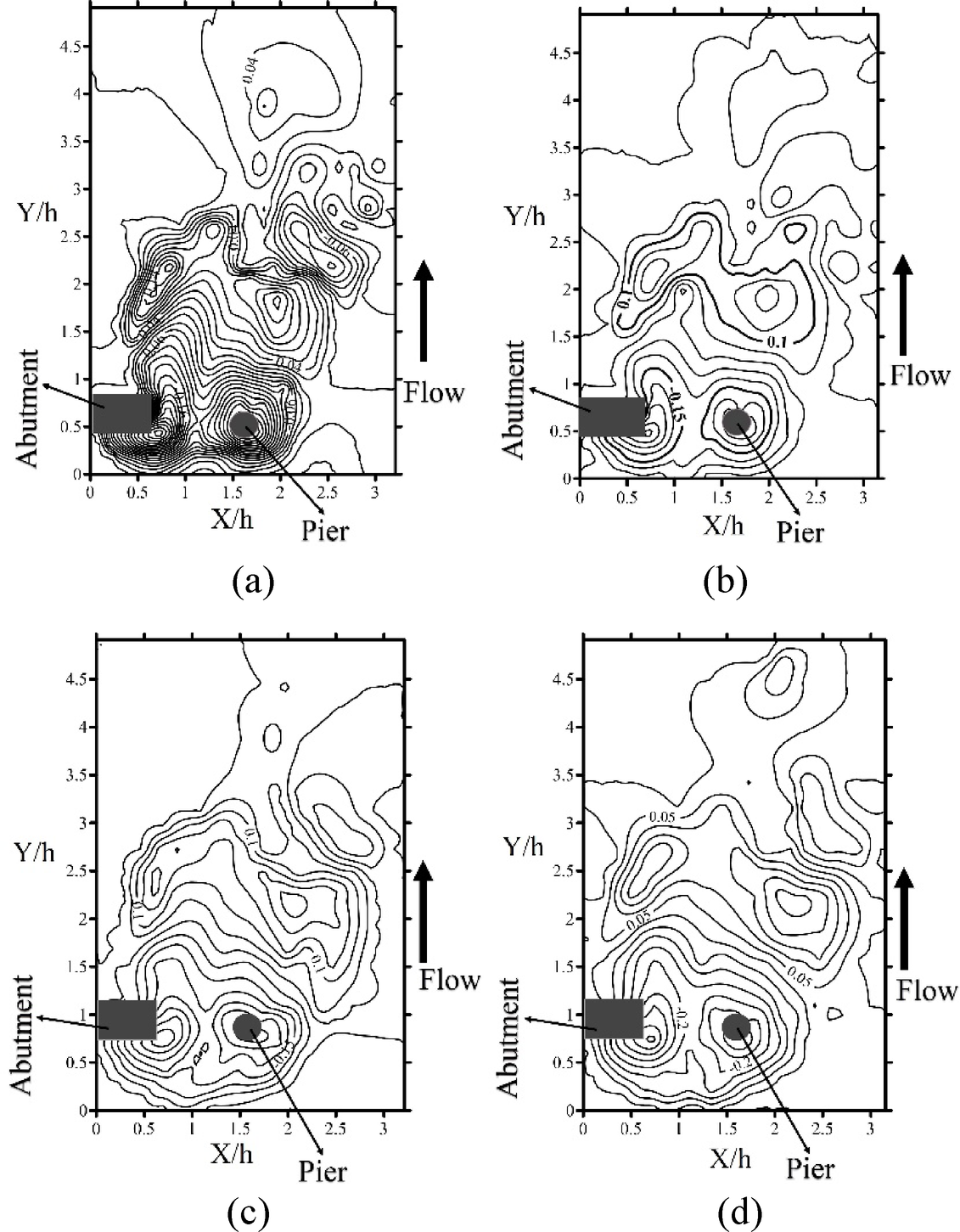

Contour lines of sedimentary bed: a) rectangular debris with relative thickness (\({T}_{d}/h\)) of (a) 0.09, (b) 0.19, (c) 0.29 and (d) 0.39 at relative distance of 0.2 between bridge pier and abutment (\({d}_{ap}/B\)).
