Fig. 4
From: Distinct genomic, microenvironmental, and nephron signatures in VHL kidney cysts and tumors

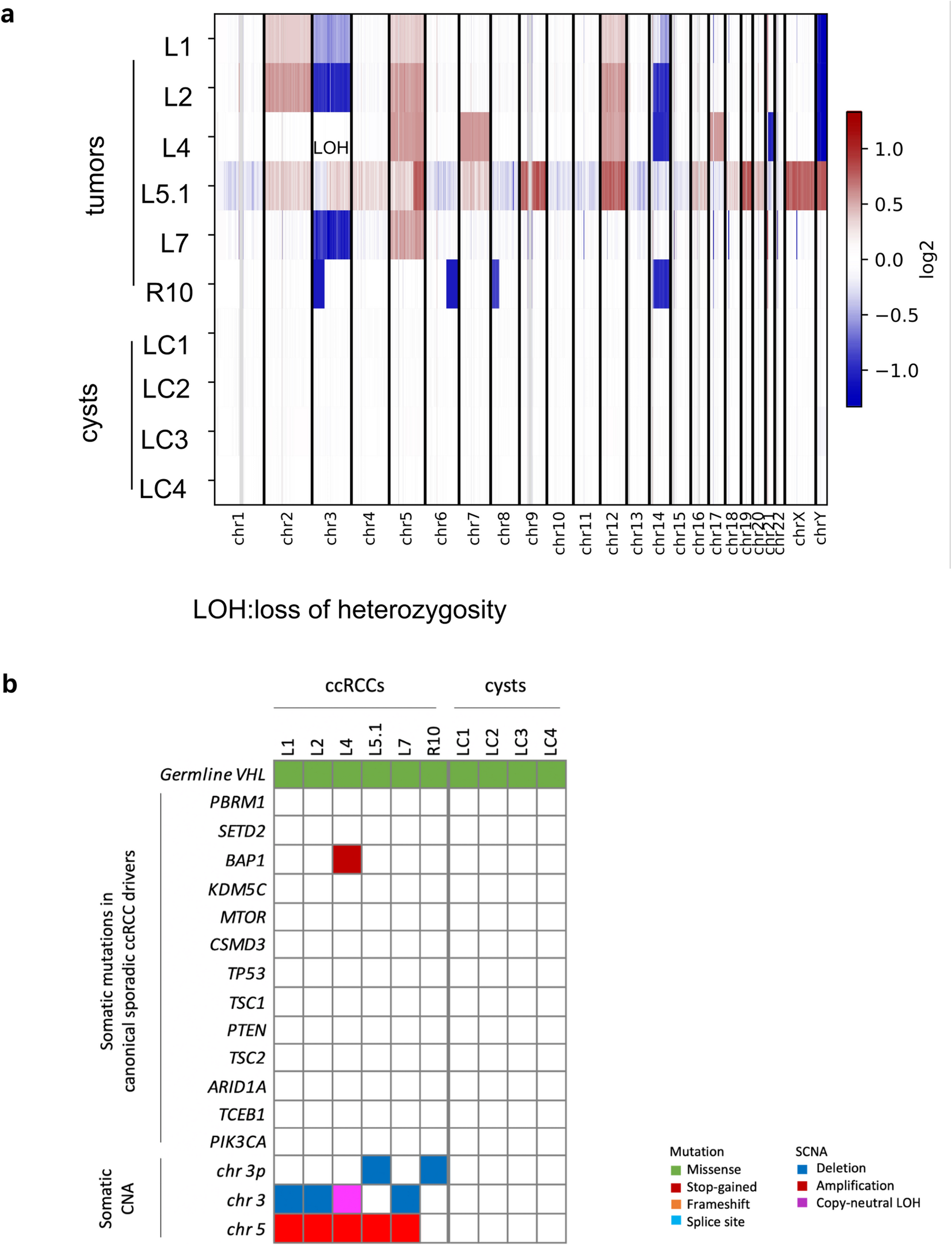

Tumors show an altered somatic copy number landscape compared to cysts and lack additional driver alterations. (a) Heatmap plot displaying the log2 copy number ratios of tumors and cysts. Each column is a chromosome, each row is a sample. The heatmap represents the consensus variants called with a total of three tools (b) Landscape of driver variants in VHL-related ccRCCs. Heatmap shows the distribution of germline variants in VHL, somatic ccRCC driver variants, and SCNAs.
