Introduction

Recombinant adeno-associated virus (rAAV)-based vectors have become widely used in gene therapy, serving as efficient vehicles for in vivo delivery of therapeutic genes. They combine low pathogenicity and low toxicity with broad cell tropism and the ability to support long-term gene expression, making them a versatile and safe platform for treating a wide range of genetic disorders1. However, while more than 300 clinical trials have been conducted and eight rAAV-based therapies have been approved to date2, some of these therapies have been withdrawn, and research efforts are currently being scaled back due to the high manufacturing costs3. These challenges highlight the urgent need to improve recombinant AAV production processes to reduce costs and ensure the continued advancement and accessibility of gene therapy.

Current manufacturing systems primarily rely on Human Embryonic Kidney (HEK) 293 transient transfection, which is the most straightforward and fast approach for rAAV production, offering flexibility during the early stages of product development4. However, while the transient transfection system offers advantages in terms of overall timelines and flexibility, it lacks robustness, limits product quality, and poses significant challenges for large-scale manufacturing—factors that contribute to elevated production costs5. On the other hand, producer cell lines (PCLs) present a promising alternative, providing higher scalability, robustness, and product quality4.

The HeLaS3-based PCL platform is a well-established and promising system for rAAV production. Originally developed by Clark et al. (1995)6, this platform has undergone significant improvements to meet industrial standards and enhance regulatory compliance7,8,9. Despite these advancements, establishing a producer cell line remains time-intensive (typically 6–8 months) and requires a complex protocol involving dual screening stages, which continues to pose a major challenge7,8,9.

This study introduces the adaptation of the glutamine synthetase (GS)-based selection system—widely used in Chinese Hamster Ovary (CHO) cells for monoclonal antibody production—to the HeLaS3 platform for the generation of rAAV producer cell lines. By integrating this selection strategy into a fully suspension-adapted, serum-free workflow, we establish a streamlined and scalable process that enables efficient cell line development and robust rAAV production. Furthermore, we demonstrate that combining GS-based selection with glutamine (Gln)-deprived conditions not only enables stringent selection of high-producing clones but also enhances rAAV productivity by reducing ammonia accumulation during production. Collectively, these results validate a versatile and scalable platform that addresses key limitations of current transient transfection-based systems and supports the development of next-generation gene therapy manufacturing processes.

Results

Generation and characterization of GLUL -/- HeLaS3 cell lines

Previous efforts to implement suspension-based selection using antibiotic resistance markers in HeLaS3 cells for rAAV production have largely been unsuccessful, often resulting in poor enrichment and limited cell viability7,8. To address this, we aimed to evaluate the applicability of the GS-based selection system under Gln-depleted, serum-free conditions. Originally developed for CHO cells, this approach has been also adapted for HEK293 cells, supporting not only monoclonal antibody10 production but also the expression of various recombinant proteins11. To evaluate the suitability of GS-based selection systems for rAAV production, we generated a GLUL-knockout (the human homologous to GS) HeLaS3 cell line. In this selection system, cells become auxotrophic for Gln, and the gene of interest is co-expressed from a plasmid carrying the GLUL gene. Upon transfection, the plasmid integrates into the genome, and cells are selected under Gln-depleted conditions, allowing only those with successful integration to survive12.

Figure 1A shows the structure of the human GLUL gene and its isoforms, highlighting exon 5, which encodes the catalytic domain. To disrupt GLUL expression in HeLaS3 cells, we performed CRISPR-Cas9 gene editing using a single guide RNA targeting exon 5. Cells were transfected via nucleofection with CRISPR-Cas9 ribonucleoprotein complexes. Editing efficiency was assessed three days post-transfection using a T7 endonuclease I assay, which indicated a cleavage rate of approximately 65 % (Fig. 1B).

Fig. 1
figure 1

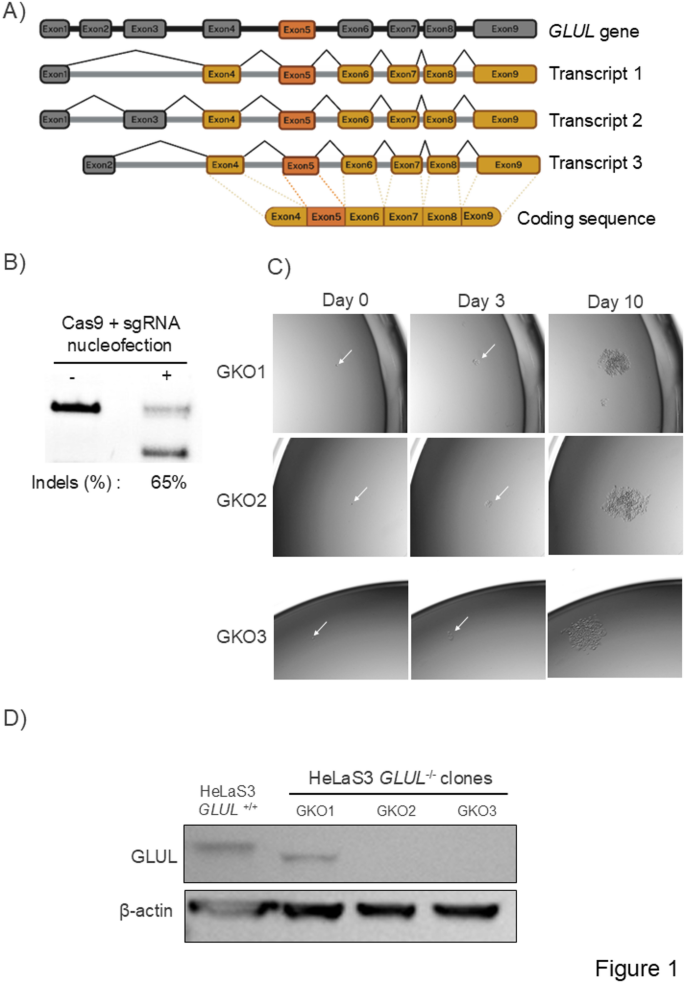

Generation and validation of GLUL-/- HeLaS3 cell lines.(A) Schematic representation of the GLUL gene structure, showing three transcript variants with exons represented as boxes and coding sequences highlighted in yellow. Exon 5, where the protein catalytic site is located, is also highlighted in orange. (B) T7 endonuclease I assay of PCR-amplified genomic DNA from nucleofected cells. Original gel is presented in Supplementary Figure 7. (C) Phase-contrast microscopy images of GLUL-/- clones GKO1, GKO2, and GKO3 at Day 0, Day 3, and Day 10 post single-cell seeding. White arrows indicate clonal outgrowth. (D) Western blot analysis of GLUL protein expression in parental HeLaS3 (GLUL+/+) and GLUL-/- clones. β-actin was used as a loading control. Original blots are presented in Supplementary Figure 8.

Full size image

Clones were obtained from the transfected cell pool, through limiting cell dilution. Single cell cloning was confirmed by imaging at days 0, 3 and 10 after seeding (Fig.1C). Clones were amplified for further testing and to assess the efficiency of GLUL gene disruption, we performed Western blot analysis (Fig. 1D) on three CRISPR-edited HeLa clones (GKO1, GKO2, and GKO3). Interestingly, Clone GKO1 displayed a distinct migration pattern (lower MW band) compared to wild-type (WT) HeLaS3 cells, indicating the presence of a truncated GLUL protein. The sgRNA to delete GLUL gene was designed near the exon 5 splice site, leading us to hypothesize that the splicing site may be disrupted in this clone. Supporting this, nanopore sequencing analysis of Clone GKO1 (Suppl. Fig 1) revealed a subset of alignment sequences with large deletions in the splicing site region. Although the GLUL protein is still expressed in this clone, given that this exon encodes a critical region of the enzyme’s active site10, the resulting protein is expected to be non-functional despite its expression. In contrast, clones GKO2 and GKO3 showed no detectable GLUL protein, consistent with complete knockout.

To assess functional Gln auxotrophy, HeLaS3 wild-type and GLUL-/- clones (GKO1 and GKO3) were analysed. Clone GKO2 was excluded from functional assays due to impaired cell growth, suggesting a potential off-target effect. In Gln-supplemented culture conditions, no differences in viability were observed between wild-type and GLUL-/- clones (Fig. 2A).

Fig. 2
figure 2

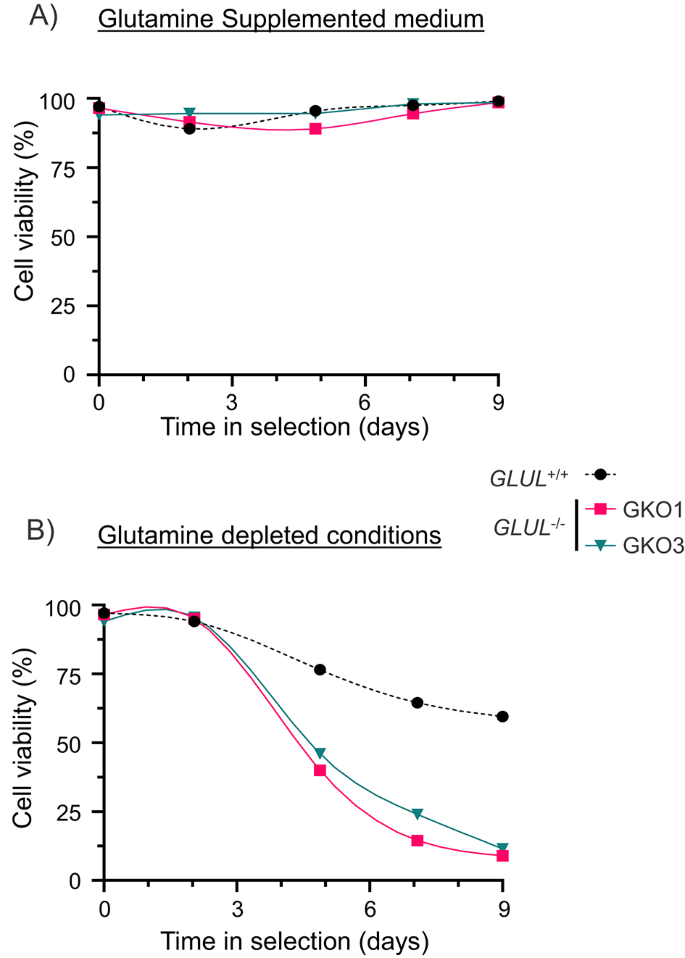

Viability of HeLaS3 wild-type and GLUL-/- clones under Gln-supplemented and Gln-depleted conditions. Cells were cultured in standard conditions in serum-containing medium supplemented with Gln (A) or depleted of Gln (B). Five cell viability measurements were taken by Trypan blue exclusion method over a 9 day period.

Full size image

When HeLaS3 cells were cultured under glutamine-depleted conditions, a pronounced decline in cell viability was observed (Fig. 2B). After nine days, a clear distinction emerged between GLUL-/- clones and WT cells, with viability decreasing to 9% in GKO1 and 12% in GKO3, compared to 60% in WT cells. As expected, no differences were observed in Gln depleted conditions in clone GKO3 and GKO1, confirming that GKO1 truncated form of GLUL is not functional. Moreover, WT cells were able to adapt to growth in this serum-free medium, achieving lower and stable PDTs (~35 h) after subculturing cells for 42 days (Suppl. Fig. 2) due to overexpression of GLUL endogenous gene (Suppl. Fig. 3), which would increase the background of this selection methodology. This data suggests that the use of HeLaS3 GLUL-/- clones is required for the GLUL selection process.

GS-based selection and enrichment of rAAV-producing cells

To assess the feasibility of selecting rAAV-producing clones directly in suspension culture and to streamline the generation of high-rAAV producing HeLaS3 lines, we transfected the GLUL knockout clone GKO1 with rAAV5 producing plasmid (Suppl. Fig 4). Selection was then carried out under glutamine-depleted, serum-free, suspension culture conditions (Fig. 3A). As expected, non-transfected control cells failed to expand under selective pressure (Fig. 3B), confirming the stringency of the Gln-deprived selection. In contrast, transfected cells showed recovery of viability and resumed proliferation by day 14 post-transfection (Fig. 3B), achieving 90 % of cell viability after 22 days indicating successful enrichment of transgene-expressing cells.

Fig. 3
figure 3

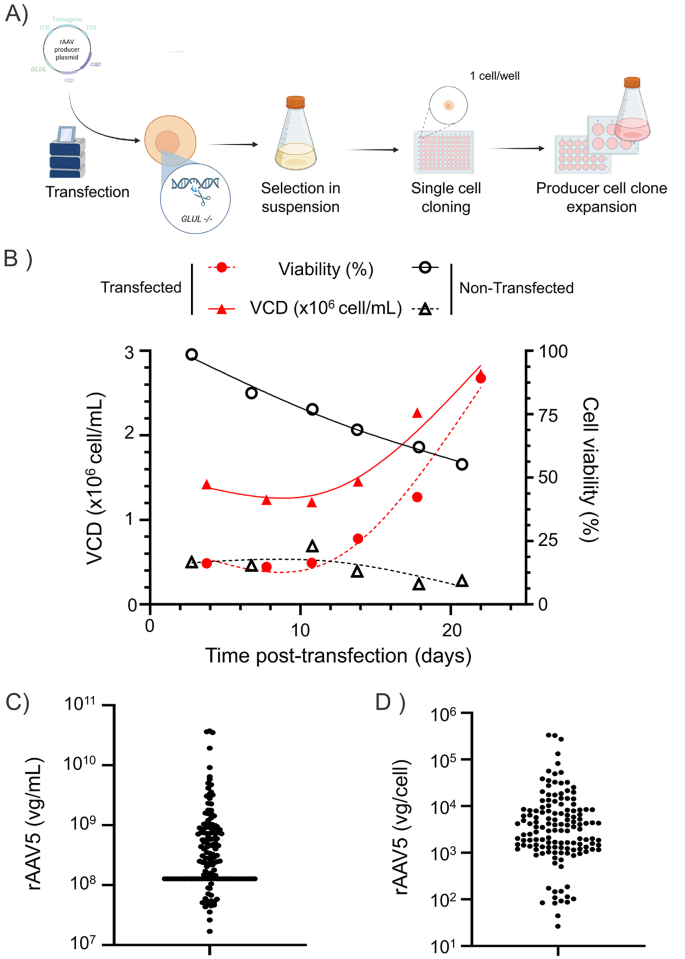

Establishment and characterization of rAAV producer clones using GLUL-based selection in suspension-adapted HeLaS3 cells. (A) Schematic overview of the streamlined 2-month workflow for rAAV producer cell line generation. The process includes plasmid transfection, 3-week selection in Gln-depleted suspension culture, 4-week single-cell cloning, and expansion of selected producer clones. (B) Cell viability and viable cell density (VCD) of HeLaS3 cells non-transfected (in black) or transfected with the rAAV-GLUL producer plasmid (in pink) cultured in Gln-depleted EX-CELL medium over time. The selected pool underwent single-cell cloning, and 120 wells with clonal outgrowth were screened for productivity. rAAV5 vector genome titers (vg/mL) (C) and qP (D) were measured in culture cell lysates of selected clones by qPCR.

Full size image

Following adaptation and enrichment, single-cell cloning was performed under serum-free conditions (Fig. 3A). Expanded clones were screened for rAAV5 productivity. As shown in Fig. 3C, a broad range of vector genome titers (vg/mL) was observed among individual clones, with several exceeding volumetric productivity of 1010 vg/mL. Cell specific production yield (qP, vg/cell) is presented in Fig. 3D, further confirming the identification of high-producing clones achieving a qP of 3×105 vg/cell. These results demonstrate that the suspension-based selection strategy is effective for isolating rAAV-producing HeLaS3 GLUL-/- clones with high productivity.

Characterization and performance of the HeLaS3 GS-based platform

To validate the platform performance and characterize stable integration of the transgene, three high-producing clones were selected for scale-up and further analysis. As shown in Fig. 4A, rAAV5 volumetric productivity was confirmed in shake flask cultures, with Clone 1 showing vector genome titers exceeding 4×1010 vg/mL, consistent with initial screening results.

Fig. 4
figure 4

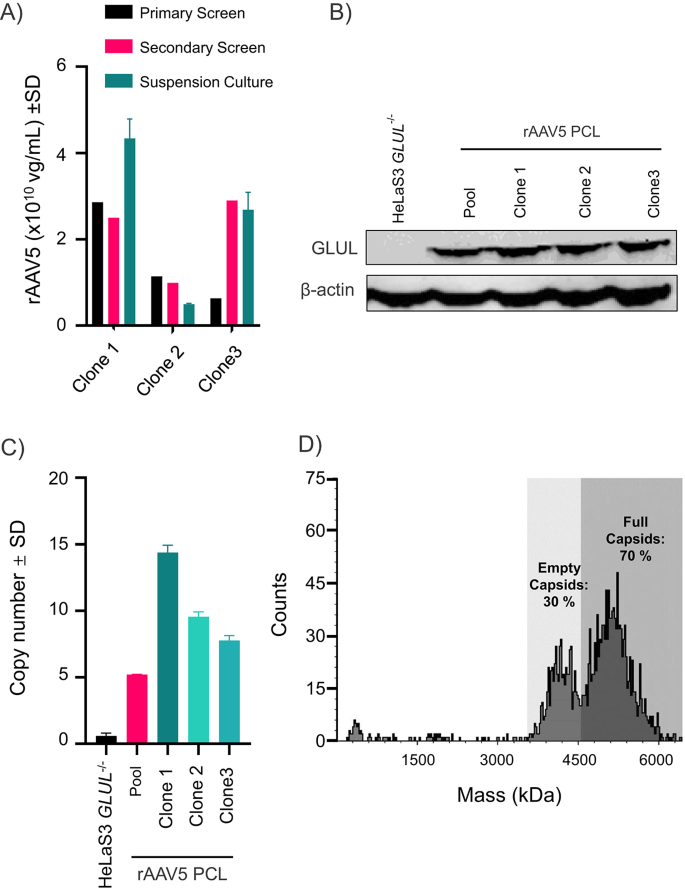

Characterization of rAAV5 production and GLUL expression in HeLaS3-derived cell lines. (A) Quantification of rAAV5 vector genome (vg) titers expressed as vg/mL for Clone 1, Clone 2, and Clone 3 across different amplification stages: primary screen, secondary screen (static culture), and suspension culture production. Data shown as mean ± SD (n=2) is presented for suspension culture conditions. (B) Western blot analysis of GLUL protein levels with β-actin as loading control across HeLaS3 GLUL-/-, transfected Pool, Clone 1, Clone 2, and Clone 3. Original blots are presented in Supplementary Figure 9. (C) Digital Droplet PCR analysis of rAAV5 plasmid copy number per cell for the same cell lines. Data shown as mean ± SD (n=2). (D) Mass photometry analysis of rAAV5 particles purified from Clone 1 production, showing empty capsids (~3.7 MDa) and full capsids (~4.7 MDa).

Full size image

We next evaluated GLUL expression levels by Western blot analysis (Fig. 4B). Compared to the parental HeLaS3 GLUL-/- line (GKO1), the transfected pool and all selected clones expressed detectable GLUL protein, confirming functional rescue of GLUL under selective pressure triggered by plasmid integration.

To evaluate transgene stability and integration, we quantified rAAV cassette copy number by droplet digital PCR (ddPCR) (Fig. 4C). All analyzed clones carried multiple copies per genome, which correlated with their respective productivity levels (Fig. 4A). Clone 1 displayed the highest copy number (14.38 ± 0.56 copies/genome), consistent with its higher rAAV yield. These values are in line with those recently reported for a comparable platform based on GLUL wild-type cells and an alternative selection strategy9.

Mass photometry of purified rAAV5 produced in PCL GLUL-/- cells (GKO1, 66 h post- infection) revealed two distinct populations, corresponding to molecular masses matching expected full and empty capsids (Fig. 4D). Full particles comprised ~70 % of the total, confirming efficient genome packaging and platform robustness. Moreover, these purified vectors were also shown to be infective, as evidenced by the presence of GFP-positive cells following transduction (Suppl. Fig. 5).

This selection workflow was also validated with the rAAV2 serotype (Suppl. Fig. 6). The GKO1 clone was transfected with a plasmid encoding rAAV2 carrying GFP as the transgene (Suppl. Fig. 4) and selected under glutamine-depleted conditions. After pool recovery (Suppl. Fig. 6A), cells were seeded as single cells in serum-free conditions. Following single-cell outgrowth, clones were tested for rAAV production (Suppl. Fig. 6B), and the best-producing clones were successfully adapted to suspension culture, achieving titers above 1010 vg/mL (Suppl. Fig. 6C). This confirms the versatility and robustness of the approach across different serotypes. Moreover, the rAAV2 vectors generated using this GS-/- based platform demonstrated the ability to transduce cells, as shown in Suppl. Fig. 7.

As rAAV production does not occur in growth medium, the HeLaS3 platform requires separation of cell expansion and vector manufacturing into two distinct phases using dedicated media: a growth medium to support proliferation and a production medium to enable vector generation7. To evaluate the role of Gln in this selection system in both phases, we assessed its impact on cell growth and rAAV productivity under supplemented and deprived conditions. In growth medium, cells cultured without Gln exhibited a population doubling time of 35 ± 0.6 h, whereas Gln supplementation significantly enhanced proliferation, reducing doubling time to 26 ± 0.7 h (Fig. 5A). Accordingly, Gln-supplemented medium was used for cell expansion and subsequent experiments.

Fig. 5
figure 5

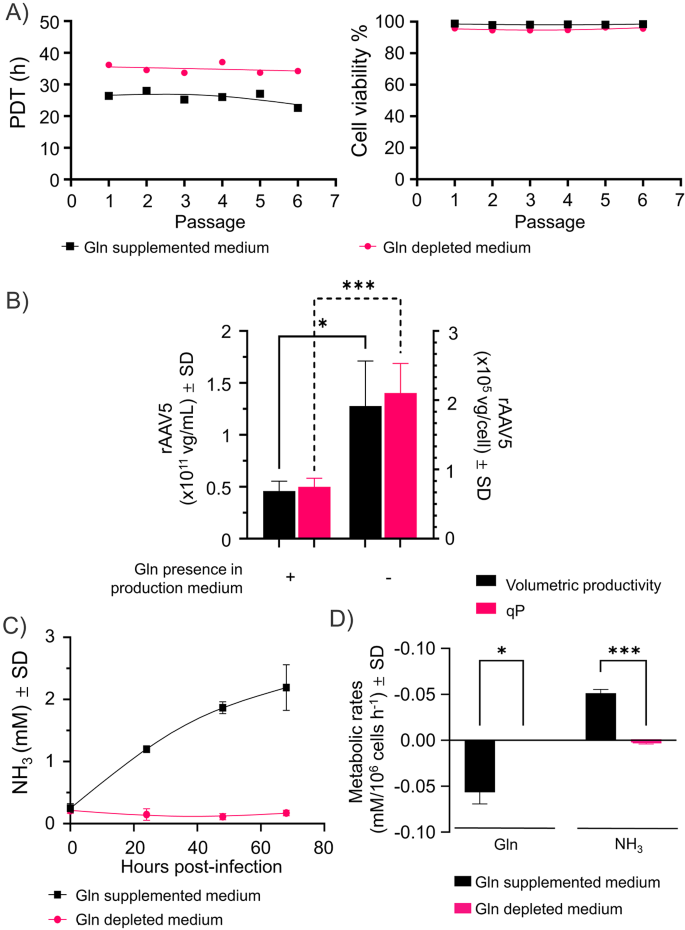

Optimization of rAAV5 production in HeLaS3-derived cell lines. (A) Population doubling time (PDT) and viability of rAAV5 producer Clone 1 grown in the presence (black square) or absence (pink circle) of Gln in growth media. Cells were cultured in standard serum-free conditions and subcultured every 3-4 days. (B) rAAV5 vector genome titers (vg/mL; black bars) and cell specific production yield (qP, vg/cell; pink bars) measured in culture cell lysates by qPCR of Clone 1 with production media either supplemented or depleted of Gln. Data shown as mean ± SD (n=4). Statistical analysis was performed using unpaired t-test with Welch’s correction (*: p < 0.05; ***: p < 0.001). (C) Representation of ammonia (NH3) concentration (mM) up to 66 h post wtAd5 infection, either in Gln-supplemented medium (black circles) or Gln-depleted (pink squares). Data shown as mean ± SD (n=4). (D) Gln and NH3 metabolic rates (mM/106 cells h-1) with production media either supplemented (black bars) or depleted (pink bars) in Gln. Data shown as mean ± SD (n=3). Statistical analysis was performed using unpaired t-test with Welch’s correction (*: p < 0.05; ***: p < 0.001).

Full size image

Next, we tested rAAV productivity in Gln-deprived and supplemented media. Notably, rAAV5 production was markedly higher under Gln-depleted conditions, yielding an almost three-fold increase in volumetric productivity compared to Gln-supplemented cultures (1.3×1011 ± 0.4×1011 vg/mL vs. 0.5×1011 ± 0.09×1011 vg/mL; Fig. 5B). qP was also enhanced, reaching 2.1×105 ± 0.4×105 vg/cell in Gln-deprived conditions versus 0.7×105 ± 0.1×105 vg/cell with Gln. Moreover, ammonia (NH3) accumulation, a by-product of Gln metabolism, was substantially reduced in Gln-deprived cultures (0.17 ± 0.05 mM vs. 2.19 ± 0.37 mM in Gln-supplemented conditions; Fig. 5C), with negligible production rates in Gln-depleted conditions (-0.0022 ± 0.0019 mM/106 cells·h-1 vs. 0.0511 ± 0.0042 mM/106 cells·h-1; Fig. 5D). These findings suggest that reduced ammonia accumulation contributes to enhanced rAAV productivity under Gln-deprived conditions.

Discussion

The manufacturing of recombinant rAAV vectors remains a critical bottleneck in gene therapy development, primarily due to high production costs and the limited scalability of transient transfection methods currently used for production. Although transient transfection in HEK293 cells dominates industrial practice, its dependence on GMP-grade plasmids and susceptibility to batch-to-batch variability significantly increases cost and complexity. In contrast, stable producer cell lines offer a promising alternative, providing improved scalability and cost-effectiveness. However, their widespread adoption has been hindered by extended development timelines, which remains a major barrier to establishing this approach as a viable solution for the future of gene therapy4,13.

In this study, we adapted the GS-based selection system - widely used in CHO cell platforms for monoclonal antibody production - for the HeLaS3-based rAAV production platform. HeLaS3 based production platform were selected for this study due to its robustness and recent advances in upstream and downstream processing7,14. The approach here presented addresses a key limitation of traditional dual-selection workflows used in the HeLaS3 platform, which typically require 6–8 months for PCL generation7,8. By enabling direct selection and single-cell cloning in suspension cultures, this approach reduced the timeline to approximately two months, aligning with industry efforts to accelerate cell line development.

A critical factor in GS-based selection is the Gln metabolism. Consistent with previous reports, Gln deprivation initially caused growth arrest and viability loss in wild-type HeLaS3 cells15,16. However, adaptation via upregulation of endogenous GLUL compromised selection stringency, necessitating GLUL knockout to enforce Gln auxotrophy (Suppl. Fig. 2 and Suppl. Fig. 3). This strategy mirrors previous findings in HEK293 and CHO systems, where GS knockout significantly improved selection efficiency10,17. Our GLUL knockout clones exhibited strict Gln dependence, validating their suitability as host cells for rAAV production.

Following selection, engineered cells expressing exogenous GLUL and rAAV components achieved high titers (>1011 vg/mL) under serum-free suspension conditions. Notably, while Gln-free media were essential during selection, supplementation post-selection improved cell growth and viability, pointing to a limitation in the ability to produce enough Gln for cell’s metabolic needs. Interestingly, during the production phase, Gln-free conditions enhanced rAAV yields. We hypothesize that (1) reduced ammonia accumulation - known to negatively impact rAAV quality at concentrations >1 mM - and (2) potential transcriptional coupling between GLUL and rAAV genes may contribute to this effect, possibly enhancing Rep gene amplification8.

This platform consistently delivers high-quality rAAV particles with approximately 70 % full capsids, significantly outperforming conventional transient transfection-based production systems, which typically achieve only 10–30 % full capsids depending on the serotype4. This elevated proportion of full particles not only enhances overall product quality but also represents a substantial advantage for DSP; higher full-to-empty ratios reduce the burden on purification steps, improve process efficiency, and facilitate compliance with stringent regulatory expectations for product consistency and potency. Furthermore, its applicability to different serotypes (rAAV2 and rAAV5) underscores its versatility. These results align with recent reports advocating for stable cell line platforms as a scalable alternative to transient systems, which remain constrained by cost and variability18,19.

In conclusion, this GS-based selection strategy significantly accelerates PCL development, reducing current timelines from 6–8 months to approximately 2 months, while delivering high titers and enhanced product quality. Historically, key opinion leaders in the gene therapy field have faced a strategic dilemma at project inception: whether to rely on transient transfection for speed or invest in generating a PCL for long-term scalability and cost efficiency. Too often, the transient route is selected for rapid entry into clinical trials, only to encounter a manufacturing bottleneck in late-stage development—where capacity constraints, variability, and DSP challenges jeopardize readiness for process performance qualification and biologics license application submissions19,20,21. At that stage, pivoting to a PCL is typically impractical because it triggers major chemistry, manufacturing, and controls (CMC) changes, comparability risks, and timeline resets. By compressing PCL generation to ~2 months without compromising quality, our approach resolves this conundrum: enabling early adoption of stable PCLs, de-risking late-stage manufacturing, streamlining DSP with higher full capsid content, and maintaining a seamless path to pivotal supply and commercialization.

Future work will focus on optimizing upstream processes of this GS-based platform by leveraging knowledge from established CHO cell processes and GS-based selection systems implemented for other biologics production platforms. This includes media or feed optimization to enhance productivity and robustness. Additionally, efforts will be directed at expanding the platform to different serotypes and therapeutic cargos, while ensuring the integrity of the packaged rAAV genome and confirming the absence of host-related impurities (possibly co-packaged). Finally, the platform will be scaled to perfusion bioreactors to enable continuous manufacturing—an approach increasingly recognized as critical for meeting clinical demand19.

Materials and methods

Cell culture

HeLaS3 cell line was acquired from ATCC (CCL-2.2) and maintained in adherent culture at 37 ºC and in a 5 % CO2 atmosphere, in Dulbecco’s Modified Eagle’s Medium (DMEM) (10‐013‐CV, Corning) supplemented with 10 % Fetal Bovine Serum (FBS) (1027016, Gibco). Cells were subcultured every 3 to 4 days, at approximately 80 % confluency. HeLaS3 cell line and derived clones were maintained in suspension culture in EX-CELL HeLa Serum-Free Medium (14591 C, Sigma-Aldrich) containing 6 mM L-glutamine, at 37 ºC in a 5 % CO2 atmosphere under agitation at 125 rpm (25 mm orbital diameter). Cells were subcultured every 3 to 4 days at a cell concentration of 0.3×106 cell/mL. PDT was calculated by the equation: PDT (ℎ) = ln (2)/µ where µ = (ln [cell concentration 2] – ln [cell concentration 1])/(time of measurement 2 (h)/time of measurement 1(h)).

Generation of GLUL edited cell lines

To test GLUL-based selection system, GLUL gene edited cells were generated using CRISPR-Cas9. The insertion of the CRISPR-Cas9 protein and the sgRNA was performed by nucleofection, using the Lonza 4D-Nucleofector® with the SE Cell Line Kit L (LONV4XC-1012, Lonza). A total of 8×105 HeLaS3 cells were centrifuged (90 g, 10 min) and resuspended in 10 µL RNP solution (2 µg/µL Cas9-GFP (ALT-R S. p. Cas9-GFP V3; 10008161, IDT) and 24 nM sgRNA (5’ - AAAUUCCACUCAGGCAACUC - 3’) + 30 µL nucleofection solution. Cells were nucleofected with program DS-150 and seeded in 1 mL of DMEM + 10 % FBS + 4 mM L-glutamine. Five days after editing the GLUL gene, cells were seeded at a concentration of 1 cell/well in a 96-well plate in DMEM + 10 % FBS + 4 mM L-glutamine. To guarantee clonality, the growth was followed by imaging the wells at a 4x magnification using the cell imaging multimode reader CytationTM 3 (BioTek), at days 0 (1 h after plating), 3 and 10 after plating.

CRISPR-Cas9 editing efficiency on the GLUL gene

CRISPR-Cas9 editing efficiency assay was performed based on the T7 Endonuclease I-based mutation detection method with the EnGen® Mutation Detection Kit (NEB #E3321) following manufacturer´s protocol. Fragments were resolved on a 4-20 % polyacrylamide TBE gel (EC62255BOX, Invitrogen) in a 0.5× TBE buffer (Novex). The percentage of gene modification was estimated by the ratio between the edited and wild-type bands, previously normalized by respective molecular weight.

Western blot

Cell pellets for western blot were homogenized in lysis buffer consisting of 4x NuPAGE™ LDS Sample Buffer (NP0007, Invitrogen) and 10x NuPAGE™ Sample Reducing Agent (NP0004, Invitrogen) diluted in molecular grade water and incubated at 70 ºC for 10 min. Samples were run on a 4-12 % polyacrylamide gel (NP0321BOX, Invitrogen). Gel was transferred to a nitrocellulose membrane. The membrane was incubated with anti-GLUL (1:5000, ab7359, abcam) and anti-actin (1:5000, A5441, Sigma) antibodies. The secondary antibodies used were Anti-rabbit, (NA9341, Cytiva), for GLUL detection, and Anti-mouse (NA931-1ML, Cytiva), for β-actin detection, diluted 1:50000. Membranes were imaged using iBright (Invitrogen).

Digital droplet PCR quantification of copy number

The ddPCR reaction was performed with ddPCR Supermix for Probes (No dUTP) (1863024, Bio-Rad), primers (900 nM final concentration) for the albumin gene (Fw: 5’-GCTGTGAAAAACCTCTGTTGG-3’; Rv: 5’-GACATCCTTTGCCTCAGCAT-3’) and the BGH poly A motif (Fw: 5’-TCTAGTTGCCAGCCATCTGTTGT-3’; 5’-TGGGAGTGGCACCTTCCA–3’), as a proxy plasmid insertion, and probes (250 nM final concentration) for the same sequences (5’-/5-HEX/AGTGGAAAA/ZEN/TGATGAGATGCCTGCT/3/AbkFQ/-3’ and 5’-/56-FAM/ TCCCCCGTG/ZEN/CCTTCCTTGACC/3/AbkFQ/-3’, respectively). ddPCR was performed using the QX200 AutoDG Droplet Digital PCR System (Bio-rad).

Establishment of rAAV producer cell lines

HeLaS3 cells with GLUL gene knock-out were nucleofected with the rAAV-GLUL plasmid, as previously published7. Cells were initially cultured for 3 days in EX-CELL HeLa medium supplemented with glutamine. Following this period, the medium was replaced with EX-CELL HeLa serum-free medium lacking glutamine. Cells were seeded at a density of 0.5 × 10⁶ cells/mL and subcultured every 3–4 days by complete medium exchange. After three weeks, selected cells were tested for rAAV production as described below and seeded at 3 cell/well in serum-free medium with a single-cell growth supplement to generate single-cell clones as described previously9. Single-cell clones were further tested for rAAV production as described previously7.

rAAV production and titration

To test rAAV production in suspension, cells were seeded at 0.5×106 cell/mL in serum-free medium diluted in DMEM, with supplementation and infected with wtAd5 at an MOI of 1. Cells were maintained for 3 days at 37 ºC and in a 5 % CO2 atmosphere under agitation at 125 rpm, in 25 mm orbital diameter. Cells were harvested for rAAV quantification according to previously published protocol7.

rAAV5 purification and full-to-empty capsid quantification

Producer cells were harvested by centrifugation at 300 g for 5 min and resuspended in 1 mL of lysis buffer (50 mM Tris-HCl, pH 8.0; 20 mM MgCl₂; 1% Tween-20). Benzonase was added at 150 U/mL, and the suspension was incubated for 1.5 h at 37 °C to degrade nucleic acids. Subsequently, NaCl was added to a final concentration of 200 mM, followed by a 15 min incubation at 37 °C. The lysate was clarified by centrifugation at 4,00 g for 5 min and filtration through a 0.45 μm membrane.

Purification of rAAV5 particles was performed using PhyTip™ columns according to the manufacturer’s protocol, with minor adjustments. Columns were equilibrated with 50 mM Tris (pH 8.0), 350 mM NaCl, and 0.001 % Pluronic F-68, followed by six capture cycles of the sample. Washing was carried out in two steps: first with 50 mM Tris (pH 8.0), 1 M NaCl, and 0.001 % Pluronic, and then with 50 mM Tris (pH 8.0) containing 0.001 % Pluronic. Elution was performed in four cycles using 50 mM citric acid (pH 2.5) with 0.001 % Pluronic. The eluate (approximately 60 μL) was immediately neutralized with Tris buffer (pH 9.0) at a 1:5 dilution. The ratio of full to empty capsids was determined by mass photometry using a SamuxMP instrument (Refeyn).

rAAV infectious units quantification

rAAV infectious titer was determined as described in Fernandes et al. 202522 with some modifications. HeLa RC32 were plated in 96 well plates at a cell concentration of 15,000 cells/well in DMEM + 10 % FBS + 4 mM L Glutamine and incubated overnight at 37 ºC in a 5 % CO2 atmosphere. Cells were infected at an rAAV MOI of 6.67x104 vg/cell in DMEM + 1 % FBS + 4 mM L-glutamine containing 3.20x108 wtAd5 DNAse resistant genomes/mL. Cells were infected by total medium exchange and incubated for 2 h. Subsequently, the culture medium was diluted 1:2 with DMEM + 10 % FBS + 4 mM L Glutamine. Images were acquired at 48 h post-infection with 10x magnification using MICA microscope (Leica).
