Fig. 9

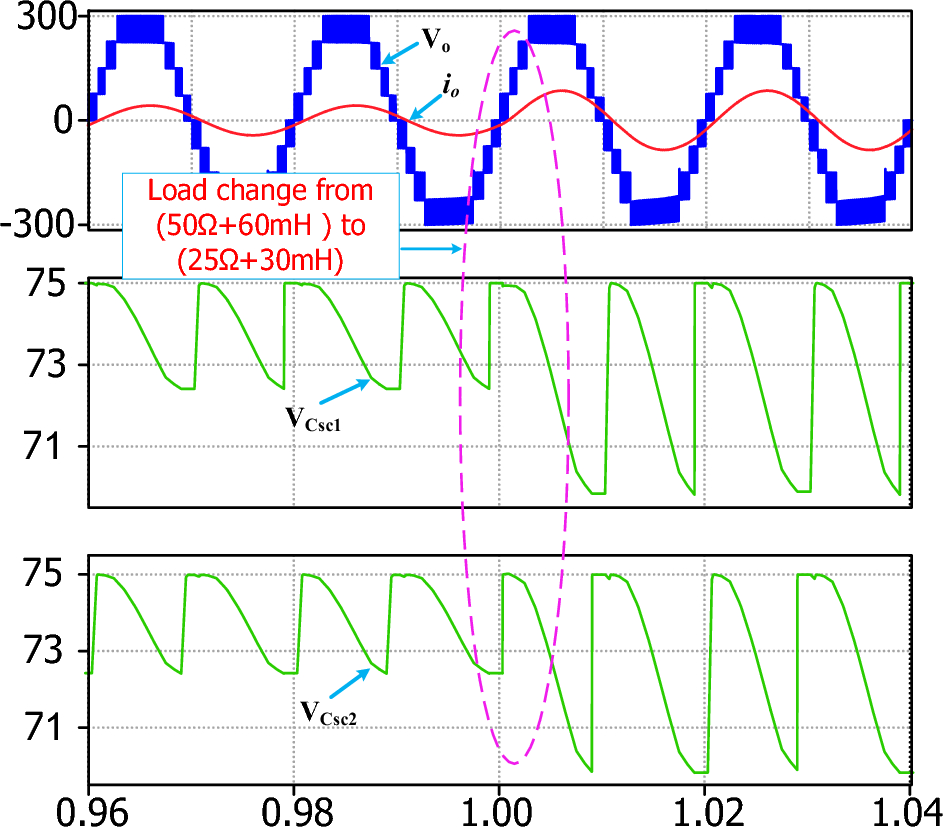

Waveforms of output voltage (vo), load current (io), voltage across the switched capacitors (vCsc1 and vCsc2) when step change in load demand from (50 Ω + 80mH) to (25 Ω + 40 mH).
Fig. 9 | Scientific Reports
Waveforms of output voltage (vo), load current (io), voltage across the switched capacitors (vCsc1 and vCsc2) when step change in load demand from (50 Ω + 80mH) to (25 Ω + 40 mH).
