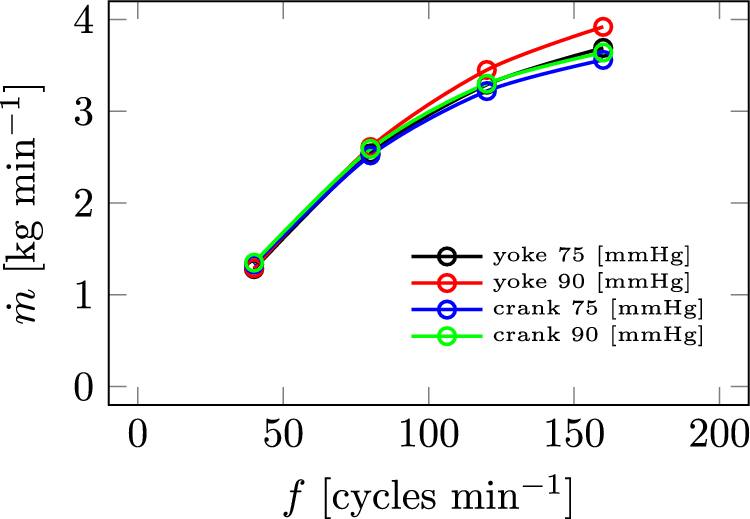

Fig. 13

Flow rate \(\dot{m}\) in the hydraulic system as a function of the frequency f of the suction-discharge device when crank or yoke mechanism are used in the drive for different pressures in the pneumatic system with the piston retracted.
