Fig. 1

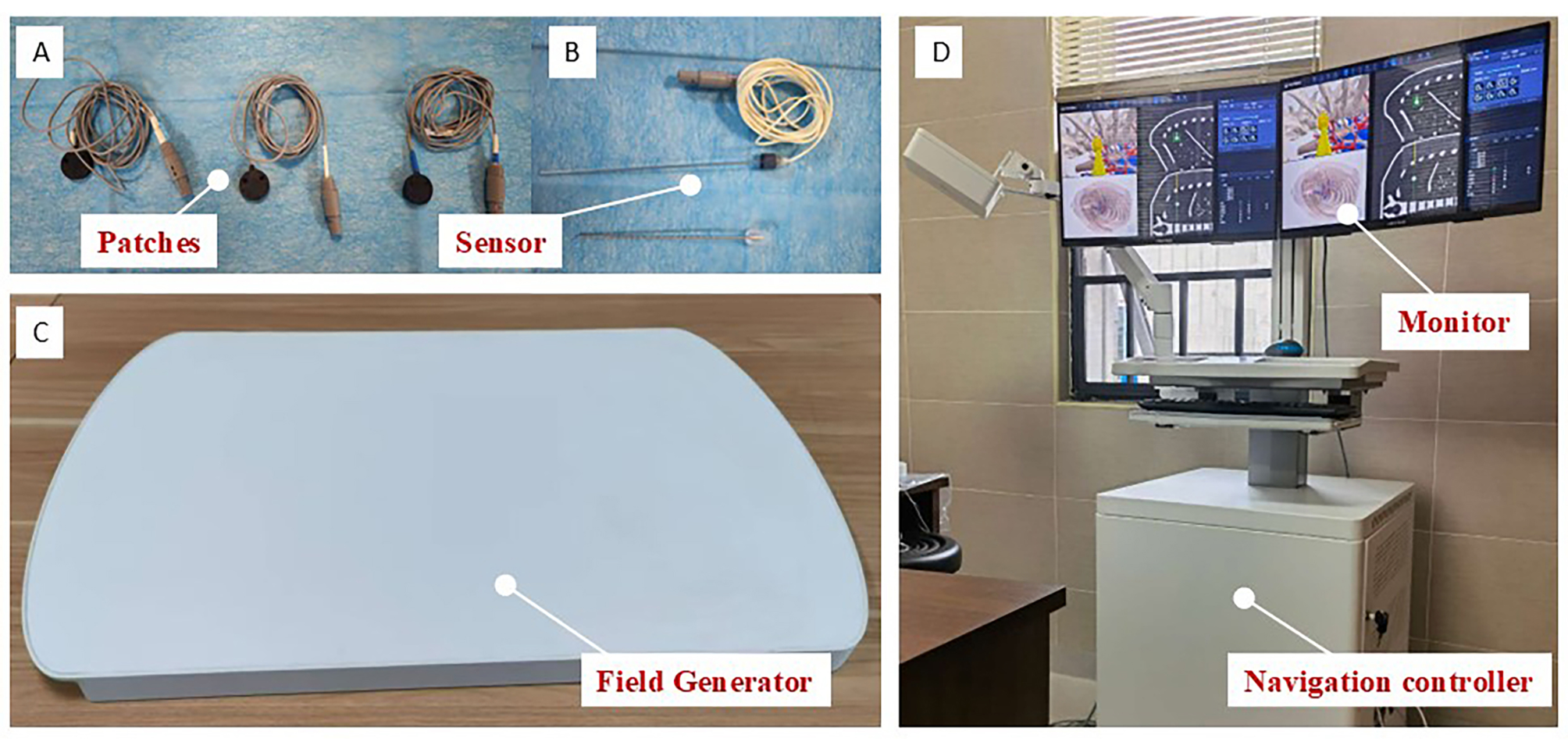

The components of the navigation system include: 3 patches (A) for spatial registration, 1 sensor (B) for tracking the position of the needle within the magnetic field, 1 field generator (C) for creating the magnetic field, and a navigation controller and monitor (D).
