From: Analytical model for helical particle array assessment for EMI shielding applications

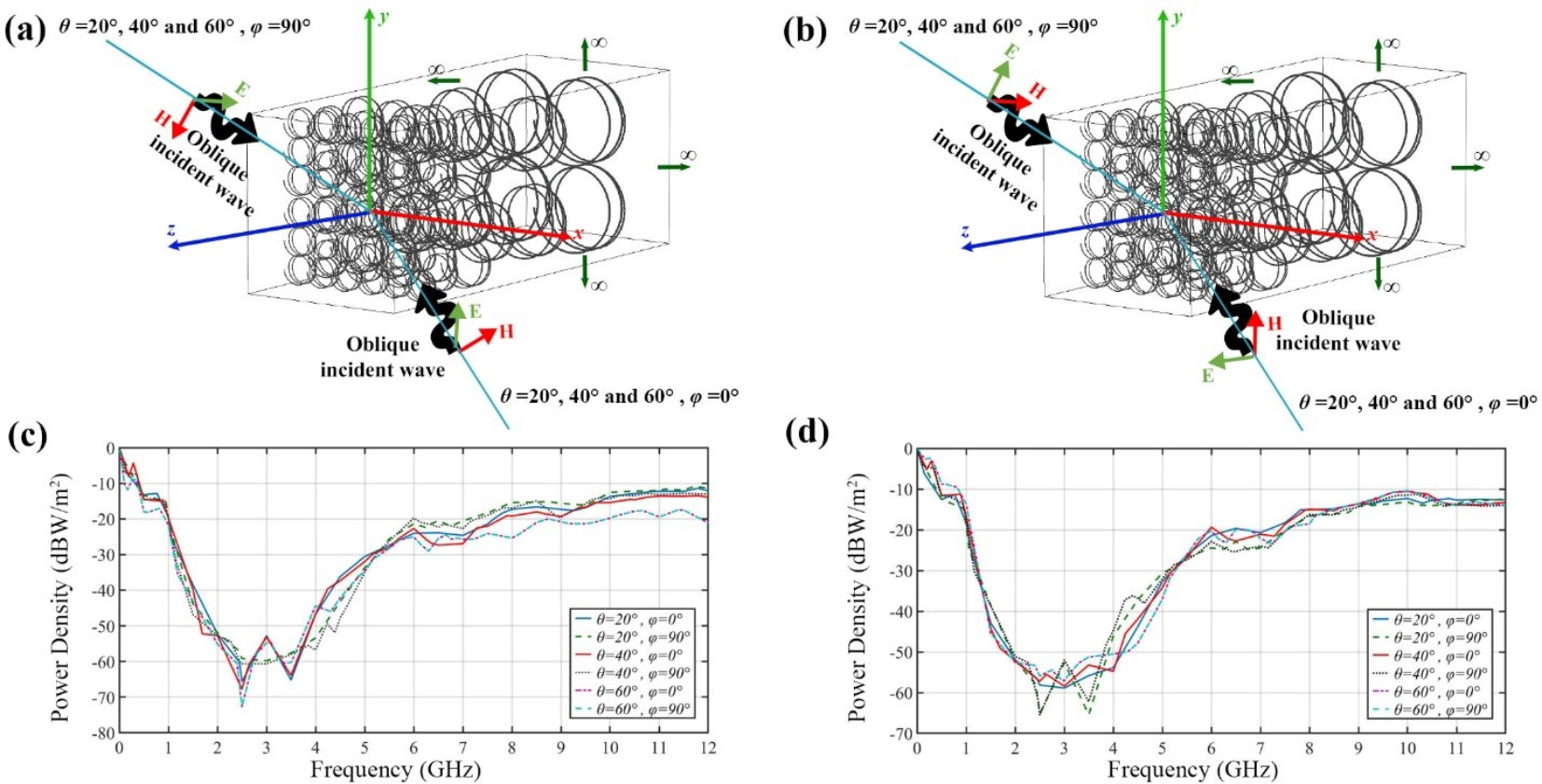

(a) Perpendicular (horizontal or E) polarization incident at oblique angles on the slab interface. (b) Parallel (vertical or H) polarization incident at oblique angles on the slab interface. (c) The time-averaged power density of the transmitted wave through the helical particle 6-layer array, whose unit cell is shown in Fig. 1, for the E polarization incidence. (d) The time-averaged power density of the transmitted wave through the helical particle 6-layer array, whose unit cell is shown in Fig. 1, for the H polarization incidence. The total time-averaged power density of the incident wave is assumed to be 1 W/m2 = 0 dBW/m2.
