Fig. 10
From: Mechanical response of elevated bridge piles to adjacent deep excavation

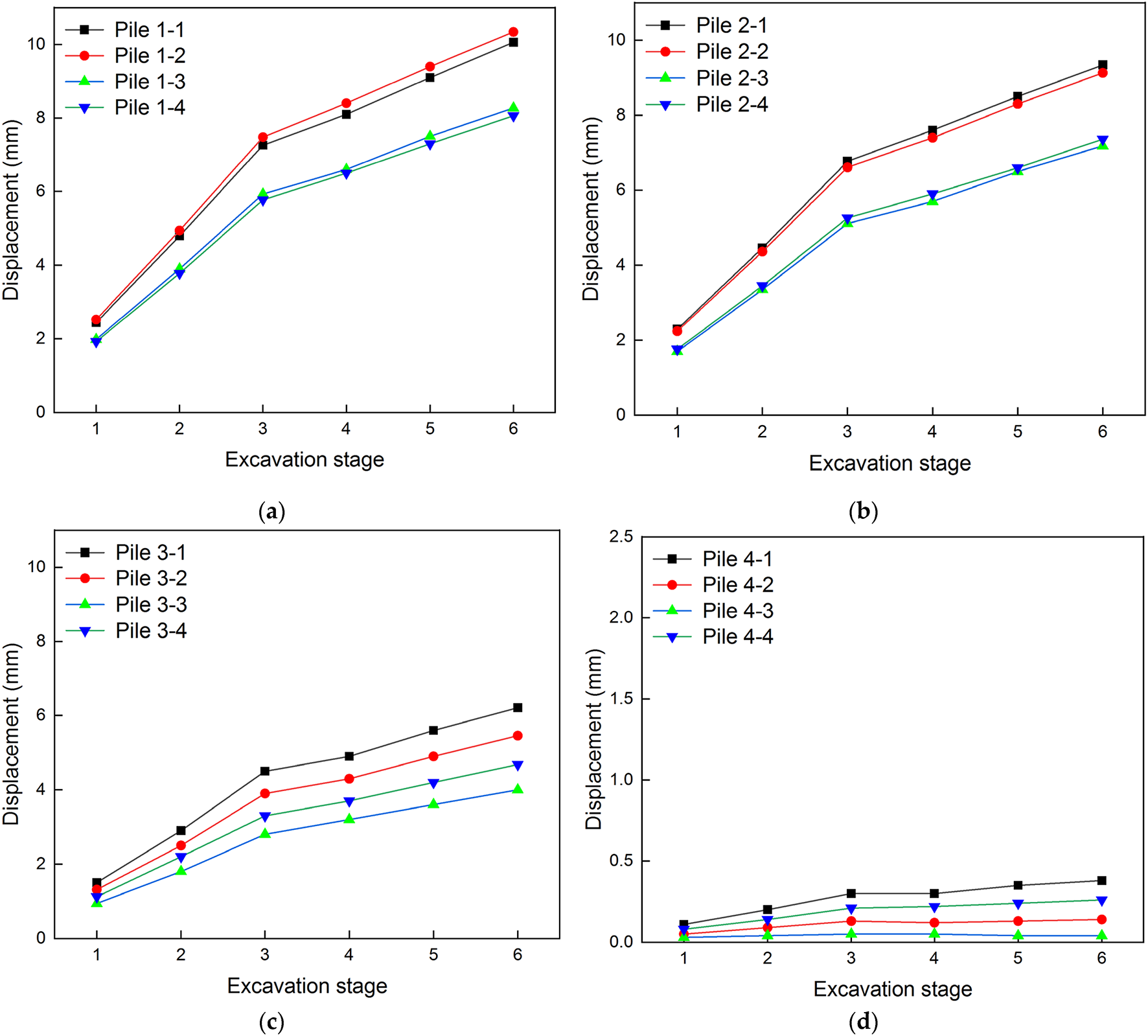

Comparison diagram of maximum pile displacement at different excavation stages (Z direction). (a)piles 1, (b)piles 2, (c)piles 3, (d)piles 4.
