From: Mechanical response of elevated bridge piles to adjacent deep excavation

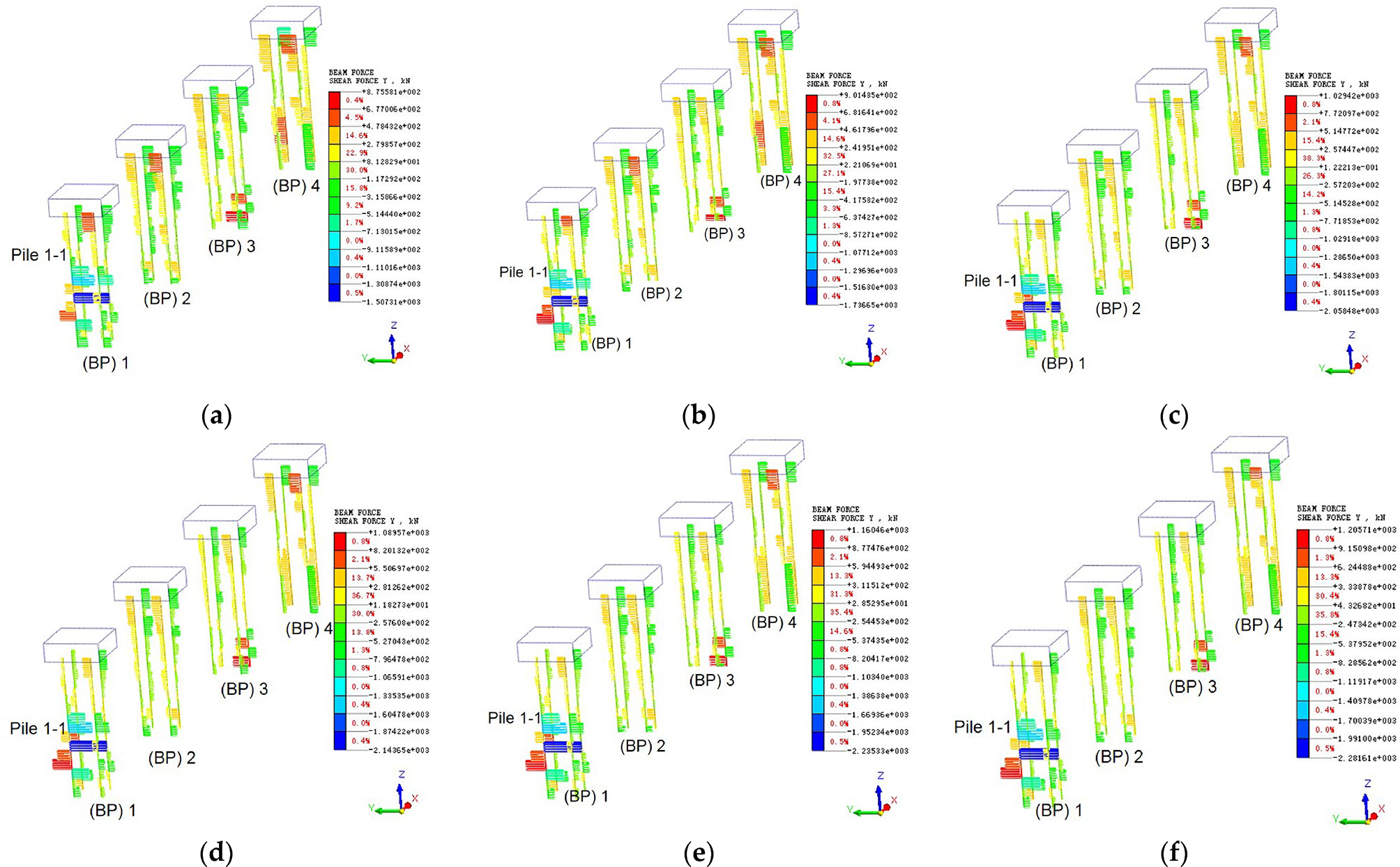

Shear cloud map of piles at different excavation stages. (a)Excavation stage 1, (b)Excavation stage 2, (c)Excavation stage 3, (d)Excavation stage 4, (e)Excavation stage 5, (f)Excavation stage 6.
