Fig. 1
From: Development and validation of a risk prediction model for caesarean delivery among multiparous women

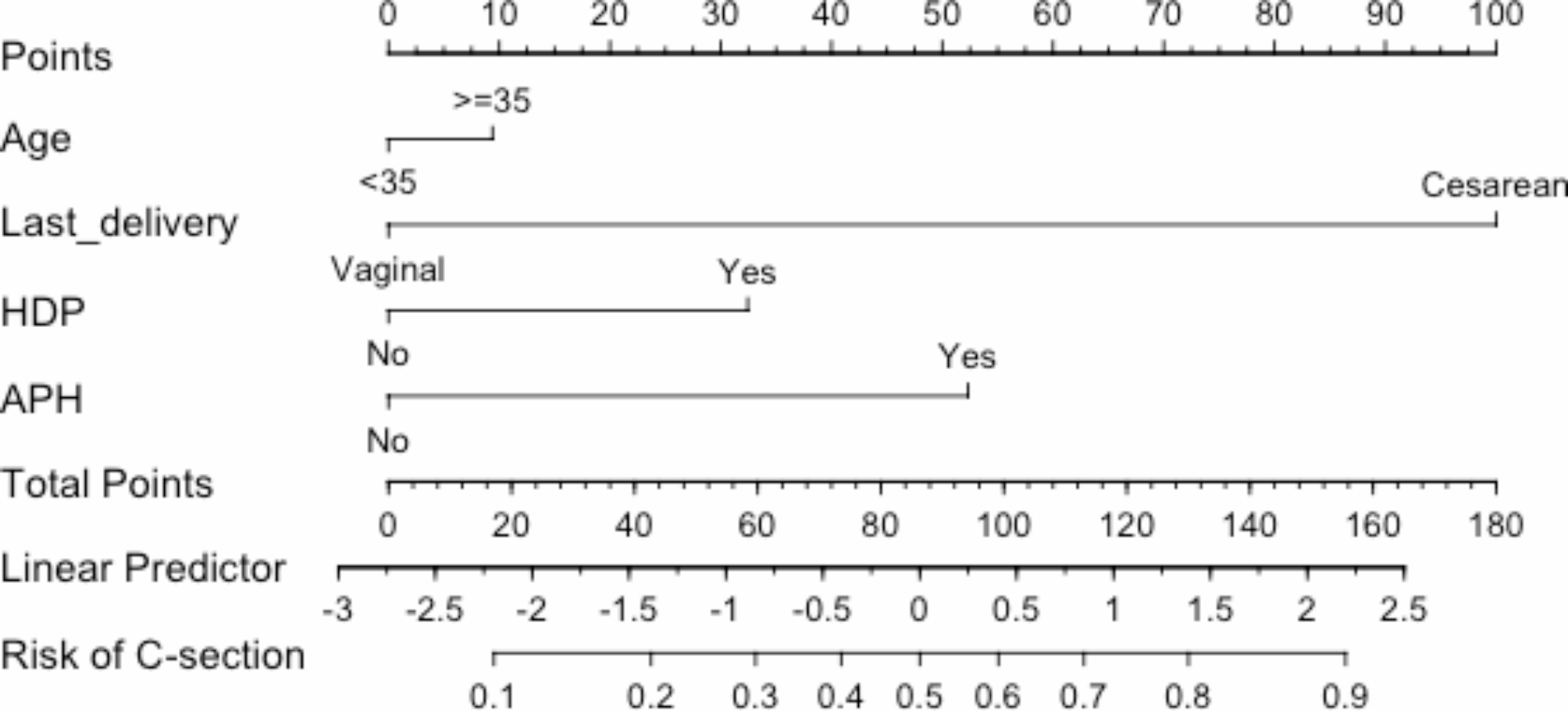

Nomogram used to predict the risk of caesarean delivery (CD) for multiparous (MP) women at admission to labour. For individual women, points are assigned to each predictor using the point axis at the top of the figure, and a total score is obtained. The total points correspond to the predicted probability of CD for MP women. For example, for a woman aged > = 35 years (12 points) who had prior CD (100 points) with HDP (34 points) but without APH (0 points), the calculated total point was 146, which corresponded to 88% risk of CD at admission.
