Fig. 1
From: Polymorphism and magnetism in a Kitaev honeycomb cobaltate KCoAsO4

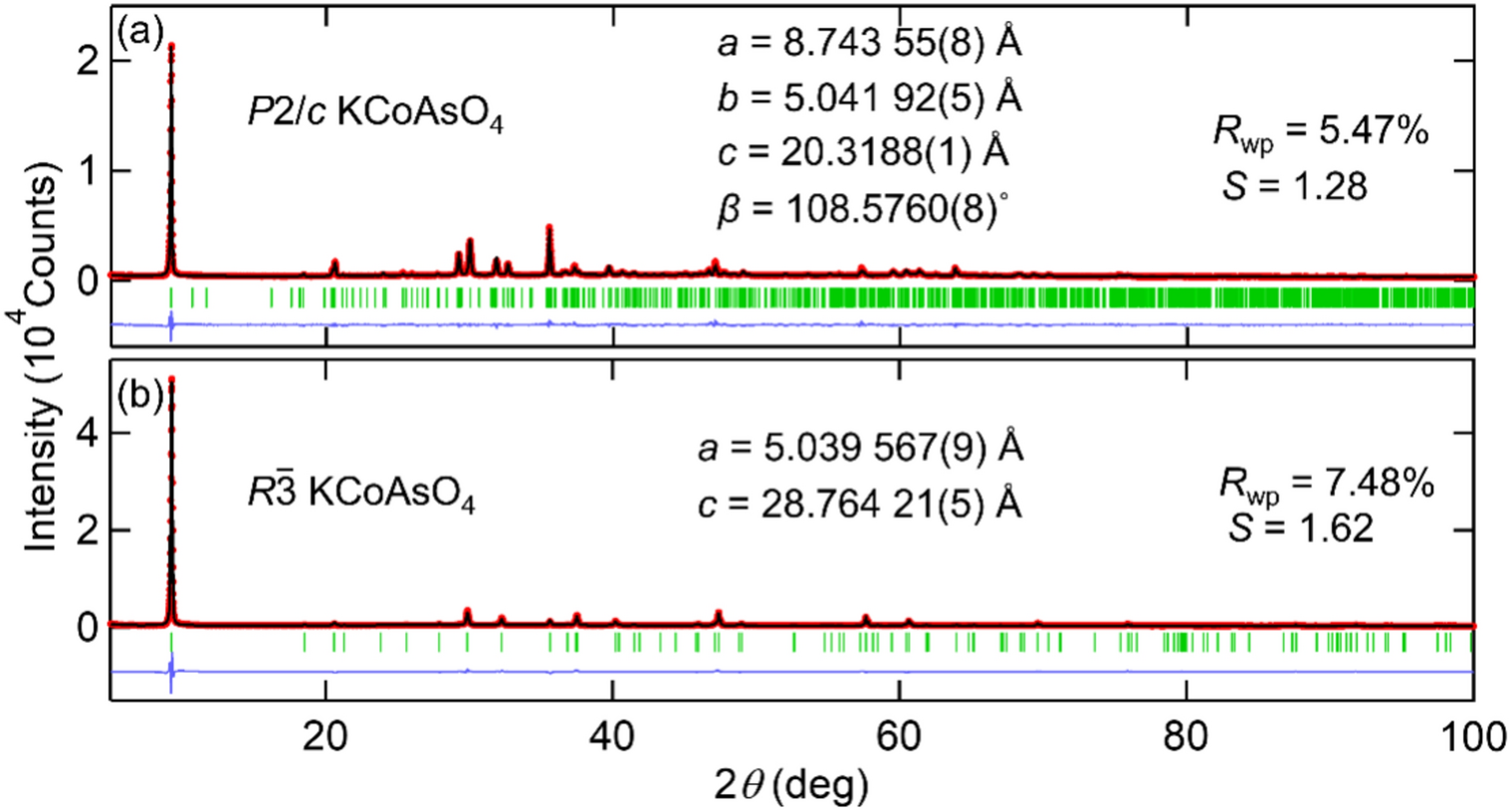

The result of Rietveld refinement of (a) P2/c-type KCoAsO4 and (b) R\(\overline{3 }\)-type KCoAsO4. The observed intensities (red circles), calculated intensities (black line), and their differences (blue curve at the bottom) are shown. The green vertical bars indicate the positions of Bragg reflections, respectively.
