Fig. 11
From: A remote monitoring approach for coastal engineering projects
Source: DGCM.

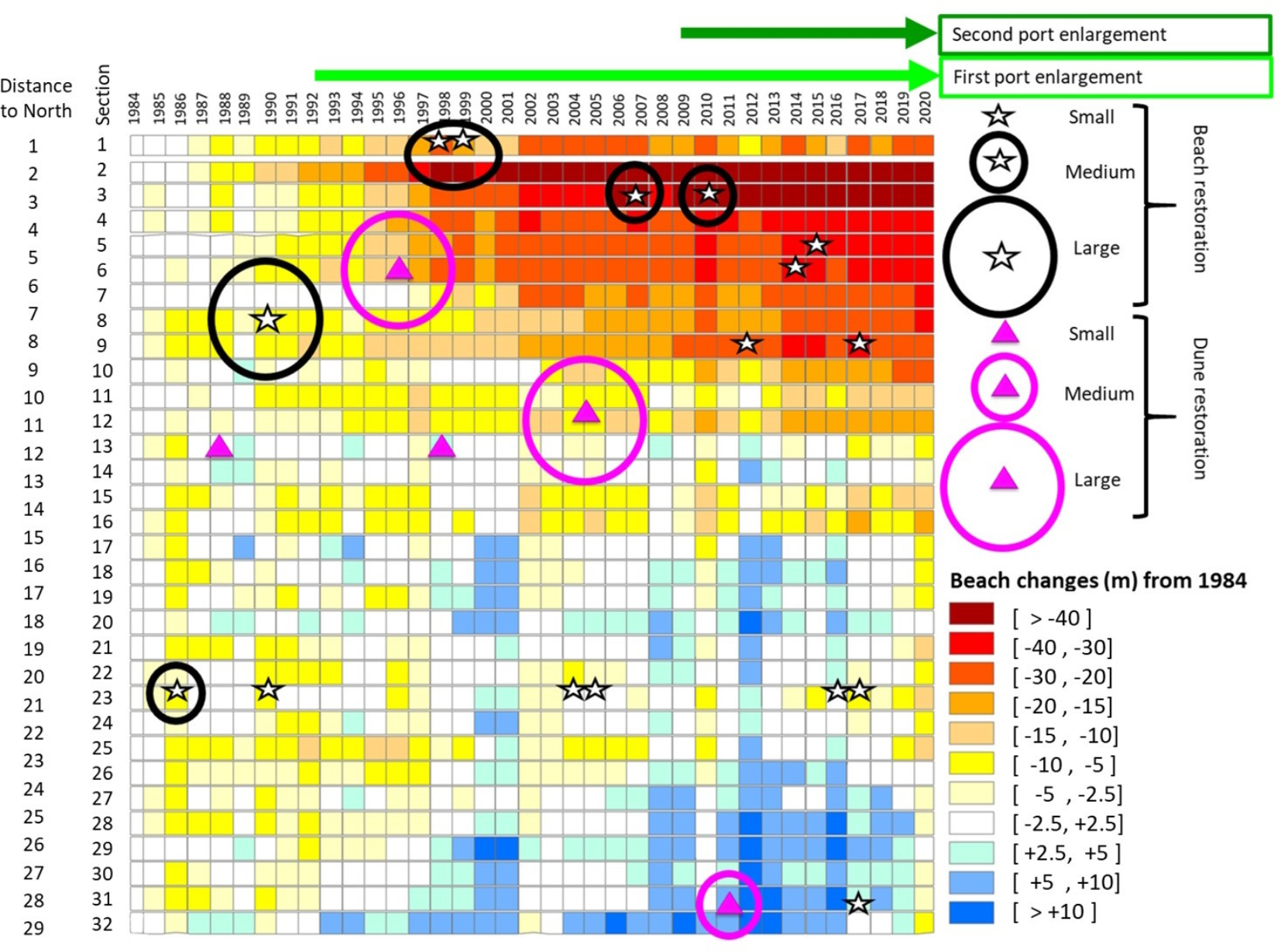

STM of the changes in beach width with respect to the average beach width in 1984. The annual beach width average was defined for the 32 sections of 900 m length composing the study site. All the beach width measurements (for each 60 m segment and 1040 analysed dates) were considered. Seaward (landward) shifts are shown in shades of blue (red). The distribution of artificial sand inputs is presented in time and space, differentiating between direct inputs to the beach and to the dunes.
