From: CFD-DEM simulation of the motion law of magnetic flocs during waste slurry disposal in shield tunnel

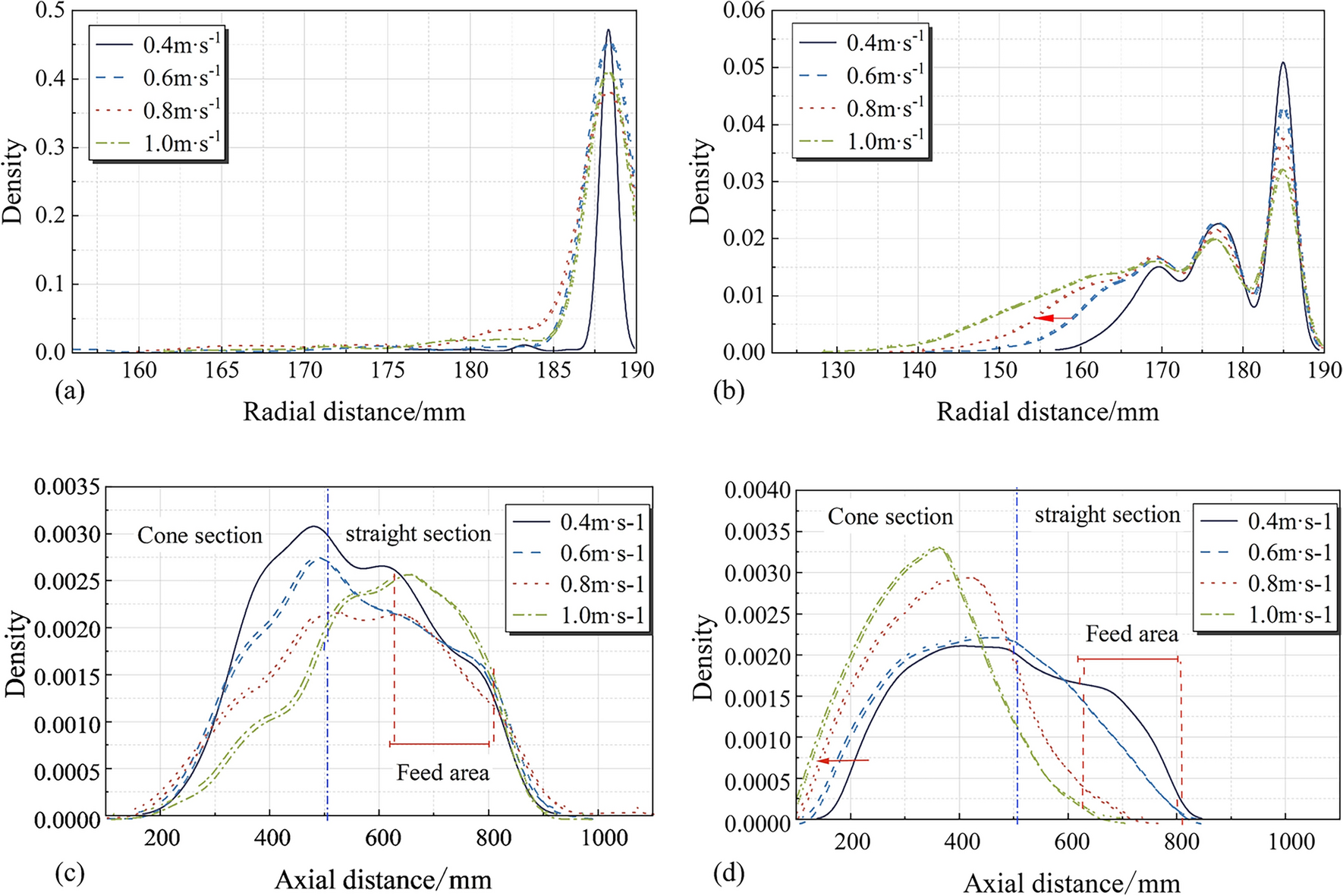

Distribution behavior of particle phases at different feed rates: (a) Radial distribution of magnetic seeds in the straight section; (b) Radial distribution of floc particles in the straight section; (c) Axial distribution of magnetic seeds; (d) Axial distribution of floc particles.
