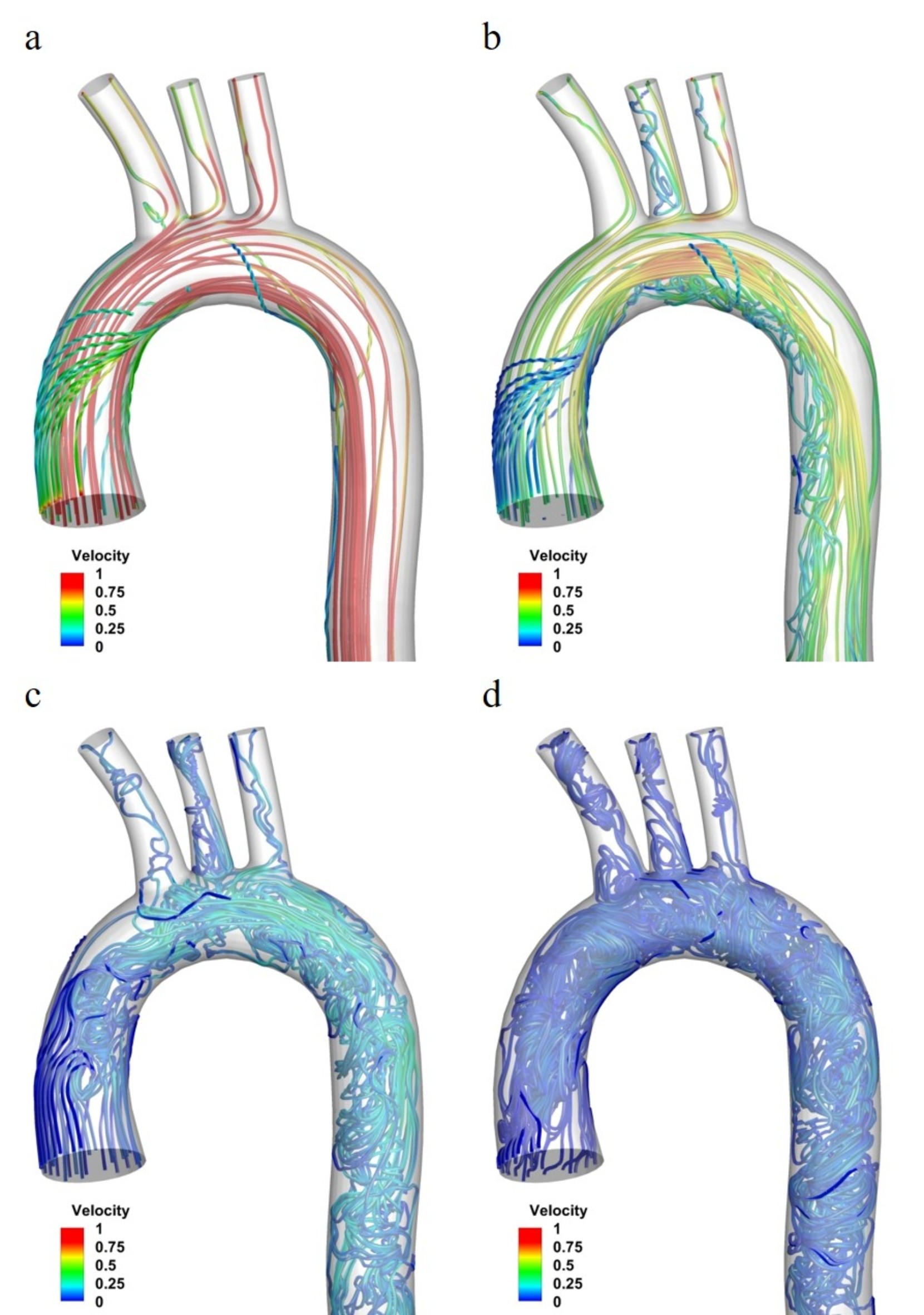

Fig. 7
From: Characteristics of transition to turbulence in a healthy thoracic aorta using large eddy simulation
Streamlines at various flow phases: (a) near peak systole (t = 0.102 s), (b) mid-deceleration phase (t = 0.302 s), (c) end-systole (t = 0.502 s), and (d) diastole (t = 0.702 s). Refer to Fig. 3 for the corresponding time points.
