Fig. 8 | Scientific Reports

Fig. 8

From: A method for monitoring three dimensional surface deformation in mining areas combining SBAS-InSAR, GNSS and probability integral method

Fig. 8

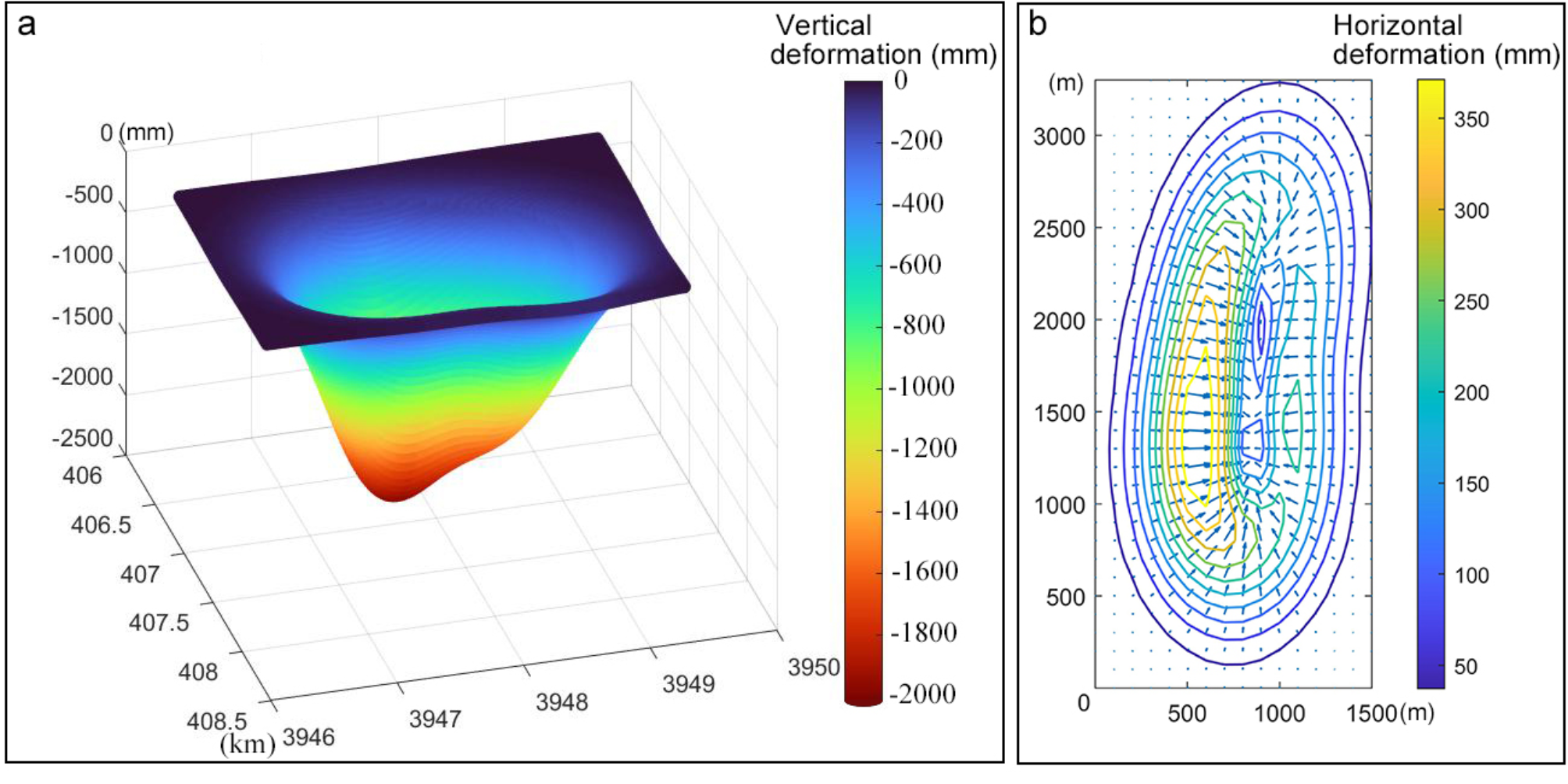

Three-dimensional deformation visualization. (a) represents the three-dimensional visualization of vertical deformation obtained by this method, and (b) represents the direction and contours of horizontal deformation, where the length of the arrows indicates the magnitude of deformation and the direction of the arrows indicates the direction of deformation.
