Fig. 6

From: Deformation behavior of additive manufactured 316 L stainless steel using in situ neutron diffraction

Fig. 6

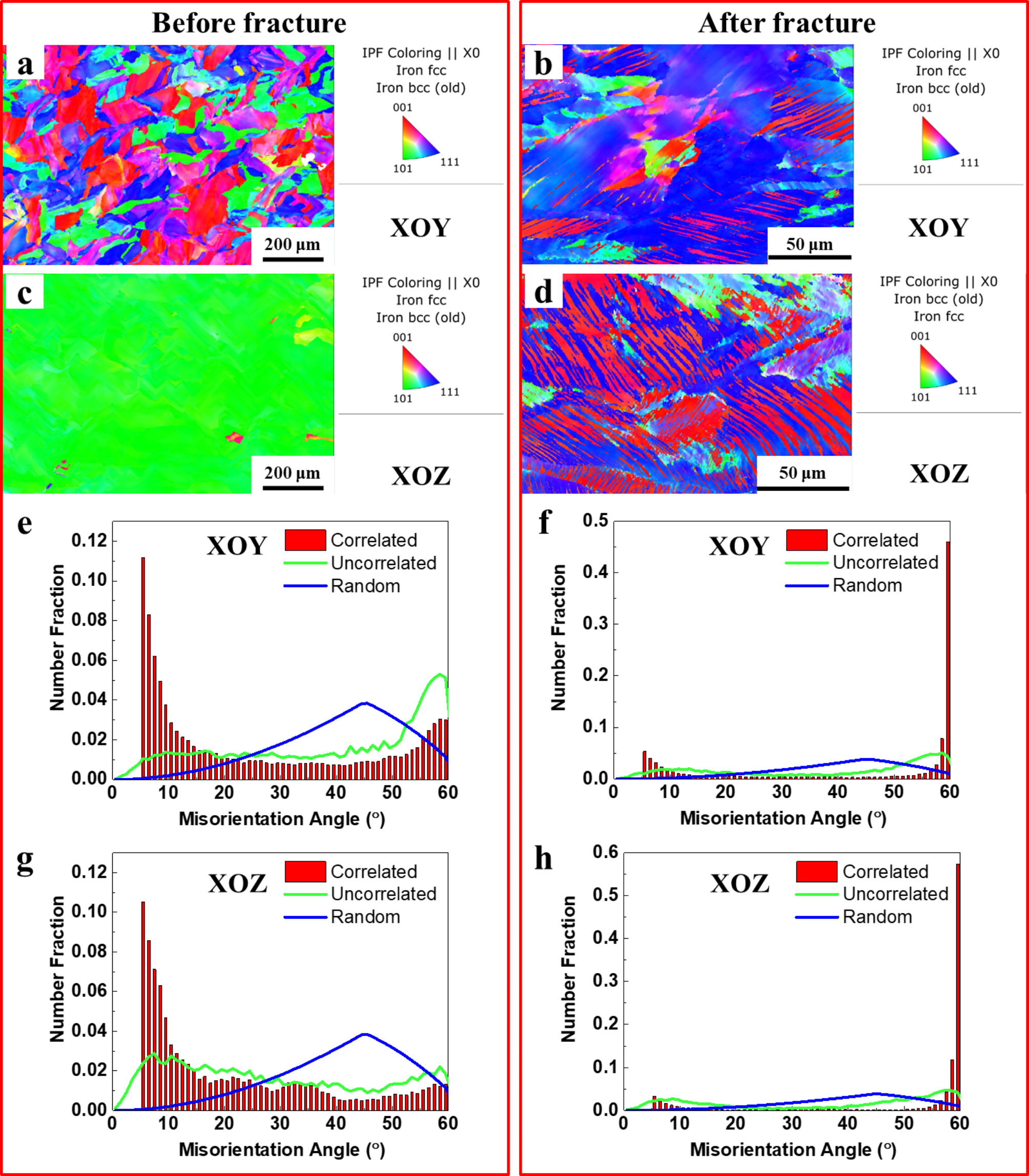

IPF maps and misorientation distribution of SLM316LSS samples before and after fracture at the respective direction: (a,b,e,f) XOY and (c,d,g,h) XOZ. “Correlated” signifies the misorientation calculated based on neighboring points. ‘‘Uncorrelated’’ implies the misorientation calculated according to random points in the scan, and ‘‘Random’’ represents the theoretically calculated using random misorientation distribution of a purely random texture, respectively.
