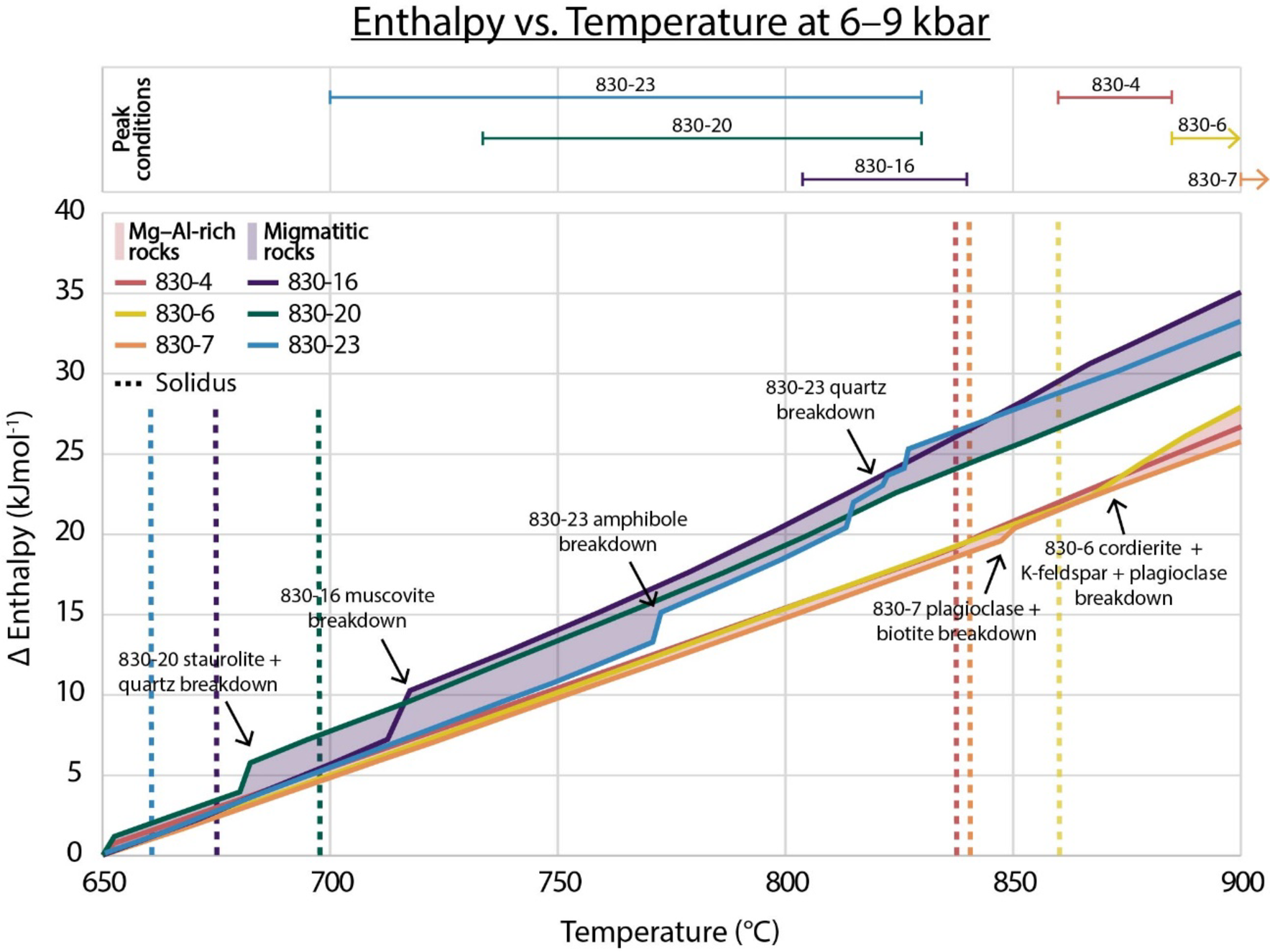

Fig. 6
From: Thermal buffering-controlled temperature variation between Mg–Al-rich rocks and migmatites
Top: Modelled peak temperatures for samples 830-4, 830-6, 830-7, 830 − 16, 830 − 20, and 830 − 23. Bottom: Enthalpy (kJmol-1) versus temperature (°C) at 6–9 kbar for samples 830-4, 830-6, 830-7, 830 − 16, 830 − 20, and 830 − 23. The solidus intersection location for each sample along the 6–9 kbar line is shown with a dashed line, coloured to match that of its respective enthalpy versus temperature line. The solidus location for sample 830 − 23 is below the modelled temperature range and the modelled peak conditions for samples 830-6 and 830-7 extend to higher temperature.
