Fig. 1
From: An ultrawideband monopulse feed with slant polarization for tracking radar systems

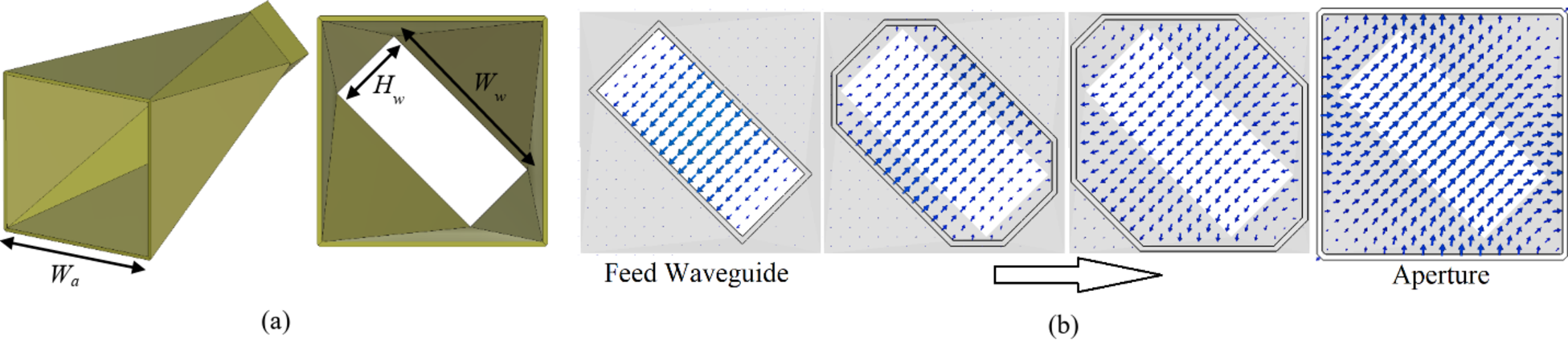

(a) Configurations of a waveguide-fed diagonal horn antenna. (b) Electric field distribution in different cross-sections of the antenna from feed waveguide to square aperture of antenna.
