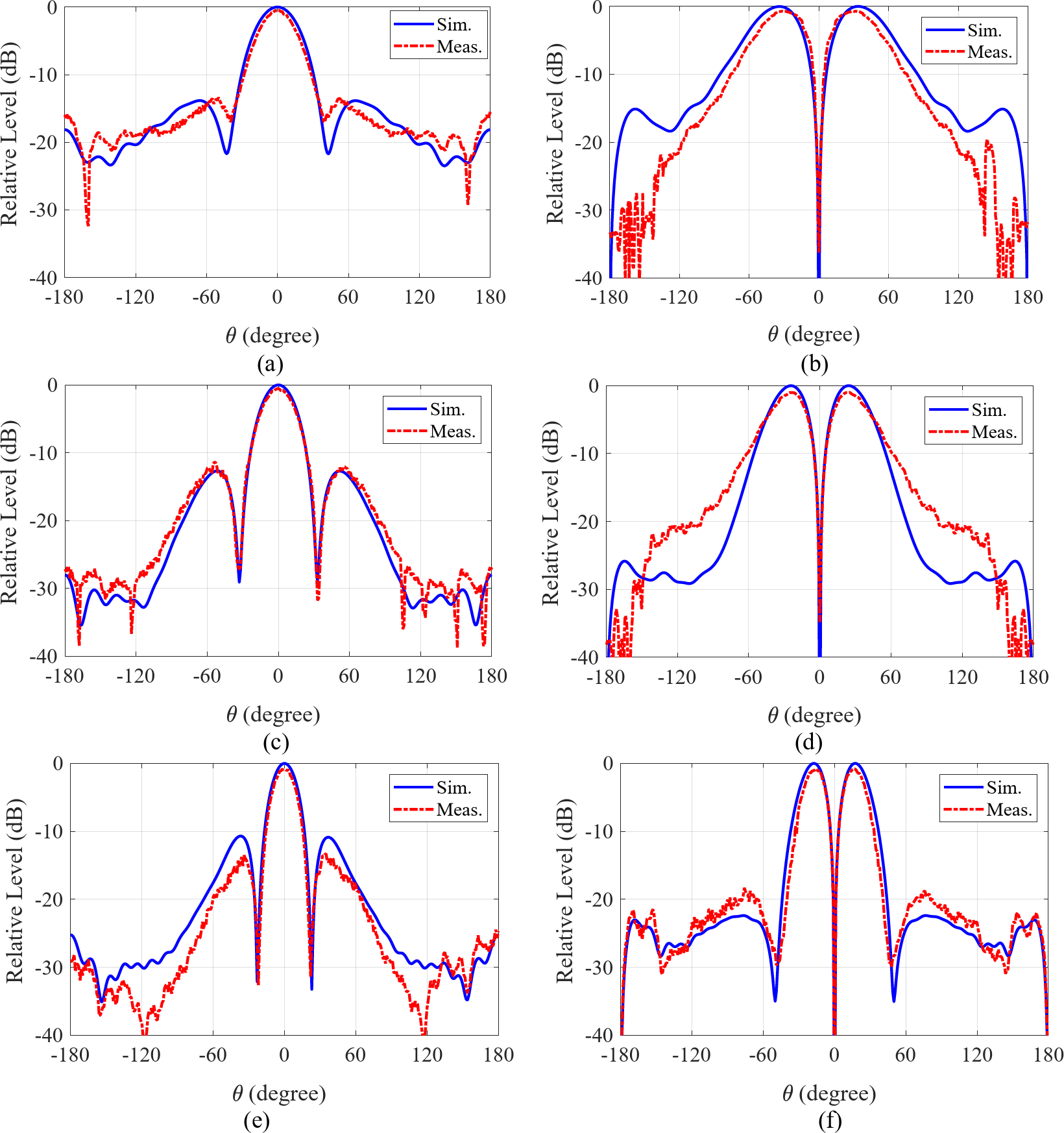

Fig. 12
From: An ultrawideband monopulse feed with slant polarization for tracking radar systems
Simulated and measured normalized radiation patterns of monopulse feed in sum and difference modes at different frequencies. (a) and (b) 8 GHz. (c) and (d) 13 GHz. (e) and (f) 18 GHz.
