Fig. 7
From: An ultrawideband monopulse feed with slant polarization for tracking radar systems

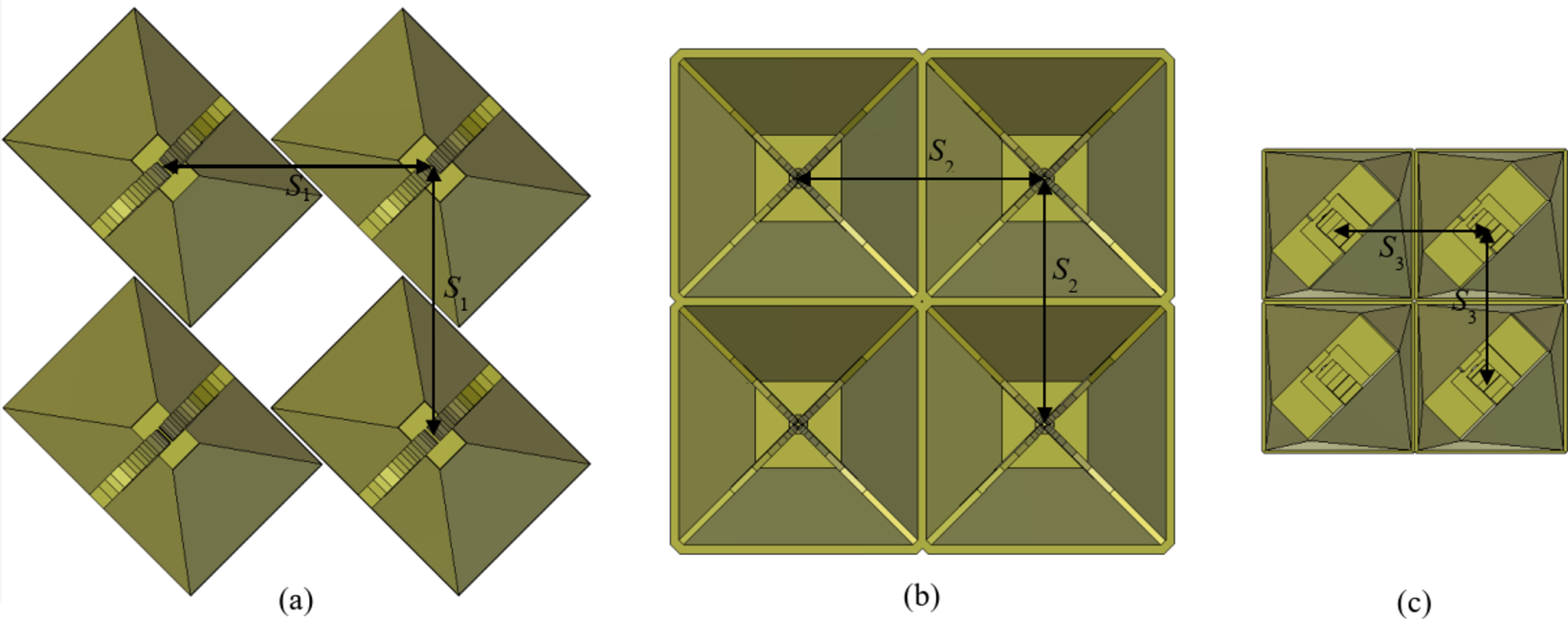

Configuration of 2 × 2-element arrays of (a) double-ridged, (b) diagonal quad-ridged and (c) diagonal horn antennas (All three figures use the same scale).
