From: Label-free proteomic analysis of Duchenne and Becker muscular dystrophy showed decreased sarcomere proteins and increased ubiquitination-related proteins

Fig. 4

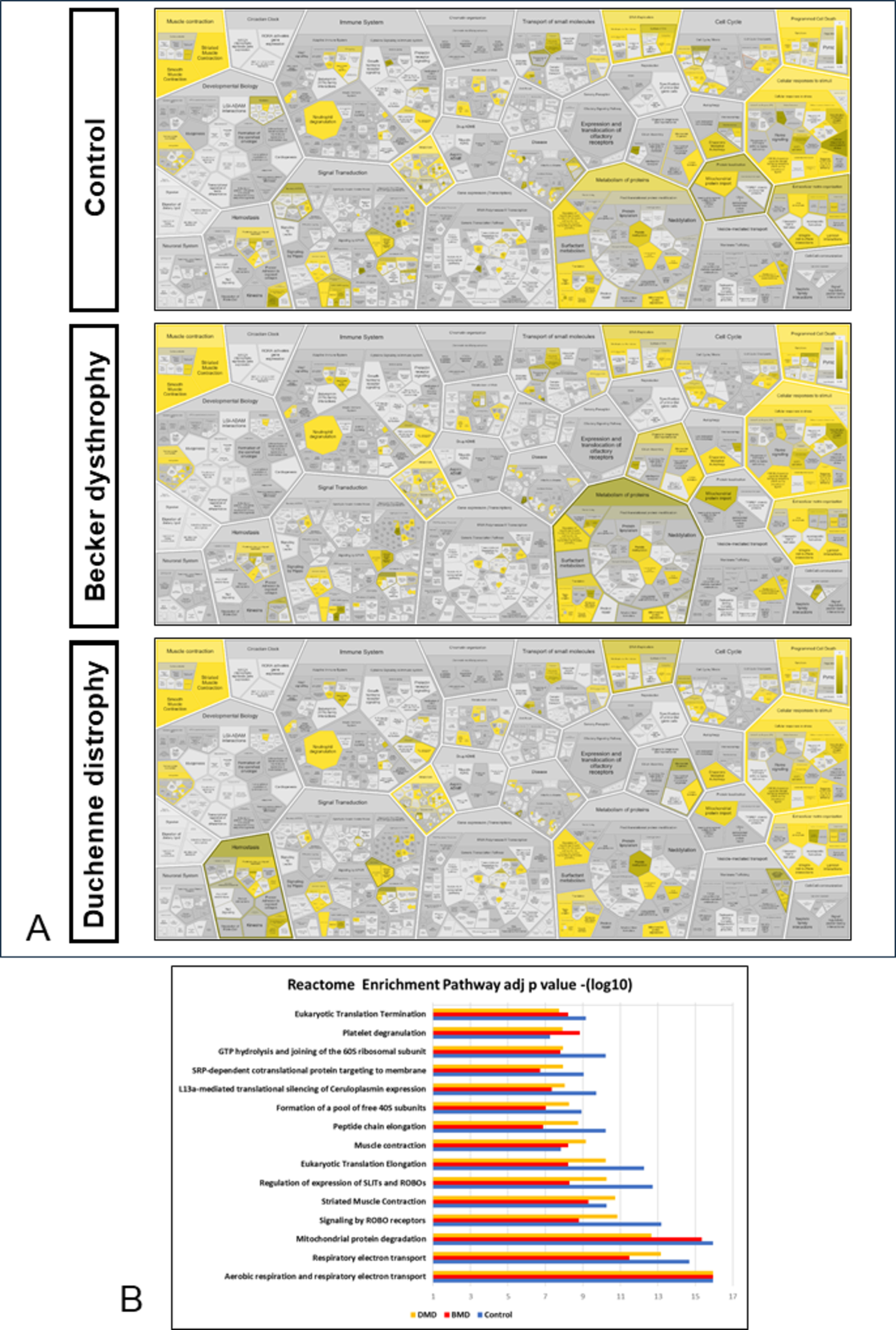

Reactome Pathway Database analysis with all the proteins identified and quantified in each group (CG, BG and DG). (A) Reacfoam showing p value coverage for all proteins identified and quantified in control, Becker and Duchenne groups. (B) Graphical representation of the top fifteen reactome pathways based on adjusted p value enrichment.
