Fig. 6 | Scientific Reports

Fig. 6

From: Preliminary evidence of immune infiltration and neutrophil degranulation in peripheral blood of non-obese OSA patients related to cognitive decline

Fig. 6

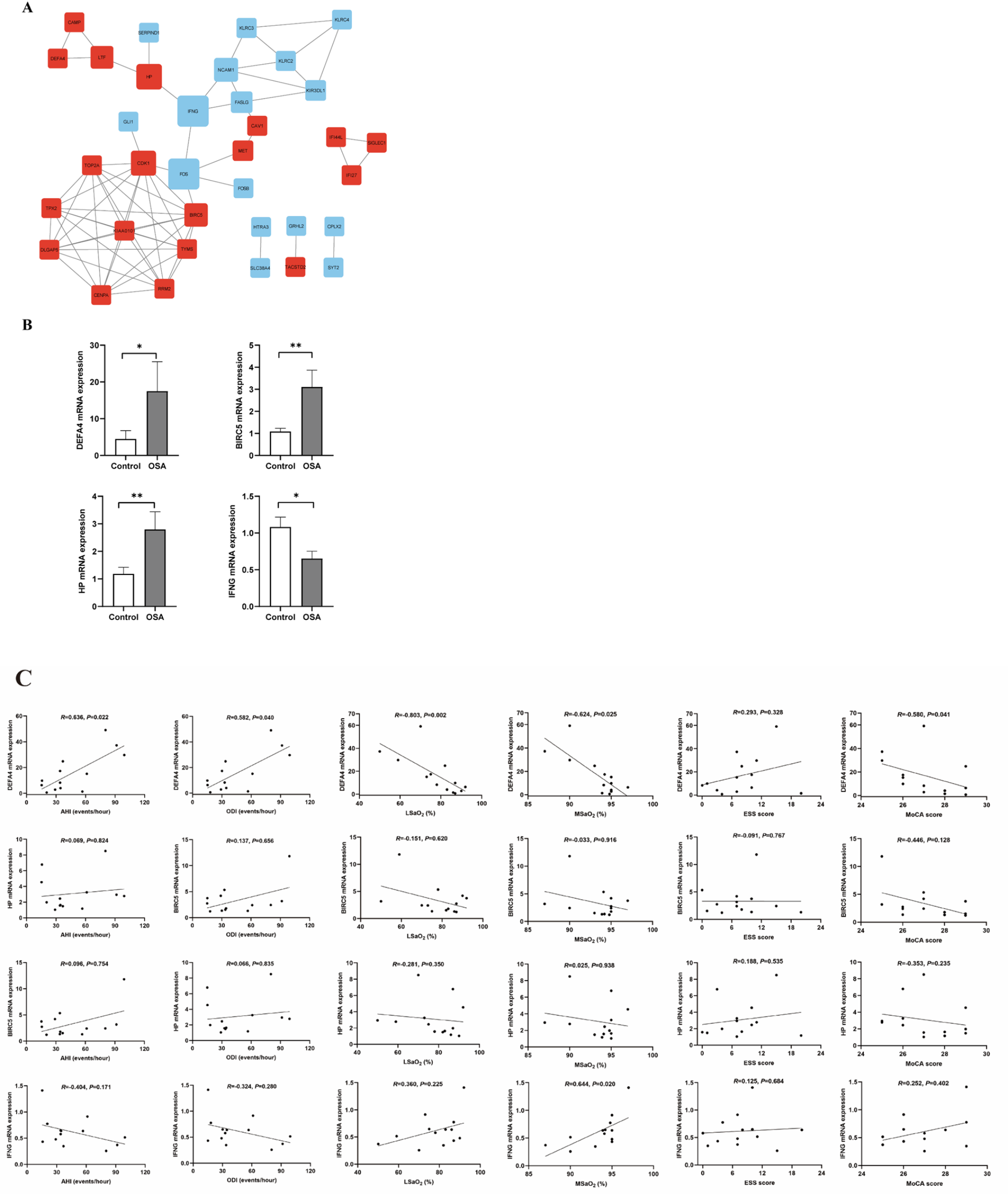

Identification of hub DEGs and correlation analysis in OSA patients. (A) PPI network and hub genes (red represents up-regulated DEGs, and blue represents down-regulated DEGs in OSA patients compared to healthy controls). (B) Verification of neutrophil degranulation-related hub genes in OSA patients (N=13) and healthy controls (N=10). *P<0.05, **P<0.01. (C) Relationships between sleep parameters, MoCA score and neutrophil degranulation-related hub genes in OSA patients (N=13), P<0.05 was considered to be statistically significant.
