Introduction

The development in the bountiful of heavy and light industries brings many environmental losses. Even though industrialization development prospers the economy around the world, it results in forming different kinds of pollution, such as noise, air, water, and soil. Water pollution is a serious affair that can destroy the earth entirely, as it affects humans, the environment, and other living organisms. Various pollutants are severe in wastewater, like radioactive substances, trace elements, organic/inorganic pollutants, sewage, and sediments1,2,3,4,5.

Chromium is one of the diffused trace elements in water bodies that is deemed the core of gigantic industries, such as mining, electroplating, leather, pigment, and metal cleaning; nevertheless, chromium is listed at the top of the most dangerous sixteen heavy metals6,7,8. There are two most common valences of chromium: trivalent (Cr(III)) and hexavalent (Cr(VI)), where Cr(III) is a benign form, and Cr(VI) is a detrimental form9. Therefore, reducing Cr(VI) to Cr(III) can be a functional removal pathway of the notorious Cr(VI)10. Remedying wastewater from the Cr(VI) species proceeds with various techniques, including ozonation, catalysis, membranes, adsorption, and precipitation11,12,13. Interestingly, the adsorption technique provides individual merits like costless, energy saving, high efficiency, eco-benign, and facile processing14,15. Consequently, frequent studies per year involve developing adsorbents to have high adsorption aptitude and excellent recycling properties.

Metal-organic frameworks (MOFs) are functional substances that have exhibited promising results in remedying wastewater from sundry contaminants16,17. The MOF materials are set up by forming a coordination bond between unsaturated metal species and organic linker18. Impressively, pioneering investigations regarding MOFs confirmed their excellent performances in diffusing, transporting, and trapping the targeted contaminants owes to their superb features, comprising good supporter, large surface area, stability in water, porosity, flexibility, and pre-eminent adsorption aptitude19,20.

MIL-88 A(Fe) is a 3D-topology MOF that is synthesized by hydro(solvo)-thermal reaction between the ferric species and fumaric acid21. The used solvent in fabricating the MIL-88 A(Fe) identifies its morphology since its shape is hexagonal when the used solvent N, N-dimethylformamide while the utilizing of water as a solvent yields MIL-88 A(Fe) with a rod shape22. N, N-dimethylformamide is a highly toxic solvent, which is classified among the carcinogenic solvents. Noteworthy, N,N-dimethylformamide can dwell in the network of MOFs, giving rise to forming a secondary contaminant. So, N,N-dimethylformamide-free MOFs need further investigation and development, using benign solvents like water instead of N, N-dimethylformamide23. Nevertheless, MIL-88 A(Fe), like MOFs, suffers from a main shortcoming: the high dispersity that obstacles its separation from the adsorption medium and thus declines its recyclability. Hence, shaping the MOFs into membranes and beads or fabricating magnetic MOF-based composites could be the viable solution to conquer this bottleneck of MOFs24.

Magnetic nanoparticles offer outstanding advantages, such as tiny particle size, high adsorption efficacy, chemo-selectivity, and excellent recyclability, making them a promising choice as propitious adsorbents25,26. Zero-valent cobalt (ZVCo) are magnetic nanoparticles, having individual features like the high super-paramagnetic that endows them with high recycling and easy-separation properties27. Furthermore, ZVCo, likewise the ZV-metals, can in situ produce Co2+ to participate in the adsorption mechanism via the reduction reaction28. Although the magnetic property of ZVCo gives it the perfect and easy separation merits, it causes particle aggregation that decreases the available surface area. So, blinding the highly magnetic ZVCo with non-magnetic substances could be a feasible strategy to outdo the aggregation problem of the magnetic particles of ZVCo.

The cyclic oligosaccharide cyclodextrin (CD) is a cone-shaped topology constructed from a network of the macro glucopyranose ring29. There are three forms of CD, which are γ-CD, β-CD, and α-CD that contain eight, seven, and six glucopyranose rings, and their cavities’ diameters are 0.75–0.83, 0.6–0.65, and 0.47–0.53 nm, respectively30,31,32. Owing to the facile preparation and favorable cavity diameter of β-CD, it is widely applied compared to the other CD forms33. The structure of CD looks like a host-guest relationship, where the host is a hydrophobic construct of the CH2 group, and the guest is hydrophilic, comprising branches of the OH group34. The flexible architecture of CD endows it with the easy-functionalization feature, improving its chemical and physical properties35,36. Furthermore, the large surface area, biocompatibility, sustainable production, and porous structure of CD render it a good adsorbent since it can capture organic/inorganic pollutants from wastewater37. Nonetheless, CD’s good solubility limits its applicability in water remediation. The fabrication of CD-based composites could solve this issue since the large numbers of OH in the CD matrix can effectively capture contaminants from wastewater and interact with other functional groups to form composites38.

In this regard, Kekes et al. fabricated chitosan/β-CD beads for removing Cr(VI), deducing that the maximum adsorption capacity (Qmax) of Cr(VI) was 555.56 mg/g at pH = 4, temperature = 15 °C, and beads dose of 20 g/L39. Moreover, Wang and his co-authors modified β-CD with magnetic graphene oxide (m-GO) to efficiently adsorb Cr(VI). The experimental results denoted that the calculated Qmax of Cr(VI) under Langmuir onto β-CD/m-GO was 49.95 mg/g at pH = 2. In addition, the removal % of Cr(VI) by β-CD/m-GO was 73% after five adsorption runs40. In another investigation, Wang et al. fabricated β-CD/polyaniline composite for removing Cr(VI), elucidating that the higher removal % of Cr(VI) attained 98% at pH = 6 via coupling between adsorption and reduction mechanisms41. Furthermore, Hammad et al. highlighted the modification of cetyl pyridinium bromide-functionalized MIL-88 A by aminated graphene oxide (CPBr-MIL-88 A@AmGO). The Qmax of Cr(VI) onto CPBr-MIL-88 A@AmGO reached 306.75 mg/g at pH = 2. Studying the influence of coexisting cations, such as Na+, K+, and Ca2+, and anions like Cl− and NO3− on the Cr(VI) adsorption revealed an inconsiderable effect on the efficacy of the adsorption process. At the same time, anions like SO42− in the adsorption medium could hinder the adsorption of Cr(VI) onto CPBr-MIL-88 A@AmGO42. Kakavandi et al. synthesized by supporting zerovalent iron/silver on activated carbon (ZVFe/Ag@AC). The Qmax of Cr(VI) onto ZVFe/Ag@AC was 100 mg/g at pH = 3. In addition, the adsorption of Cr(VI) onto ZVFe/Ag@AC fulfilled equilibrium within an hour43. In this context, Qiu et al. deduced that the adsorption mechanism of Cr(VI) onto the ZVFe-supported biochar composite proceeded via direct/ortho reduction and electrostatic attraction. Furthermore, the higher adsorption % of Cr(VI) was 64.13% at pH = 4, reaction temperature = 25 °C, and dose = 1 g/L44.

The recent advancements in fabricating efficient adsorbents to remove Cr(VI) from wastewater have focused on exploiting the advantage of bountiful advanced materials like MOFs, zerovalent metals, and CDs, as abovementioned in the literature survey. In contrast, there are limitations in the research papers regarding the utilization of some types of MOFs like MIL-88 A and zerovalent metals such as ZVCo for the adsorptive removal of Cr(VI).

Our study highlighted developing an efficacious and recyclable adsorbent to remove the lethal Cr(VI) ions from wastewater by decorating MIL-88 A(Fe)@β-CD surface with ZVCo to produce the magnetic ZVCo-MIL-88 A(Fe)@β-CD composite. The batch experiments proceeded to record the favorable conditions to adsorb Cr(VI), including the optimal pH, temperature, equilibrium time, and adsorbent dose. Then, the resultant data from the experimental work were analyzed by kinetics and isotherms models to deduce the governing interaction’s type. Furthermore, the physical forces and the chemical interactions between Cr(VI) and ZVCo-MIL-88 A(Fe)@β-CD composite were supposed in light of the XPS spectra. Competitive anionic species like nitrate, chloride, and sulfate were introduced to the Cr(VI)/ZVCo-MIL-88 A(Fe)@β-CD system to imitate actual wastewater. More importantly, to demonstrate the durability and applicability of the ZVCo-MIL-88 A(Fe)@β-CD composite, recycling, and leaching tests were conducted.

Experimental section

The materials that were utilized to fabricate ZVCo-MIL-88 A(Fe)@β-CD composite and the characterization apparatus are summarized in Text S1 and S2.

Fabricating the ZVCo nanoparticles

The ZVCo nanoparticles were prepared via the reduction approach as follows: dissolving 180 mg of CoCl2.6H2O in mixed solvents of double distilled water (3 mL) and Et-OH (7 mL). In another container, 420 mg of NaBH4 was dissolved in 33 mL of double distilled water. The obtained aqueous solution of NaBH4 was rapidly dropped on the Co2+ solution to decline the reaction time, avoiding the oxidation of the produced ZVCo. For complete growth, the ZVCo nanoparticles were stirred potently for 5 min, then they were collected by a magnet, washed with Et-OH, and dried for 12 h at 50 °C45.

Fabricating MIL-88 A(Fe)

The rod-shaped MIL-88 A(Fe) was synthesized by the hydrothermal method as follows: adding 2.6 g of FeCl3·6H2O and 1.2 g of Fumaric acid (F. Acid) in 65 mL of double distilled water with a continuous stirring for 2 h until complete homogeneity of the metal-linker solution. Then, the bright-orange solution of Fe2+/F. Acid was poured into the autoclave and kept in the oven for a day at 80 °C. Next, after cooling the autoclave at room temperature, the MIL-88 A (Fe) was collected via centrifugation, washed with double distilled water and Et-OH, and heated in an oven at 70 °C for 12 h until utter drying46.

Fabricating ZVCo-MIL-88 A(Fe)@β-CD composite

The ZVCo-MIL-88 A(Fe)@β-CD composite was prepared via the post-synthetic approach as follows: adding 0.05 g of MIL-88 A(Fe) and 0.025 g of β-CD in 25 mL of double distilled water with continuous stirring for an hour, following by sonication for another one hour to form a homogeneous black solid of the ZVCo-MIL-88 A(Fe) composite. Next, ZVCo (5–20 wt%) was distributed in the ZVCo-MIL-88 A(Fe) suspension, completing the sonication for an hour. Finally, the ZVCo-MIL-88 A(Fe)@β-CD composite was dried at 70 °C for 12 h.

Batch experiments

Sequential adsorption experiments proceeded to record the best conditions to adsorb the Cr(VI) onto the ZVCo-MIL-88 A(Fe)@β-CD composite. (i) Identifying the appropriate amount of the ZVCo in the ZVCo-MIL-88 A(Fe)@β-CD composite by performing a series of the Cr(VI) adsorption experiments using the composites with different ZVCo proportions. (ii) investigating the suitable pH medium by changing the pH of the Cr(VI)/ZVCo-MIL-88 A(Fe)@β-CD system within the range of 3–11. (iii) determining the ideal dosage of ZVCo-MIL-88 A(Fe)@β-CD for adsorbing the Cr(VI) ions, altering the composite dosage from 0.25 to 1.00 g/L. (iv) recording the equilibrium time and the isotherms of the Cr(VI) adsorption onto ZVCo-MIL-88 A(Fe)@β-CD at varies concentrations of the Cr(VI) species. (v) realizing the thermodynamics of the Cr(VI)/ZVCo-MIL-88 A(Fe)@β-CD system by elevating the process temperature up to 55 °C. (vi) assessing the impact of the competitive co-interfering anions by introducing sulfate, chloride, and nitrate ions between the concentrations 10–30 mM to the Cr(VI)/ZVCo-MIL-88 A(Fe)@β-CD system. (vii) confirming the durability of the ZVCo-MIL-88 A(Fe)@β-CD composite by the recycling test for five runs using methanol/NaOH as the eluent. The initial (Ci) and final (Cf) concentrations of the Cr(VI) species were identified via spectrophotometer, and the Eqs. (1, 2) were applied to investigate the aptitude of the Cr(VI) adsorption47,48.

$$\:Removal\:\%,\:R\:\left(\%\right)=\frac{{C}_{i\:}-{C}_{f}}{{C}_{i}}\:\times\:100$$
(1)
$$\:Adsorption\:capacity,\:Q\:(mg/g)=\frac{{(C}_{i}-{C}_{f})\times\:V}{m}$$
(2)

Results and discussion

Characterization of ZVCo-MIL-88 A(Fe)@β-CD

FTIR spectra

The compositions of ZVCo, MIL-88 A(Fe), β-CD, and ZVCo-MIL-88 A(Fe)@β-CD were confirmed by the FTIR analysis, as represented in Fig. 1a. For MIL-88 A(Fe), the FTIR pattern elucidated related peaks to the asymmetric carboxylate group of F. Acid at 1604 cm−1, while the symmetric carboxylate appeared at 1396 cm−1. Furthermore, the characteristic peak of Fe-O manifested at 573 cm− 1, evincing the formation of the coordination bond between the ferric ions and F. Acid49. The peaks at 1705 and 1716 cm− 1 correspond to C = O and C-C, and the distinguishing peaks to O-H and C-H appeared at 3374 cm− 1, respectively50. For β-CD, the FTIR pattern clarified the distinctive peaks to the linked α-1,4-glycosidic bonds between glucopyranose units51. The C-O vibrating peak presented at 1153 cm− 1, and the C-O stretching peak appeared at 1251 cm− 1. The C-H bending peaks manifested at 766, 1365, 1414, and 1365 cm− 1, while the C-H stretching peak evidenced at 2925 cm− 1. The absorption peaks at 1642 and 3363 cm− 1 are related to the OH bending vibrational and stretching vibrational, respectively. For ZVCo, the FTIR pattern showed peaks at 574 and 664 cm− 1, which assigns to the Co-O, and the peaks between 1000 and 1600 cm− 1 belong to the B-O vibration52. The low intensity of the FTIR pattern of ZVCo may be due to its amorphous structure45. For ZVCo-MIL-88 A(Fe)@β-CD, the FTIR revealed the combination between the absorption peaks of ZVCo, MIL-88 A(Fe), and β-CD, indicating the successful fabrication of the composite.

PXRD patterns

The PXRD diffractograms of ZVCo, MIL-88 A(Fe), β-CD, and ZVCo-MIL-88 A(Fe)@β-CD are illustrated in Fig. 1b. For MIL-88 A, the PXRD diffractogram demonstrated the distinguishing peaks at 2θ of 10.77°, 11.98⁰, 12.94⁰, 15.37⁰, and 21.42⁰ accompanied by the planes of (100), (101), (110), (012), and (022)53,54. For β-CD, the PXRD diffractogram represented the characteristic peaks at 2θ of 6.29°, 8.8°, 9.76°, 10.69°, 11.69°, 12.47°, 14.70°, 17.15°, 21.19°, 22.69°, 24.34°, 27.14°, 35.9°, and 41.47 correspond to the planes of (001), (101), (011), (130), (041), (141), (090), (042), (251), (162), (222), (223), and (044)55,56,57. For ZVCo, the PXRD diffractogram revealed the amorphous character of ZVCo with diffraction peaks at 2θ of 44.42°, 51.29°, 62.35°, and 72.11° signify the planes of (002), (101), (102), and (110)58. For ZVCo-MIL-88 A(Fe)@β-CD, the PXRD diffractogram showed the blinding between ZVCo, MIL-88 A(Fe), and β-CD with a decline in the peak intensity owes to the amorphous character of ZVCo.

Zeta potential measurements

Figure 1c exhibits the zeta potential of the ZVCo-MIL-88 A(Fe)@β-CD composite at different pHs between 3 and 11. The zeta potential versus pH plot of ZVCo-MIL-88 A(Fe)@β-CD demonstrated that the zero-charge point of the composite surface was at pH = 7.75. Consequently, the ZVCo-MIL-88 A(Fe)@β-CD surface charged with high positive charges in acidic media, reaching its peak at pH = 3, in which the zeta potential was 21.11 mV. On the contrary, ZVCo-MIL-88 A(Fe)@β-CD carried negative charges at alkaline media. These observations implied that ZVCo-MIL-88 A(Fe)@β-CD can adsorb the anionic pollutants in acidic media, and the cationic contaminants can be adsorbent onto the composite surface in alkaline media.

VSM hysteresis loops

The magnetization hysteresis loops of the neat ZVCo and ZVCo-MIL-88 A(Fe)@β-CD are clarified in Fig. 1d. The nitrogen isotherms revealed super-paramagnetic hysteresis loops of ZVCo and ZVCo-MIL-88 A(Fe)@β-CD, in which their coercivity magnitudes were 18.38 and 13.69 G, sequentially. This finding gives the magnetic ZVCo-MIL-88 A(Fe)@β-CD composite an interesting merit since the super-paramagnetic does not aggregate at room temperature after removing the external magnetic field59. Moreover, the saturation magnetization of ZVCo and ZVCo-MIL-88 A(Fe)@β-CD were 33.25 and 17.19 emu/g, respectively. The decline in the saturation magnetization of ZVCo is most likely due to the non-magnetization characters of MIL-88 A(Fe) and β-CD. Even though the diminution in the magnetization property of ZVCo after mixing with MIL-88 A(Fe) and β-CD in the composite, the magnetization of the composite is still sufficient to separate the composite utilizing an external magnet instead of filtration and centrifugation, providing a perfect separation in a short time.

Fig. 1
figure 1

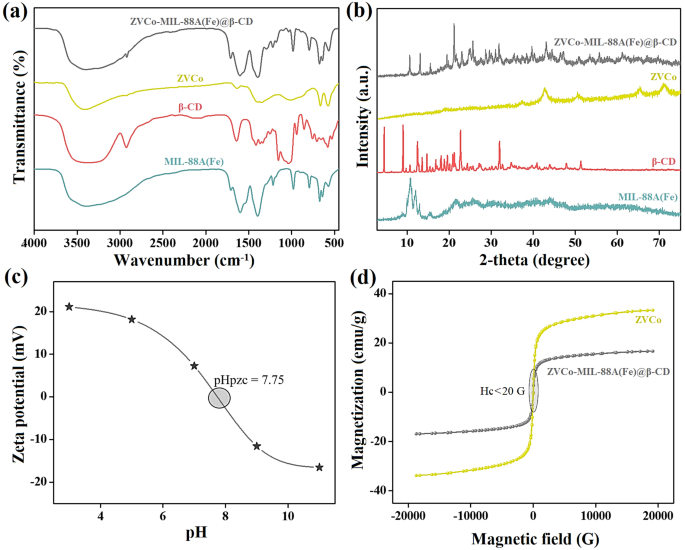

(a) FTIR spectra and (b) XRD pattern of ZVCo, MIL-88 A(Fe), β-CD, and ZVCo-MIL-88 A(Fe)@β-CD, (c) Zeta potential curve of ZVCo-MIL-88 A(Fe)@β-CD, and (d) The magnetization hysteresis loops of the neat ZVCo and ZVCo-MIL-88 A(Fe)@β-CD.

Full size image

SEM images

The morphological shapes of ZVCo, MIL-88 A(Fe), β-CD, and ZVCo-MIL-88 A(Fe)@β-CD are elucidated in Fig. 2a–d. For MIL-88 A(Fe), the SEM image showed the typical rod shape formed by using the hydrothermal synthesization approach. The size of the MIL-88 A(Fe) rods was not uniform, where their length ranged between 2.5 and 4.5 µ and the width range was about 0.25–0.89 µ. For β-CD, the SEM image clarified its sheet-shaped morphology, and the surface of the sheets is rough. These characteristics of β-CD make it a suitable scaffold to hold highly distributed substances, such as MIL-88 A(Fe), and ease its separation. Furthermore, supporting the magnetic particles on the β-CD surface diminishes the aggregation of the particles and increases their surface area. For ZVCo, the SEM image depicted that the outer shape of the particles looks like a spherical shape with a tiny size in the nano range of 30.91 to 39.34 nm. For ZVCo-MIL-88 A(Fe)@β-CD, the SEM image represented the well-distribution of ZVCo and MIL-88 A(Fe) on the β-CD sheets, confirming working β-CD as a supporter.

Fig. 2
figure 2

The SEM images of (a) MIL-88 A, (b) β-CD, (c,d) ZVCo, and (e) ZVCo-MIL-88 A(Fe)@β-CD.

Full size image

BET measurements

The nitrogen adsorption/desorption isotherms of MIL-88 A(Fe), β-CD, ZVCo, MIL-88 A(Fe)@β-CD, and ZVCo-MIL-88 A(Fe)@β-CD are illustrated in Fig. 3a. The isotherms of MIL-88 A(Fe), β-CD, ZVCo, MIL-88 A(Fe)@β-CD, and ZVCo-MIL-88 A(Fe)@β-CD depicted type (IV) with specific surface area values of 152.74, 54.15, 66.32, 244.13, and 216.34 m2/g, respectively. The BJH pore diameters of MIL-88 A(Fe), β-CD, ZVCo, MIL-88 A(Fe)@β-CD, and ZVCo-MIL-88 A(Fe)@β-CD were 2.15, 1.77, 7.99, 6.44, and 5.29 nm, as depicted in Fig. 3b. The BET measurements suggested the mesoporous structures of MIL-88 A(Fe), β-CD, ZVCo, MIL-88 A(Fe)@β-CD, and ZVCo-MIL-88 A(Fe)@β-CD. Additionally, the slight decline in the surface area of MIL-88 A(Fe)@β-CD after doping with ZVCo is attributed to the super-paramagnetic nature that causes particle aggregation and increases the particle size, which diminishes the surface area.

Fig. 3
figure 3

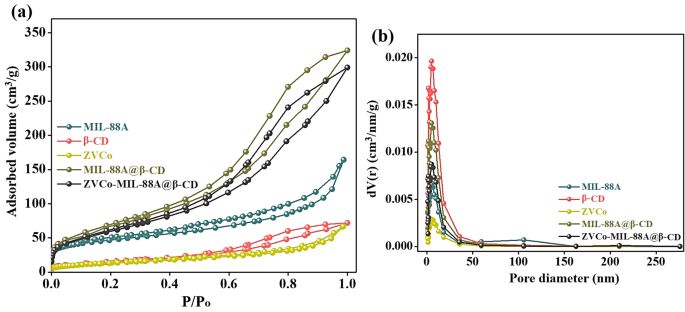

BET measurements of MIL-88 A(Fe), β-CD, ZVCo, MIL-88 A(Fe)@β-CD, and ZVCo-MIL-88 A(Fe)@β-CD; (a) N2 adsorption/desorption hysteresis loop and (b) BJH pore size distribution plot.

Full size image

XPS spectra

The elemental composition of the ZVCo-MIL-88 A(Fe)@β-CD composite was investigated by the XPS analysis, as depicted in Fig. 4a–e. The wide-spectrum elucidated the composition of ZVCo-MIL-88 A(Fe)@β-CD from carbon, oxygen, iron, and cobalt with atomic % of 58.50, 38.61, 1.98, and 0.91%, respectively. The cobalt spectrum revealed the presence of three oxidation valences of cobalt; zero-valent cobalt since the characteristic peaks of Co0 2p3/2 and Co0 2p1/2 manifested at 781.59 and 798.30 eV60,61. The distinguishing peaks of the cobalt (II) species appeared at 785.33 and 803.40 eV ascribed to Co2+ 2p3/2 and Co2+ 2p1/262. The XPS peaks of the cobalt (III) species; Co3+ 2p3/2 and Co3+ 2p1/2 illustrated at 788.83 and 808.39 eV63. Furthermore, the atomic percents of the Co0, Co2+, and Co3+ species in ZVCo-MIL-88 A(Fe)@β-CD were 30.64, 33.02, and 23.82%, respectively. The iron spectrum demonstrated the belonging peaks to the ferrous ions of 2p3/2 and 2p1/2 at the binding energy of 711.92 and 725.65 eV with a total atomic % of 55.76%. In addition, the related XPS peaks of the ferric species of 2p3/2 and 2p1/2 manifested at 714.82 and 729.89 eV with an atomic % of ferric ions of 22.77%47. The carbon spectrum elucidated three carbon functional groups; C-OH, C-O-C, and O-C = O at the binding energy of 284.99, 286.64, and 288.73 eV with atomic % of 42.16, 33.59, and 24.25%, sequentially64. The oxygen spectrum clarified the corresponding peaks of M-O, C = O, and O-H at 530.35, 531.65, and 532.76 eV with atomic % of 4.06, 15.5, and 80.44%, respectively65.

Fig. 4
figure 4

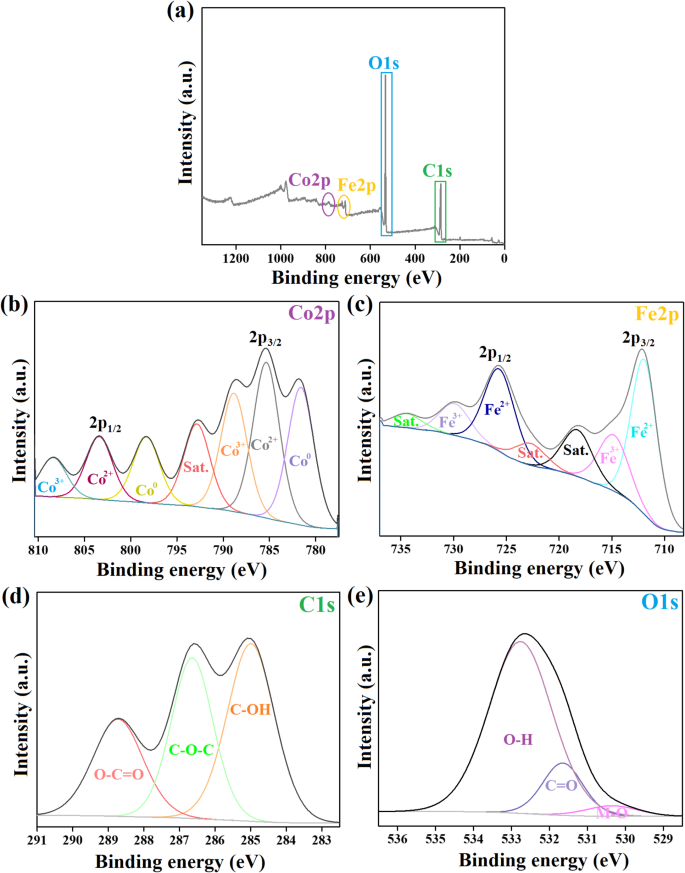

The XPS spectra of ZVCo-MIL-88 A(Fe)@β-CD; (a) Wide-spectrum, (b) Co2p, (c) Fe2p, (d) C1s, and (e) O1s.

Full size image

Optimization of the cr(VI) adsorption

Identify the optimal ZVCo proportion

The adsorption behaviors of MIL-88 A(Fe), β-CD, and MIL-88 A(Fe)@β-CD toward adsorbing the Cr(VI) ions were examined at the same adsorption parameters, as depicted in Fig. 5a. The removal capabilities of MIL-88 A(Fe), β-CD, and MIL-88 A(Fe)@β-CD toward Cr(VI) were 52.78, 44.09, and 73.07%, while their adsorption capacities were 29.47, 16.49, and 59.77 mg/g, respectively. This experimental finding denoted the significance of supporting MIL-88 A(Fe) over the β-CD surface; however, the adsorption capacity of the MIL-88 A(Fe)@β-CD composite still required further improvements. In addition, the MIL-88 A(Fe)@β-CD separation by centrifugation was difficult, so the syringe filter was used as a secondary separation tool after centrifugation. This technique took a long time to separate MIL-88 A(Fe)@β-CD from the adsorption system, rendering the measurements inaccurate and wasting a part of the MIL-88 A(Fe)@β-CD dosage. Consequently, MIL-88 A(Fe)@β-CD was decorated with the magnetic ZVCo nanoparticles, showing an enhancement in the adsorption efficiency of the Cr(VI) ions from 70.61 to 91.07 mg/g and the removal % from 80.33 to 94.02% by raising the decorated proportion of ZVCo from 5 to 10 wt%. Nonetheless, the over-elevating of the ZVCo proportion to 20 wt% dwindled the removal % of Cr(VI) to 81.45% and the adsorption capacity to 72.29 mg/g, which could be anticipated by blocking the ZVCo-MIL-88 A(Fe)@β-CD pores by the excess proportion of ZVCo. Thus, 10 wt% of ZVCo is the optimal decorated proportion in the ZVCo-MIL-88 A(Fe)@β-CD composite.

On the other hand, a reusability test was performed on MIL-88 A(Fe)@β-CD and ZVCo-MIL-88 A(Fe)@β-CD to confirm the importance of the decorated ZVCo in boosting the recycling property of MIL-88 A(Fe)@β-CD (Fig. 5b). As expected, the MIL-88 A(Fe)@β-CD suffered a low recycling character since the removal % of Cr(VI) declined from 73.07 to 27.24% after five runs. This inferior recyclability of MIL-88 A(Fe)@β-CD because of its separation difficulty and mass loss during completing the separation by the syringe filter. Contrariwise, the magnetic character of ZVCo-MIL-88 A(Fe)@β-CD endowed it with fast and perfect separation, so the composite revealed an excellent recycling behavior during five Cr(VI) adsorption runs with a slight decrease in the removal % from 94.02 to 84.98%.

Identifying the optimal pH

The optimal pH to adsorb Cr(VI) on ZVCo-MIL-88 A(Fe)@β-CD was determined by studying the adsorption % of Cr(VI) at various acidic and alkaline media. The Cr(VI) ions are poly-protic species that have many forms at different pHs; Cr(VI) presents in acidic media (2–6) as Cr2O72−/ HCrO4−, while at neutral and alkaline media (pH > 6), it exists in the CrO42− form66. As exhibited in Fig. 5c, the higher adsorption efficiency of Cr(VI) was recorded at pH = 3, where the R% and Q fulfilled 94.02% and 91.07 mg/g sequentially. Furthermore, a noticeable diminution of the adsorption aptitude of Cr(VI) was observed by augmenting the pH media over pH = 3, attaining R% = 69.24% and Q = 54.05 mg/g. Thereby, it was deduced the effectiveness of the electrostatic/repulsion forces on the Cr(VI) adsorption since at the highly acidic medium, the ZVCo-MIL-88 A(Fe)@β-CD carried high positive charges that could grasp the Cr(VI) ions onto its surface by electrostatic forces. On the contrary, in the alkaline and neutral media, the negative charges on the ZVCo-MIL-88 A(Fe)@β-CD surface played a role in inhibiting the adsorption process of Cr(VI) by repulsing the ions out of the composite via the electrostatic repulsion forces67. These experimental outcomes were typically agreed with the abovementioned zeta potential measurements, showing that the most favorable pH to adsorb Cr(VI) onto ZVCo-MIL-88 A(Fe)@β-CD was pH = 3.

Identifying the optimal adsorption temperature

The Cr(VI) removal efficiency by ZVCo-MIL-88 A(Fe)@β-CD was studied at different system temperatures, as demonstrated in Fig. 5d. The capacity of the Cr(VI) removal dwindled by elevating the temperature from room temperature to 55 °C, where R% and Q declined by 9.2% and 13.75 mg/g, respectively. Such a decrease in the removal efficacy of Cr(VI) by raising the adsorption temperature could be explained by: (i) the increase in the Brownian movement of the Cr(VI) ions at a higher temperature than the room temperature, hindering ions from reaching the ZVCo-MIL-88 A(Fe)@β-CD surface. (ii) the high temperature can raise the kinetic energy of the Cr(VI) ions, causing the desorption of the ions out of ZVCo-MIL-88 A(Fe)@β-CD.

Fig. 5
figure 5

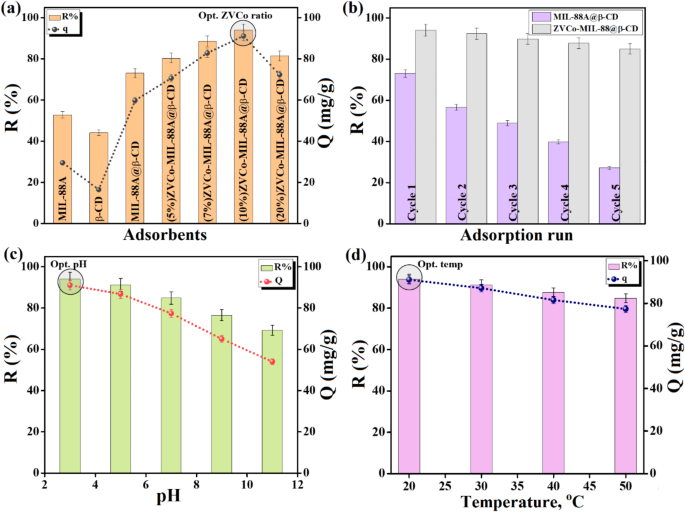

Experimental results of the Cr(VI) adsorption onto ZVCo-MIL-88 A(Fe)@β-CD; (a) Comparison study, (b) Recycling test of MIL-88 A(Fe)@β-CD and ZVCo-MIL-88 A(Fe)@β-CD for five Cr(VI) adsorption runs, (c) determine the optimal pH, and (d) investigate the thermodynamic state.

Full size image

Identifying the ideal dose of ZVCo-MIL-88 A(Fe)@β-CD

Sequential adsorption experiments proceeded by different ZVCo-MIL-88 A(Fe)@β-CD doses to define the ideal dose to adsorb Cr(VI), as represented in Fig. 6a. The removal aptitude of Cr(VI) increased from 81.66 to 98.88% by elevating the mass of the added ZVCo-MIL-88 A(Fe)@β-CD in the adsorption system from 0.25 to 1.00 g/L, where the accessible adsorption sites get larger by high adsorbent mass. On the other hand, the capacity of the adsorbed Cr(VI) declined from 145.19 to 49.16 mg/g by this dose elevation, owing to the larger available binding active groups compared to the presented Cr(VI) ions in the adsorption system.

Identifying the equilibrium time at varies Cr(VI) concentrations

The equilibrium time of the adsorption process of Cr(VI) onto ZVCo-MIL-88 A(Fe)@β-CD was determined at varied Cr(VI) concentrations, as illustrated in Fig. 6b. The capacity of the Cr(VI) adsorption improved from 97.79 to 396.95 mg/g by increasing the Cr(VI) concentrations from 50 to 300 mg/L. Furthermore, the equilibrium time was recorded at 60 min, indicating the fast adsorption advantage of ZVCo-MIL-88 A(Fe)@β-CD. The removal aptitude decreased from 98.01 to 64.35% by augmenting the Cr(VI) concentrations because of the deficient active functional groups compared to high Cr(VI) anions Fig. S1.

Identifying the impact of interfering ions

The influence of the presented interfering anions and cation in the actual wastewater on the aptitude of the Cr(VI) adsorption onto the ZVCo-MIL-88 A(Fe)@β-CD adsorbent was studied and the experimental observations are illustrated in Fig. 6c,d. Interestingly, the existence of cations, such as calcium, sodium, and potassium species in the adsorption medium almost did not affect the capacity of the adsorbed Cr(VI) onto the ZVCo-MIL-88 A(Fe)@β-CD surface even by raising the concentration of cations to 30 mM. In addition, the presence of anions like chloride and nitrate slightly declines the adsorption % of the Cr(VI) ions, where they could form a weak outer-sphere complexation with ZVCo-MIL-88 A(Fe)@β-CD that slightly shields Cr(VI) to reach the adsorbent surface. While the sulfate ions have the ability to create a potent inner-sphere complexation with ZVCo-MIL-88 A(Fe)@β-CD that significantly retarded adsorbing Cr(VI) onto the adsorbent surface, decreasing the adsorption % of Cr(VI) by 10.53% when the sulfate concentration was 15 mM.

Fig. 6
figure 6

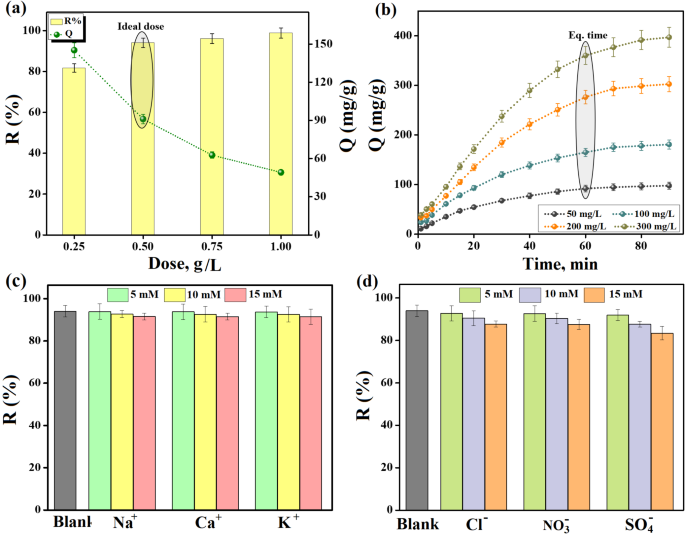

Experimental results of the Cr(VI) adsorption onto ZVCo-MIL-88 A(Fe)@β-CD; (a) identify the ideal dose, (b) evaluate the equilibrium time and (c,d) determine the influence of interfering ions.

Full size image

Mechanistic study

Investigating the type of interaction of the cr(VI) adsorption

Kinetic and isotherm assessments were applied to identify the controlling interaction in the Cr(VI) adsorption reaction by ZVCo-MIL-88 A(Fe)@β-CD. So, the adsorption experimental data of Cr(VI) during 90 min were analyzed by kinetic models, comprising Pseudo first order, Pseudo second order, and Elovich (Equations S1-S3)68. In addition, the equilibrium data were inspected by isotherm models like Freundlich, Temkin, D-R, and Langmuir (Equations S4-S7)69.

The kinetics curves (Fig. 7a–c) implied that the Cr(VI) adsorption reaction proceeded by bonding the Cr(VI) ions with the active functional groups of ZVCo-MIL-88 A(Fe)@β-CD by chemical interactions since the Pseudo second order is the best kinetic model to represent the adsorption reaction. This result can be ascribed to the closeness between the calculated equilibrium adsorption capacity under Pseudo second order with the experimental data (Table 1). Furthermore, the correlation values of the Pseudo second-order curves are higher than those of the Pseudo first order. The Elovich model denoted the Cr(VI) adsorption favorability since the adsorption rates of the Cr(VI) anions toward the surface of ZVCo-MIL-88 A(Fe)@β-CD are greater than their desorption rates.

Fig. 7
figure 7

Experimental data analysis of adsorption of Cr(VI) onto ZVCo-MIL-88 A(Fe)@β-CD by (a) Pseudo first order, (b) Pseudo second order, and (c) Elovich.

Full size image
Table 1 Pseudo first order, Pseudo second order, and Elovich models parameters for adsorption of cr(VI) onto ZVCo-MIL-88 A(Fe)@β-CD.
Full size table

The isotherms curves (Fig. 8a–d) clarified that the physical and chemical interaction dominated the Cr(VI) adsorption reaction onto ZVCo-MIL-88 A(Fe)@β-CD, where the correlation value of Freundlich and Langmuir are almost the same, as elucidated in Table 2. The computed highest adsorption aptitude of ZVCo-MIL-88 A(Fe)@β-CD toward the Cr(VI) anions was 434.78 mg/g at 25 °C. The n value of Freundlich confirmed the suitability of the ZVCo-MIL-88 A(Fe)@β-CD surface to adsorb the Cr(VI) anions, where n was about 3.29. The b value of Temkin indicated the domination of the physical interaction between Cr(VI) and ZVCo-MIL-88 A(Fe)@β-CD.

Fig. 8
figure 8

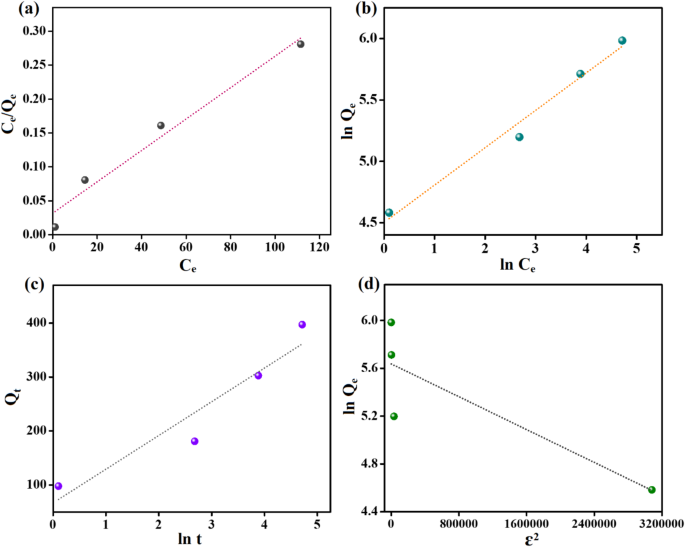

Experimental data analysis of adsorption of Cr(VI) onto ZVCo-MIL-88 A(Fe)@β-CD by (a) Langmuir, (b) Freundlich, (c) Temkin, and (d) D-R.

Full size image
Table 2 Parameters of Langmuir, Freundlich, Temkin, and D-R isotherms for the adsorption cr(VI) onto ZVCo-MIL-88 A(Fe)@β-CD.
Full size table

Identify the thermodynamics of the cr(VI) adsorption

Thermodynamics of the adsorption reaction of Cr(VI) onto ZVCo-MIL-88 A(Fe)@β-CD was elucidated by determining the thermodynamic parameters, comprising change in Gibbs free energy (∆G°), change in enthalpy (∆H°), and change in entropy (∆S°)70. The linear Van’t Hoff’s curve (Eqs. 3, 4) identified ∆H° and ∆S° from the slope and intercept, respectively, and then ∆G° was calculated from Eq. (5). Table 3 clarified the resultant thermodynamic parameters of Cr(VI) onto ZVCo-MIL-88 A(Fe)@β-CD.

$$\:=exp\left[\frac{\varDelta\:{S}^{^\circ\:}}{R}-\left(\frac{\varDelta\:H}{R}\right).\:\frac{1}{\:T}\right]\:$$
(3)
$$\:{K}_{d}=\frac{{C}_{Ae}}{{C}_{o}}$$
(4)
$$\Delta G^{0} = \Delta H^{0} - T\Delta S^{0}$$
(5)

Where, Kd (L/g) is the distribution constant, CAe is the concentration of the adsorbed Cr(VI) onto ZVCo-MIL-88 A(Fe)@β-CD, Co is the initial concentration of Cr(VI), R (J/mol K) is the gas constant, and T (K) is the absolute temperature.

Table 3 Thermodynamic parameters of the adsorption of cr(VI) onto ZVCo-MIL-88 A(Fe)@β-CD composite.
Full size table

The thermodynamics investigation demonstrated the positive magnitude of ∆G°, which suggested the unspontaneity of the adsorption of the Cr(VI) ions onto ZVCo-MIL-88 A(Fe)@β-CD composite. In addition, the negative magnitude of ∆H° elucidates the exothermic character of the adsorption Cr(VI)/ZVCo-MIL-88 A(Fe)@β-CD system, and the negative ∆S° magnitude implies the ordered solid-solution interface71.

Investigating the interactions inside the adsorption system

According to the kinetic and isotherm assessments, physical and chemical interactions control the adsorption of Cr(VI) onto ZVCo-MIL-88 A(Fe)@β-CD. XPS of the pure and used ZVCo-MIL-88 A(Fe)@β-CD suggested how the Cr(VI) interacted with the functional groups of the ZVCo-MIL-88 A(Fe)@β-CD composite. The wide-scan spectrum of the used ZVCo-MIL-88 A(Fe)@β-CD (Fig. 9a) clarified the distinguishing peak of Cr 2p at 578.29 eV, confirming the Cr(VI) adsorption onto the composite.

Chemical interactions

Reduction reaction

In light of previous studies regarding Cr(VI) adsorption, it was supposed that reducing Cr(VI) to Cr(III) is a dominant adsorption pathway. Notably, the Cr 2p spectrum (Fig. 9b) demonstrated the belonging peaks to Cr(VI) at 579.43 and 589.57 eV, while the Cr(III) peaks manifested at 577.16 and 587.13 eV, implying the participation of the reduction reaction in the Cr(VI) adsorption process (Eqs. 6, 7). Furthermore, the atomic % of Cr(VI) and Cr(III) were 29.12 and 70.88%, which denoted that the reduction reaction controlled the highest capacity of the adsorbed Cr(VI) onto ZVCo-MIL-88 A(Fe)@β-CD. The ability of ZVCo in situ to produce Co2+ facilitates its participation in the adsorption mechanism via the reduction reaction28, as elucidated in Eq. (8). Furthermore, the available unsaturated iron species can contribute to the Cr(VI) reduction reaction, as represented in Eq. (9). The redox potential of Fe3+/Fe2+ and Co3+/Co2+ are 0.77 and 1.808 V, respectively, which enables the Fe2+ species to recover the Co3+ species (Eq. 10). The shifting in the Fe 2p and Co 2p peaks reflected their participation in adsorbing Cr(VI) onto the ZVCo-MIL-88 A(Fe)@β-CD surface (Fig. 9c,d).

$${\text{HCrO}}_{4}^{ - } + {\text{ }}7{\text{H}}^{ + } + {\text{ }}3{\text{e}} \to {\text{Cr}}^{{3 + }} + 4{\text{H}}_{2} {\text{O}}$$
(6)
$${\text{Cr}}_{2} {\text{O}}_{7}^{{2 - }} + {\text{ }}14{\text{H}}^{ + } + {\text{ }}6{\text{ e}} \to 2{\text{ Cr}}^{{3 + }} + {\text{ }}7{\text{ H}}_{2} {\text{O}}$$
(7)
$$3{\text{ Co}}^{{2 + }} + {\text{Cr}}^{{6 + }} \to 3{\text{ Co}}^{{3 + }} + {\text{Cr}}^{{3 + }}$$
(8)
$$3{\text{ Fe}}^{{2 + }} + {\text{Cr}}^{{6 + }} \to 3{\text{ Fe}}^{{3 + }} + {\text{Cr}}^{{3 + }}$$
(9)
$${\text{Fe}}^{{2 + }} + {\text{Co}}^{{3 + }} \to {\text{Fe}}^{{3 + }} + {\text{Co}}^{{2 + }}$$
(10)

Coordination bonds

The coordination bond is a vital adsorption pathway during removing Cr(VI) from wastewater, where the electron donor groups (EDG)-containing adsorbent could bond with the species by a coordination bond, forming a complex. Interestingly, the ZVCo-MIL-88 A(Fe)@β-CD composite contains more than one EDG, which are hydroxyl and carboxyl that could interact with the Cr(VI) ions by a coordination bond to form a complex. The oxygen spectrum of the used ZVCo-MIL-88 A(Fe)@β-CD exhibited a slight change in the position of the peaks compared with the spectrum of the neat composite, which could be explained by the contribution of the oxygenated functional groups in adsorbing Cr(VI) from their bulk solution (Fig. 9e). In addition, a coordination bond could be formed between the reduced chromium ions onto the composite surface, which avoids escaping Cr(III) ions to purified water72.

Physical interactions

Electrostatic interaction

Undoubtedly, electrostatic interaction is the most effective adsorption pathway that is regarded during the setup of the adsorption system since it is essential to select adsorbent with opposite surface charge to the targeted adsorbate. Noteworthy, pioneering studies have reported that the electrostatic interaction is the initial step that grasps the pollutant from the bulk solution to the adsorbent surface, then the adsorbed pollutant could interact with the adsorbent by other interactions, such as reduction, coordination bond, etc. The ZVCo-MIL-88 A(Fe)@β-CD composite possesses a high positive surface charge fulfilled 21.11 mV at pH = 3, which magically attracts the anionic CrO42− from wastewater to its surface by the potent electrostatic interactions.

Pore filling

Porosity is one of the significant criteria of efficient adsorbents since the pores can uptake the pollutants inside them, with one condition, the pore size of the adsorbent be larger than the radius of pollutants. Interestingly, the ZVCo-MIL-88 A(Fe)@β-CD composite contains loose cavities of β-CD that participate in the adsorption processes throughout the pore-filling mechanism. The pore radius of Cr(VI) is 0.052 nm and the cavity diameter of β-CD ranges from 0.6 to 0.65 nm, reflecting the breadth of the β-CD cavities to contain amounts of the Cr(VI) ions.

Accordingly, the Cr(VI) species adsorbed on the ZVCo-MIL-88 A(Fe)@β-CD composite throughout the chemical pathways, which are reduction interaction and coordination bonds; in addition, the physical pathways, including electrostatic interaction and pore filling, as shown in Fig. 10.

Fig. 9
figure 9

The XPS spectra of the Cr(VI)-loaded ZVCo-MIL-88 A(Fe)@β-CD; (a) Wide-spectrum, (b) Cr2p, (c) Fe2p, (d) Co2p, and (e) O1s.

Full size image
Fig. 10
figure 10

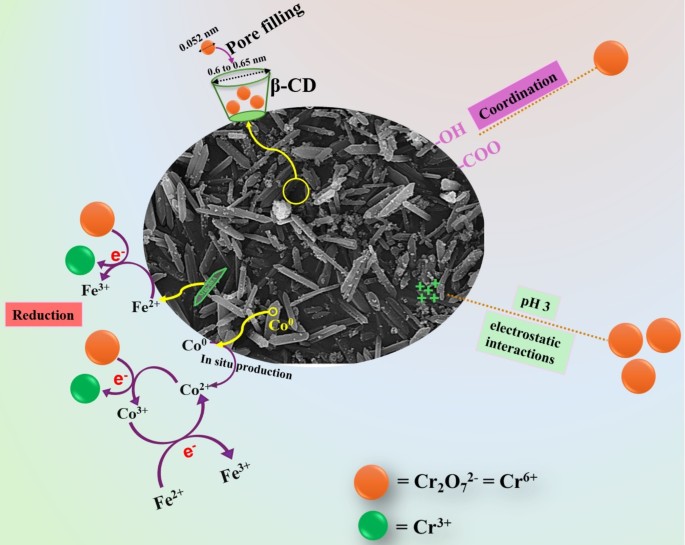

Schematic representation of the Cr(VI) adsorption onto the ZVCo-MIL-88 A(Fe)@β-CD composite.

Full size image
Comparison study

Table 4 lists a comparison between our study and previous pioneering research work, taking into consideration clarifying the optimum adsorption condition and adsorption mechanism. In light of this compiled data, our study provides an efficient adsorbent of ZVCo-MIL-88 A(Fe)@β-CD for removing the detrimental Cr(VI) with high efficacy in a short processing time.

Table 4 A comparison study between the adsorption performance of ZVCo-MIL-88 A(Fe)@β-CD and other previous reported adsorbents.
Full size table

Conclusion

Shortly, the magnetic adsorbent of the ZVCo-MIL-88 A(Fe)@β-CD composite was synthesized by the post-synthetic procedure. The VSM plot represented a super-paramagnetic hysteresis loop of ZVCo-MIL-88 A(Fe)@β-CD with a higher saturation magnetization of 17.19 emu/g. Moreover, the zeta potential curve clarified that the zero-charge point of the composite surface was at pH = 7.23, with a zeta potential value of 21.11 mV at pH = 3. The lab experiments demonstrated the eminent adsorbability and reusability of ZVCo that boosted the Cr(VI) removal % and reusability of MIL-88 A(Fe)@β-CD from 73.07 to 94.02% and 27.24 and 84.98% after its decoration with 10 wt% of ZVCo. Notably, the best adsorption performance of ZVCo-MIL-88 A (Fe)@β-CD towards the Cr(VI) ions occurred at a highly acidic medium and room temperature after an equilibrium time of an hour. The data analysis of the experimental results of the Cr(VI) adsorption implied the preference of the Freundlich and Langmuir isotherm models and Pseudo second-order kinetic model to model the adsorption process inside the Cr(VI)/ZVCo-MIL-88 A(Fe)@β-CD adsorption system. The mechanistic investigation supposed that reduction reaction, coordination bonds, electrostatic interactions, and pore-filling are the possible pathways to adsorb Cr(VI) onto ZVCo-MIL-88 A(Fe)@β-CD.
