From: Integration of transcriptomics and metabolomics data revealed role of insulin resistant SNW1 gene in the pathophysiology of gestational diabetes

Fig. 2

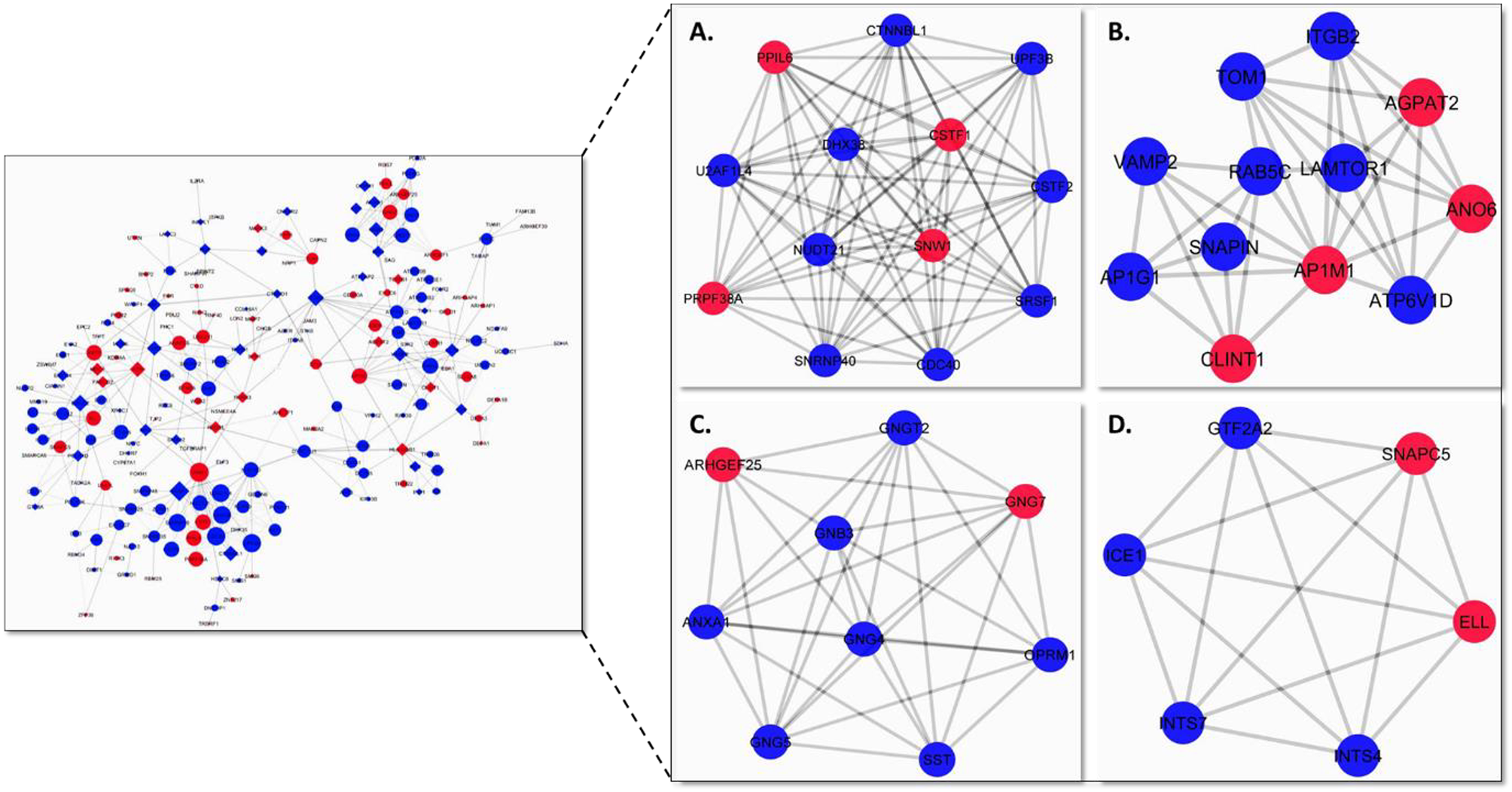

Network Construction and module extraction: Protein-protein interaction network of identified DEGs were constructed using STRING and Cytoscape. Most significant modules were extracted from the main network using MCODE plugin of the cytoscape. Module extraction led to the identification of four most significant modules. Red indicates up-regulated DEG while blue indicate down-regulated DEG.
