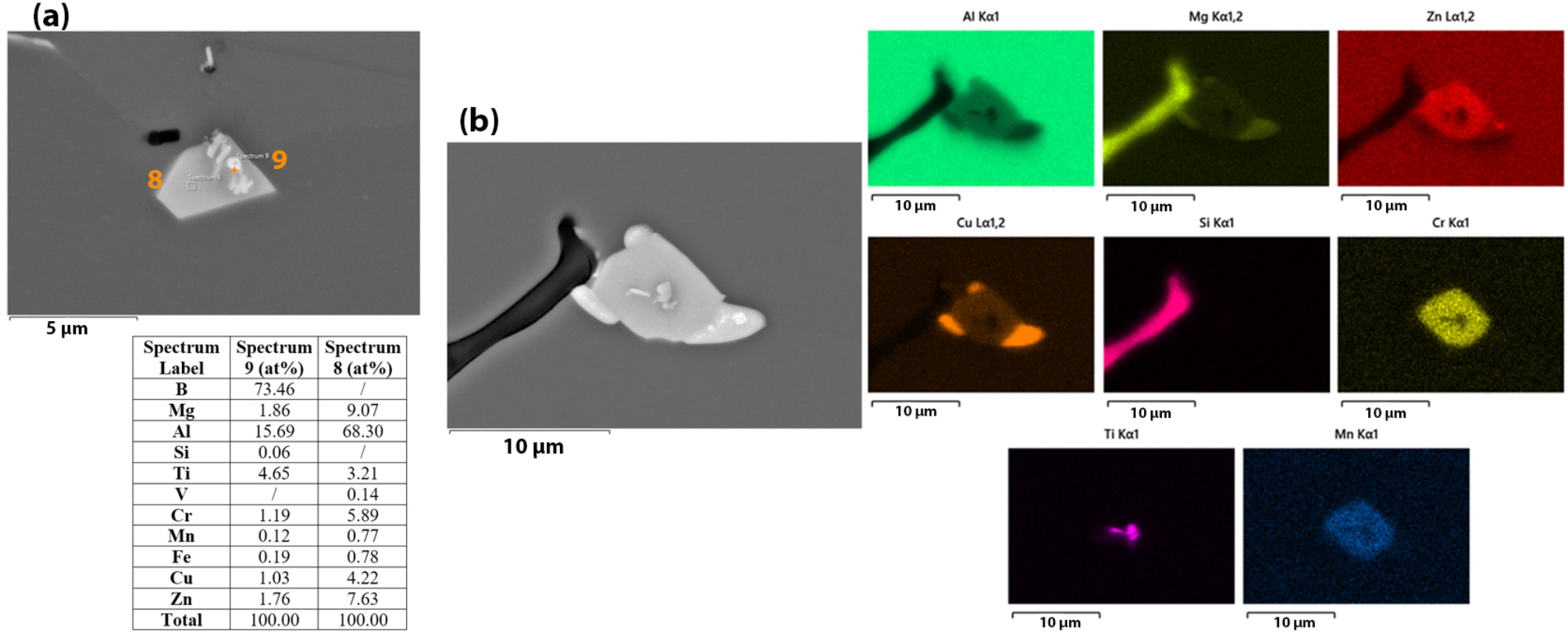

Fig. 9
From: Microstructure evolution during solution annealing of an Al–Zn–Mg–Cu alloy with La additions
Sample A1 (a) the areas analyzed with EDS (marked as spectrum in the table) are shown with the corresponding chemical composition in at% and (b) EDS element mapping images.
