Fig. 3
From: Precipitation isotopes and monsoon dynamics in the core monsoon zone of India

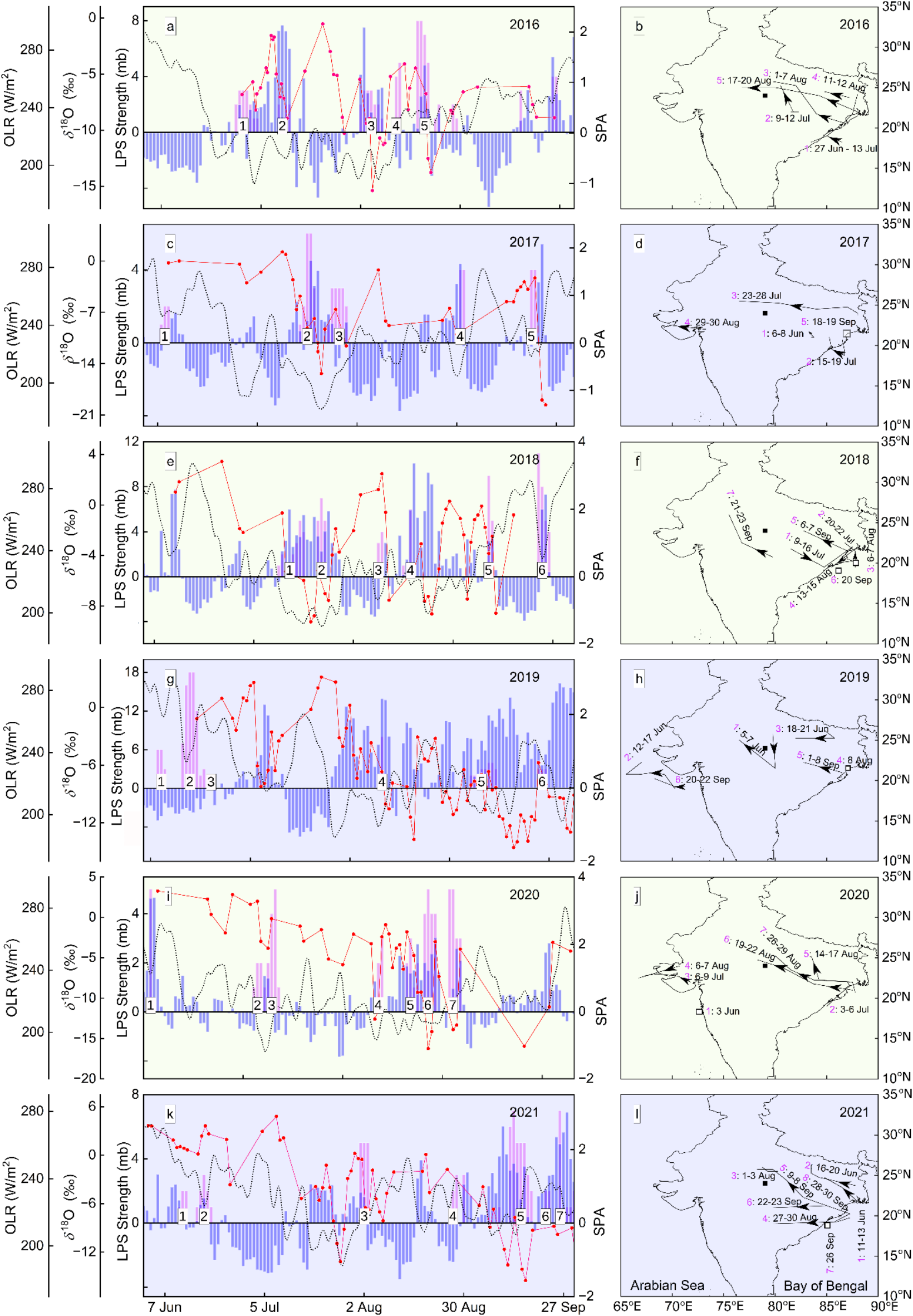

Precipitation dynamics of the core monsoon zone and their isotopic record at Sagar. Left column (a,c,e,g,i,k). The magenta bars depict the LPS events, while the blue bars represent the standardized precipitation anomaly. The precipitation δ18O is shown by the red line, and OLR by the dotted line. Right Column (b,d,f,h,j,l). The LPS tracks during the monsoon season. Each track is labelled by a number that matches the corresponding event in the left column. The arrows on the tracks indicate the direction of LPS movement. The LPS that did not move considerably is shown by a small rectangular open box. The filled black box represents the Sagar rainwater collection site.
