From: Precipitation isotopes and monsoon dynamics in the core monsoon zone of India

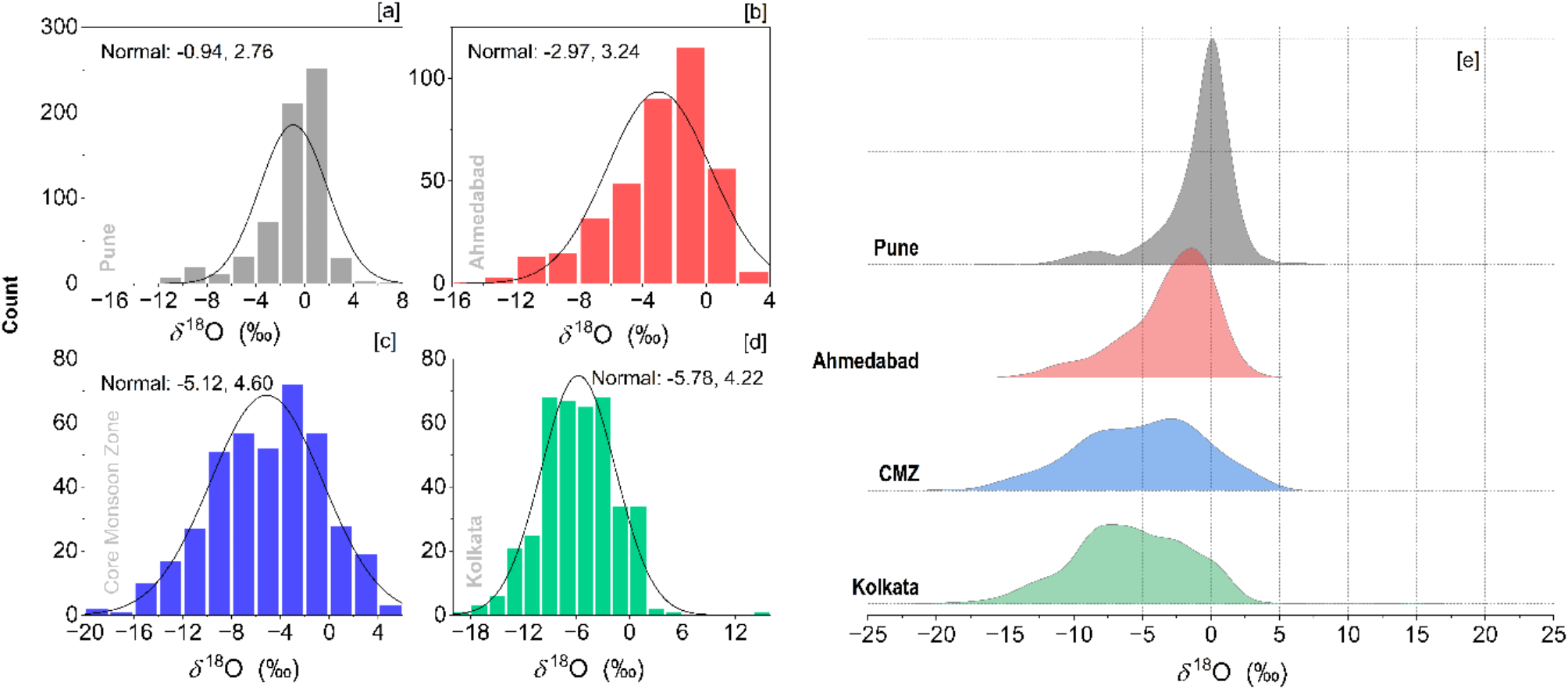

The distribution patterns of precipitation oxygen isotopes for four distinct regions-Pune (a), Ahmedabad (b), the Core Monsoon Zone (c), and Kolkata (d), are presented. For each region, the mean and standard deviation are calculated and mentioned in the top left corner of the respective boxes. Utilising these mean values, a normal distribution function is plotted for each site, depicted by the black line. The diagram in the right panel (e) illustrates the distribution functions of all sites aligned on a common x-axis, highlighting their relative variability with an arbitrary y-axis value.
