Fig. 4
From: Phase-free traffic signal control for balanced flow in sensor-limited environments

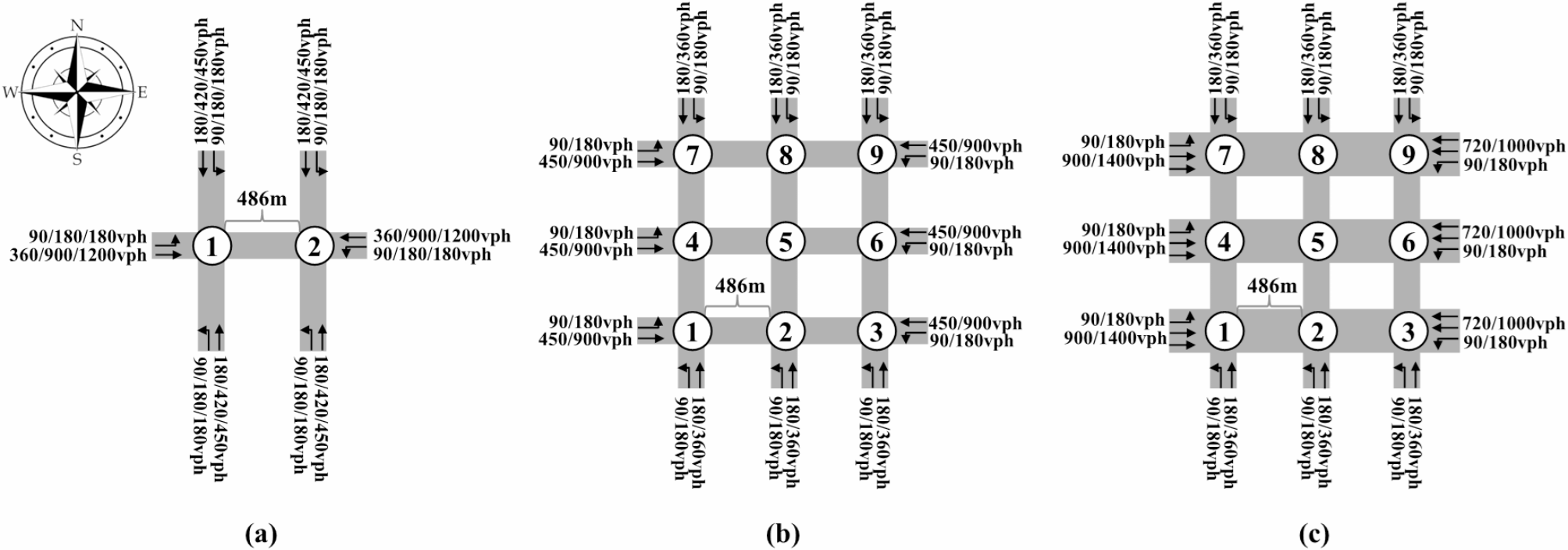

Case study layouts: (a) two signalized intersections (free flow/saturated/oversaturated conditions), (b) 3 × 3 grid network with symmetrical lanes (free flow/saturated conditions), and (c) 3 × 3 grid network with asymmetrical lanes (free flow/saturated conditions).
