Fig. 3
From: Thick film formation on Li-O2 cathodes – breaking the true capacity barrier

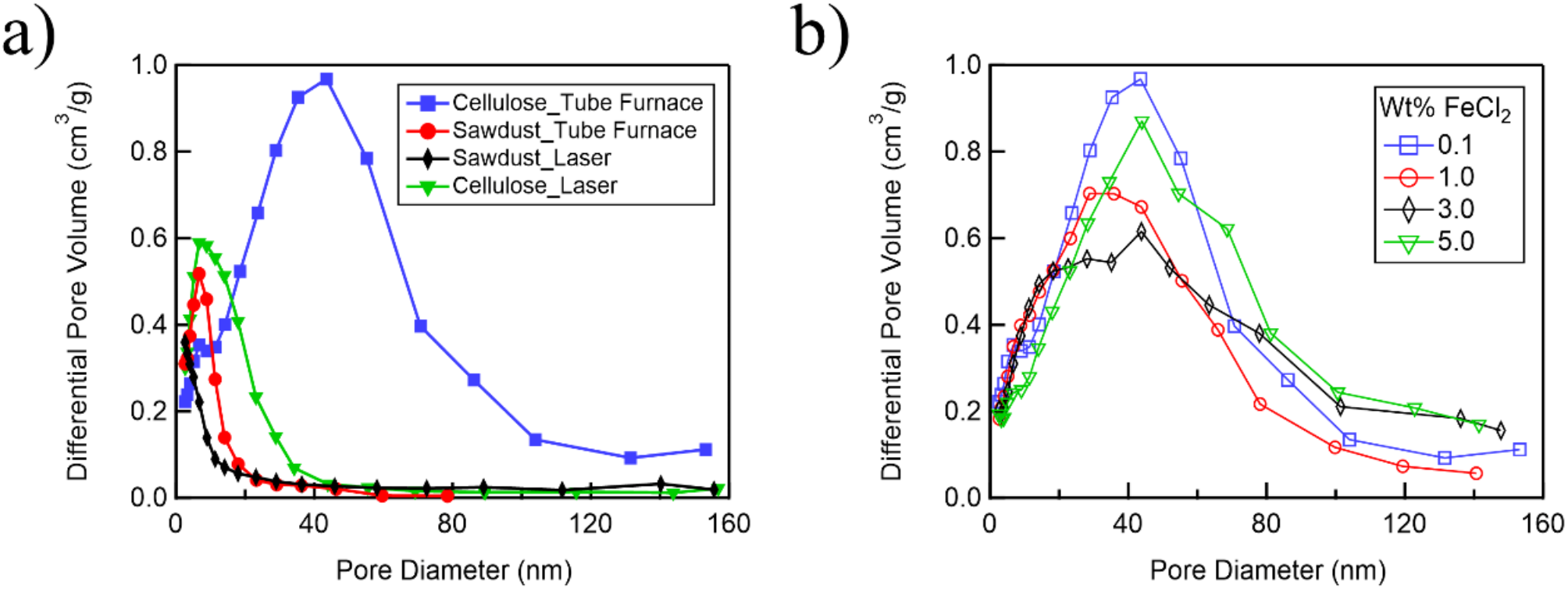

Pore diameter distributions of CNCs (a) made from sawdust and cellulose in both the tube furnace and laser using 0.1 wt% FeCl2 and (b) made from cellulose in the tube furnace.
