Fig. 5

From: IR thermography & NN models for damaged component thickness detection

Fig. 5The alt text for this image may have been generated using AI.

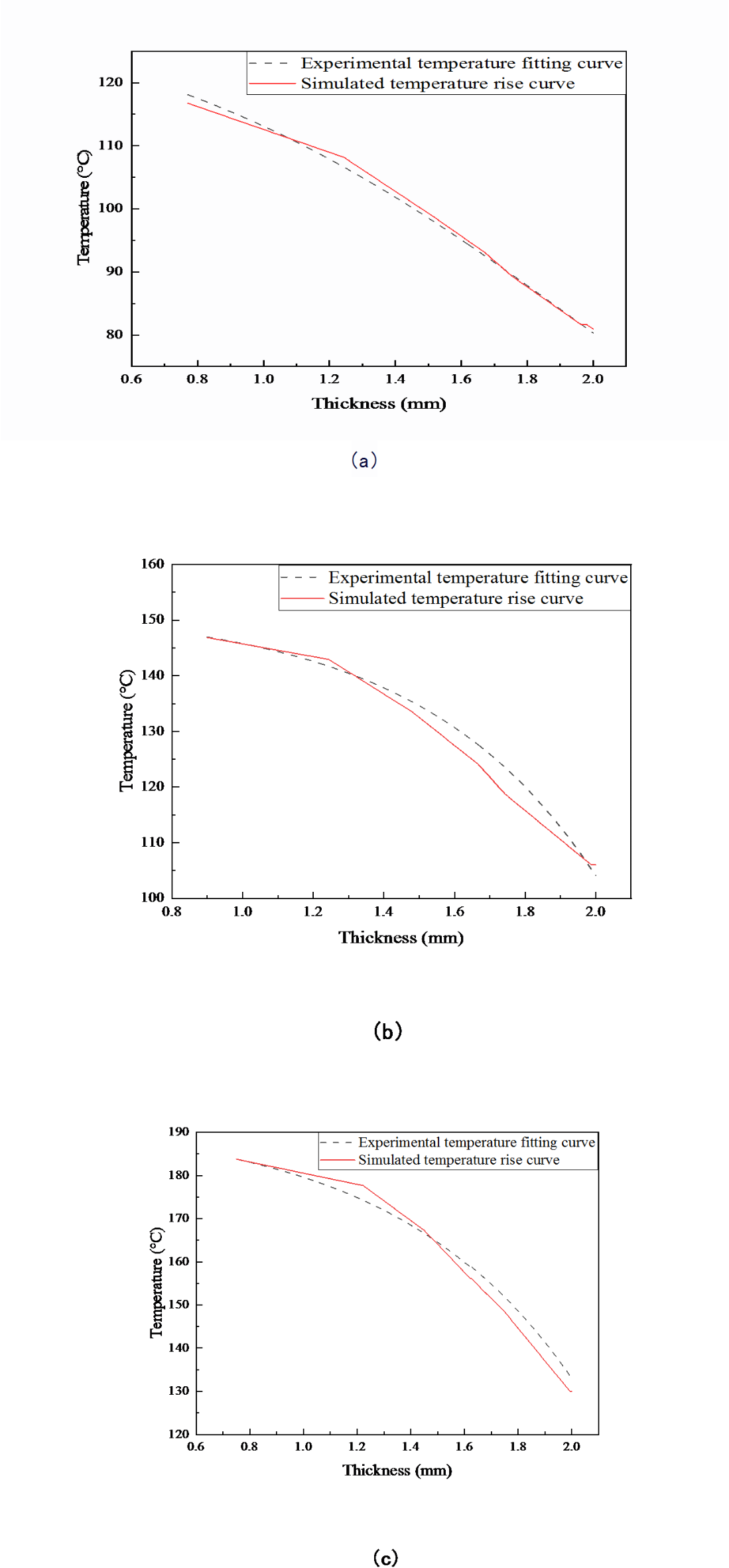

Simulation and fitting of temperature rise curves for 2 mm miter wear plates under different heating temperatures. (a) Heating to 80 degrees Celsius simulated and Fitting experimental temperature rise curves. (b) Heating to 106 degrees Celsius simulated and experimental temperature rise curves. (c) Heating to 130 degrees Celsius simulated and Fitting experimental temperature rise curves.
