Introduction

Infrared thermography technology, with its advantages of non-contact, non-destructive nature, high reliability, and suitability for large-area detection, has been widely applied in fields such as mechanical engineering1, energy conservation2, biology3, cultural heritage4, environmental science5, medicine6, electronics7, heat transfer8, chemistry9, physiology10, and increasingly, in the study of different types of materials11.Infrared thermographic technology is a non-destructive testing method for evaluating the condition of a sample by measuring its surface temperature field. As a non-contact detection method, it does not cause damage to the sample. However, this method requires consideration of factors such as the testing environment and temperature12,13,14,15,16,17,18,19. It is not feasible to determine the thickness of metal components solely based on their temperature obtained through infrared thermography, due to the limitations of infrared thermographic technology in terms of accuracy and rapid detection. To utilize the temperature data rapidly acquired by infrared thermography for detecting the thickness of metal components, it is advisable to integrate a neural network model. By employing the neural network model, the relationship between “temperature and thickness” can be established and a relevant database can be created, thereby achieving the purpose of rapid detection of the thickness of technical components. Currently, BP neural network technology is highly stable20 and possesses data recognition and simulation capabilities. When dealing with non-linear relationships, the advantages of BP neural networks become even more pronounced21. BP neural networks can effectively reduce the influence of other factors and serve as a model that ensures overall objectivity22. By combining BP neural networks with infrared thermographic technology, precise and rapid detection of the thickness of metal components can be achieved. This method not only ensures measurement accuracy but also improves detection efficiency.

Numerous scholars at home and abroad have conducted extensive research on BP neural network models. Alnaggar et al.23 leveraged deep neural networks to address challenges such as numerous model parameters and complex modeling. Song Ming et al.24 proposed a method to obtain the elastoplastic mechanical properties of materials by combining artificial intelligence BP networks, small punch testing, and finite element simulation to determine the material’s “stress-strain” curve. Zhang Lingyun et al.25 took aircraft wing ribs as their research object and predicted the springback of rubber bladder-formed aircraft wing rib convex flanges by combining finite element simulation and neural networks. Xie Peng et al.26 conducted research on predicting the remaining strength of externally corroded submarine pipelines based on deep learning. Chu Linhua et al.27 employed deep learning methods to train a prediction model for the “process-stress amplitude-fatigue life” during the cold rolling of zirconium alloy tubing. Guo Hong et al.28 proposed a tool wear prediction method that combines multi-sensor feature fusion with BP neural networks. The dimensionality-reduced fused features were input into a well-established BP neural network, and through nonlinear simulation analysis, wear amount prediction was achieved. Zhang Yue et al.29 introduced a tire wear detection algorithm based on BP neural networks, constructing an eight-layer neural network to learn from the training set and test it with the test set, achieving errors within 0.4 mm and accurately predicting tire wear during operation. Huang Yao et al.30 addressed the issue of wear prediction in extrusion molds by importing experimental data from finite element simulations into a BP neural network model for training. They predicted the wear values at various nodes of the extrusion mold. By comparing the predicted values from the BP neural network model, the calculated values from the finite element method, and the actual wear values, they found that the trained BP neural network model exhibited higher accuracy. Zhang Wei et al.31 investigated the influence of milling surface characterization parameters on milling wear and established a milling surface wear resistance prediction model based on BP neural networks. They input parameters such as the maximum height, maximum peak height, maximum pit height, minimum autocorrelation length, and surface feature height ratio of the milling surface into the milling surface wear resistance prediction model for training and learning. Comparison of the predicted wear amount with the actual wear value showed that the minimum error was only 6.18%. Cao Yuanxun et al.32 established a BP neural network abrasive belt wear rate model to predict the wear degree of abrasive belts. The results indicated that the BP neural network could quickly and accurately predict the abrasive belt wear rate. An Hua et al.33 proposed a tool wear condition monitoring method based on the BP neural network model. They used the BP neural network model to train and learn a large number of significant feature samples of original cutting force signals and their corresponding tool wear values as inputs to predict the tool wear values.B. Zhao et al.34 constructed a finite Ridgelet neural network optimized by the improved firefly algorithm. The prediction procedure of hydrogen pipeline is designed. It can effectively predict the safety status of the hydrogen gas pipeline.

According to the relevant neural network literature35,36,37,38, there are few studies on the rapid detection of the thickness of damaged metal members through the neural network in the defect thickness detection. Therefore, in this paper, the excitation temperature is controlled to detect the metal defect thickness by combining the technology of infrared thermal wave technology and finite element simulation and BP neural network prediction model. And through COMSOL finite element simulation to verify the correlation with the experimental results, resulting in a database of “excitation temperature-metal thickness”. Follow-up the data obtained into the BP neural network prediction model for training and prediction, verify the neural network can quickly detect the feasibility of damage metal thickness, realize the rapid detection of metal component defects, for the neural network damage metal component thickness rapid nondestructive testing technology in the field of engineering application provide reference.

Experiment and methodology

Defect detection method

As one of the non-destructive testing techniques, infrared thermography detection operates by injecting a high-energy infrared pulse into the tested sample within a short period of time. Due to the inhomogeneity of the sample’s material and shape (defects), the temperatures of different regions of the sample will vary under the influence of thermal conductivity and thermal diffusion39,40. When heat from an excitation source is applied to an obliquely cut metal plate, it conducts heat along the thickness direction, temporarily ignoring heat transfer along the lateral or lengthwise directions, thus making mathematical analysis and calculations more straightforward. The principle of heat transfer is illustrated in Fig. 1.

Fig. 1
Fig. 1
Full size image

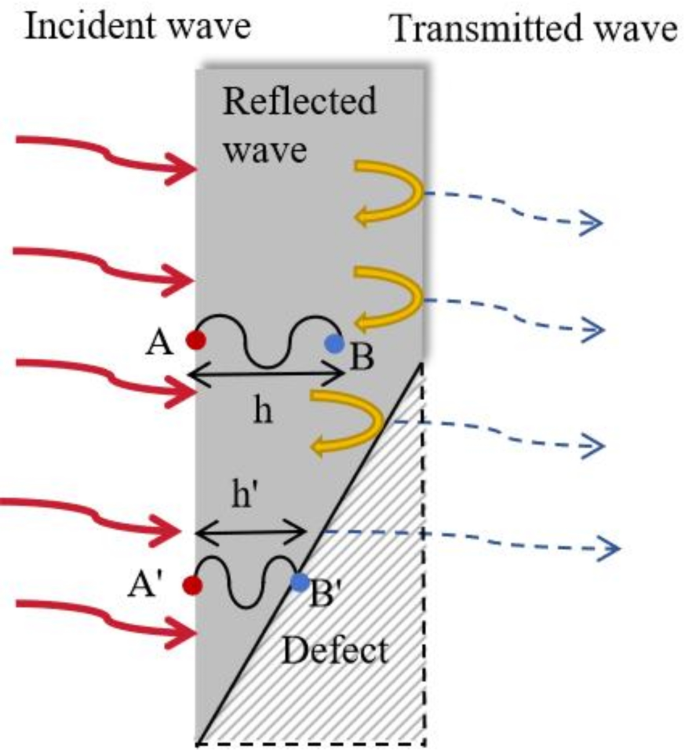

Principle of heat transfer.

It can be seen from Fig. 1 that B is the heat source at one point in the sample and the temperature after time t at point A, whose temperature expression is as follows:

$${T_B}(A,t)={T_A}{e^{-\frac{h}{\mu }}}\cos (\omega t-\frac{h}{\mu })$$
(1)

Where: TB(A,t) is the temperature after time t of point A, TA is the initial heating temperature of point A; h is the distance between two points; ω is the natural frequency of the sample; Among \(\mu =\sqrt {2\alpha /\omega }\);α is the thermal diffusivity of the material.

As can be seen from Fig. 1 and Eq. (1), under the same heating temperature, when the thickness h’ between two points is less than h, the temperature relationship at point B is TB’ > TB. This indicates that the different thicknesses of the iron plate will affect the temperature of the sample after excitation.

After the heat source A starts to stimulate the sample, the different lengths of heat conduction paths within the sample result in temperature variations for different thicknesses, thus creating temperature differences.

Infrared heat wave experiment

The material selected is a 50 mm x 50 mm x 2 mm iron plate, which undergoes an oblique cutting and wear process to form a trapezoidal cross-section.This is done to enable simultaneous observation of temperatures in both the damaged and undamaged regions during the excitation of the trapezoidal iron plate, thereby allowing for the acquisition of temperature difference data. The trapezoidal iron plate is divided into six thickness intervals: 2 mm–1.8 mm, 1.8 mm–1.73 mm, 1.73 mm–1.66 mm, 1.66 mm–1.44 mm, 1.44 mm–1.19 mm, and 1.19 mm–0.7 mm (as shown in Fig. 3). Subsequently, a fixed heating temperature is applied to the sample as thermal excitation, and the UTi260A infrared thermal imager is used to record thermal images from the front.

Fig. 2
Fig. 2
Full size image

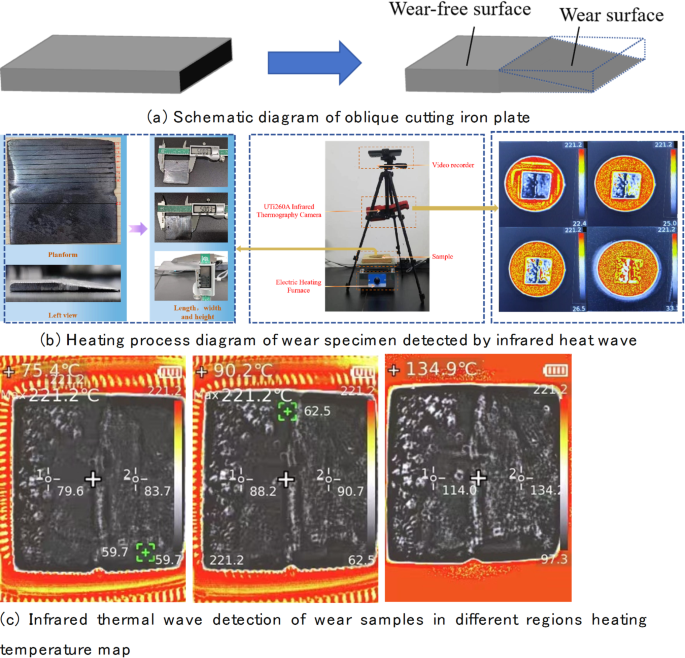

Infrared heat wave experiment.

As shown in Fig. 2, as the heating temperature continues to rise, the temperature rise rate on the oblique section is faster, and defects become more pronounced. This is due to the different heat conduction paths when heating the iron plate. As a special area of the iron plate, the geometry and surface condition of the oblique section make it easier for heat to accumulate and transmit rapidly in this area. The temperature rise rate on the oblique surface is more significant than that on other surfaces. Therefore, the degree of wear can be quantified by calculating the temperatures in defective and non-defective areas, and the temperature values can serve as an important indicator of the wear condition of the iron plate.

Establishment and analysis of finite element model

Mesh generation and material selection

Establish four models of metal components with different thicknesses, using Structural steel as the material. Conduct mesh generation on the models, where the 2 mm model has 323,444 tetrahedral mesh elements and 159,632 triangular mesh elements, with an average element quality of 0.5871; the 3 mm model has 221,256 tetrahedral mesh elements and 92,848 triangular mesh elements, with an average element quality of 0.6069; the 4 mm model has 217,688 tetrahedral mesh elements and 63,668 triangular mesh elements, with an average element quality of 0.6239; and the 5 mm model has 214,310 tetrahedral mesh elements and 45,986 triangular mesh elements, with an average element quality of 0.641. To better observe the temperature changes corresponding to different thicknesses, finer mesh generation is applied to thinner areas. A reasonable number of mesh elements not only saves computer resources and increases computation speed but also ensures computational accuracy. The mesh generation is illustrated in Fig. 3.

Fig. 3
Fig. 3
Full size image

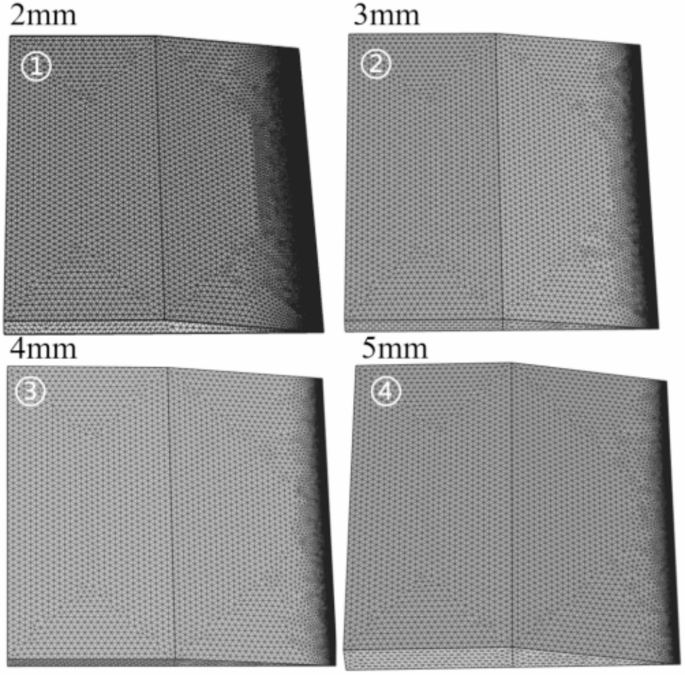

Finite element model of 2–5 mm ferromagnetic material diagonal wear plate.

Finite element simulation for thermal distribution

In the infrared thermal wave experiment, heat transfer primarily occurs through thermal radiation from the excitation source to the air, and then through convective heat transfer between the air and the test specimen, thereby heating the test specimen. To simulate the loading of the excitation source in the experiment, the heat transfer coefficient h in the simulation model is set to 750 W/(m2k), and the ambient temperature is set to 20 °C. Through simulation analysis, the thermal distribution contour plot of the finite element model can be obtained, as shown in Fig. 4.

Fig. 4
Fig. 4
Full size image

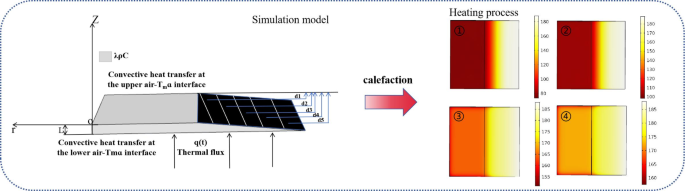

Simulation of heat distribution of mitre cut wear plate of iron plate material.

Correlation analysis between finite element simulation and experimental results

The 2 mm miter wear plate was heated to 80 °C, 105 °C, and 130 °C. By combining and analyzing the experimental temperature data with the simulated temperature data for the 2 mm miter wear plate, it was found that the trend of the experimental temperature rise curve was consistent with the simulated temperature rise curve, as shown in Fig. 5.

Fig. 5
Fig. 5
Full size image

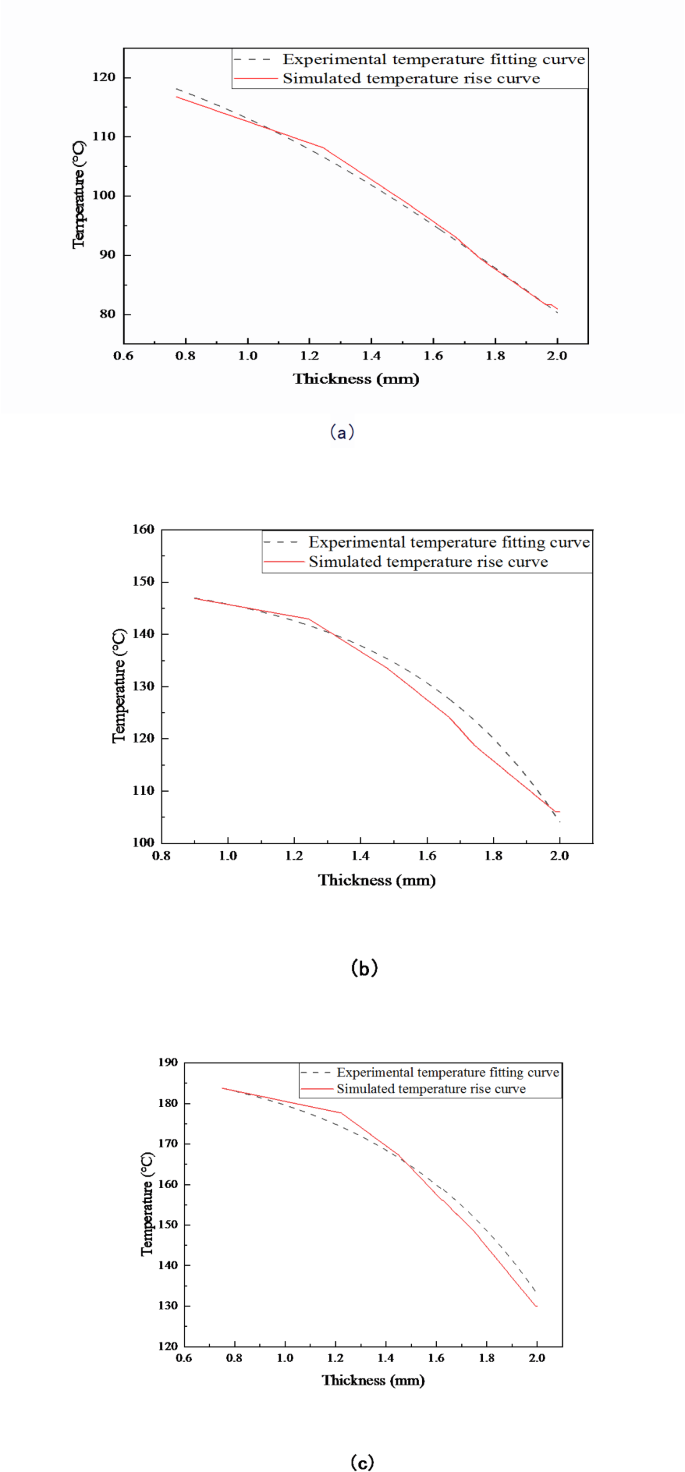

Simulation and fitting of temperature rise curves for 2 mm miter wear plates under different heating temperatures. (a) Heating to 80 degrees Celsius simulated and Fitting experimental temperature rise curves. (b) Heating to 106 degrees Celsius simulated and experimental temperature rise curves. (c) Heating to 130 degrees Celsius simulated and Fitting experimental temperature rise curves.

Through the experiment, the iron plates with different wear degrees were heated, and the experimental data obtained provided the verification basis for the subsequent numerical simulation, ensuring the accuracy and reliability of the simulation results. The numerical simulation is consistent with the experimental results, which indicates that the numerical simulation can be an effective supplement or substitute for the experiment.

Through numerical simulations, the temperature distribution can be directly related to the material thickness. This method not only improves the measurement efficiency, but also reduces the human error. Based on a large number of simulation and experimental data, the “excitation temperature-metal thickness” database is constructed. In the field of infrared detection, the thickness of the measured material can be quickly and accurately inferred, which provides favorable support for the development of nondestructive detection technology.

Temperatures of different wear thicknesses at various heating temperatures

Metal components with different wear thicknesses ranging from 2 mm to 5 mm were heated to temperatures of 20 °C, 40 °C, 60 °C, 80 °C, 100 °C, 120 °C, 140 °C, and 160 °C, respectively. Temperature calculation formulas for metal components with varying wear thicknesses at different heating temperatures were established, as shown in Fig. 6. This laid the foundation for training and predicting simulation data using BP neural networks.

Fig. 6
Fig. 6Fig. 6
Full size image

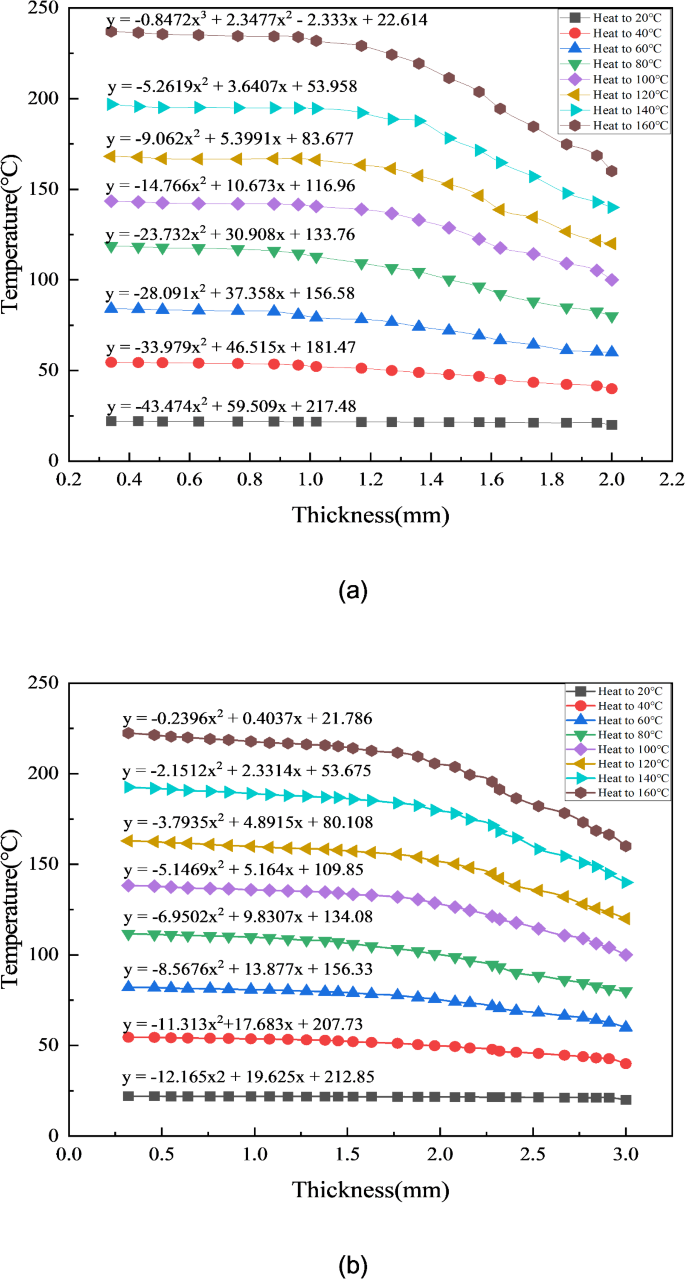

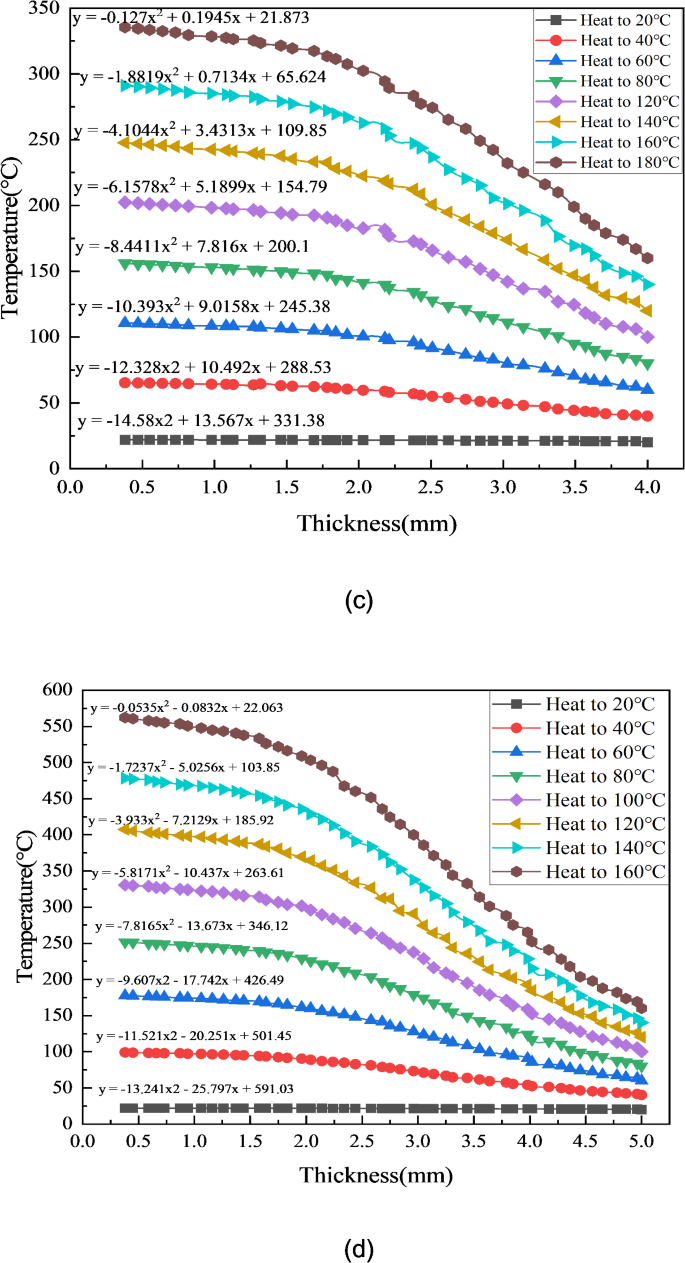

Temperature of metal components corresponding to different wear thicknesses under different heating temperatures. (a) 2 mm miter wear metal members at different heating temperatures. (b) 3 mm miter wear metal members at different heating temperatures. (c) 4 mm miter wear metal members at different heating temperatures. (d) 5 mm miter wear metal members at different heating temperatures.

As can be seen from Fig. 6, as the heating temperature continues to increase, the slope of the fitted temperature curve for the worn and unworn areas of the metal component gradually steepens, and the temperature difference between them also gradually widens.

Training of BP neural network model and wear prediction

Neural network structure for damage prediction of metal components

A neural network is an abstract mathematical model that connects multiple neurons in a certain topological structure. It possesses a high degree of nonlinear mapping capability, robust parallel computing power, and adaptive learning ability. The neural network trains itself using input samples and target output samples. After each training session, the output value is compared with the target sample. If the output does not meet the specified error accuracy, this information is fed back to each neural layer. Based on the selected algorithm, each neural layer will adjust its weights and thresholds to enable the network to establish the specified nonlinear mapping relationship between input and output. A well-trained BP neural network possesses generalization capability, capable of providing appropriate outputs for inputs not included in the sample set.

The design of this model employs a BP neural network with 2 input layers, 10 hidden layers, and 1 output layer, as illustrated in Fig. 7.

Fig. 7
Fig. 7
Full size image

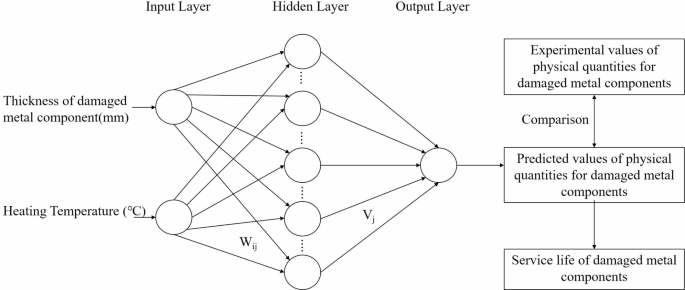

Wear prediction model based on BP neural network.

Among them, Wij represents the connection weights between the input layer and the hidden layer, while Vj denotes the connection weights between the hidden layer and the output layer. Typically, the training data and prediction data are set in an 8:2 ratio. In this study, a two-factor process experiment was designed, and all data measured from both experiments and simulations were used for model training.

Training and prediction of BP neural network model

The target function values obtained through finite element simulation software are used as learning samples to train the neural network model established above. We set 80% of the data derived from the simulation software as the training set and the remaining 20% as the test set. The training parameters are configured with the number of iterations epochs set to 1000, the error threshold goal set to 1e-6, and the learning rate lr set to 0.01.

The simulated data for 2 mm metal components, after 1000 iterations of training and weight adjustments, achieved a mean squared error of 0.0021344 for the network, with a coefficient of determination R2 of 0.35336. The training is now complete. The training plot for the 2 mm simulated data is shown in Fig. 8, and the prediction plot is shown in Fig. 9.

Fig. 8
Fig. 8
Full size image

Training diagram of 2 mm simulation data.

Fig. 9
Fig. 9
Full size image

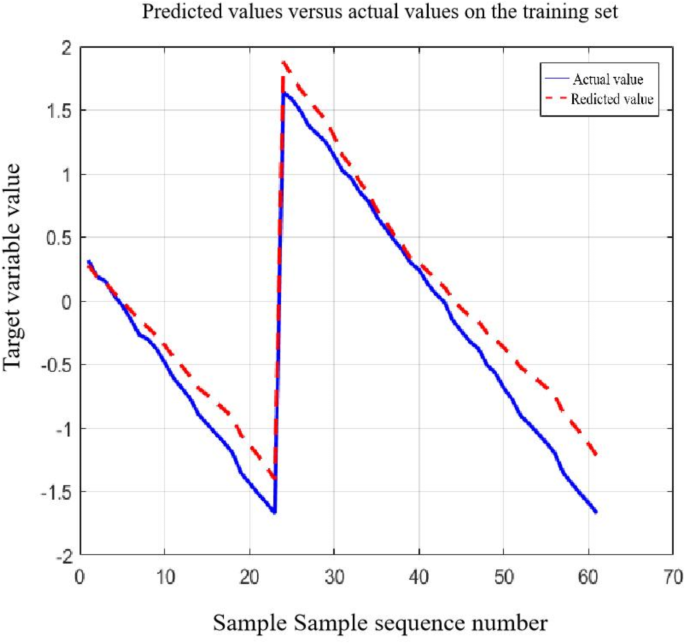

Prediction of 2 mm simulated data.

The simulated data for 3 mm metal components, after undergoing 1,500 iterations of training and weight adjustments, achieved a mean squared error of 0.0050133 for the network. The coefficient of determination R2 was 0.96115. The training was completed. The training plot for the 3 mm simulated data is shown in Fig. 10, and the prediction plot is shown in Fig. 11.

Fig. 10
Fig. 10
Full size image

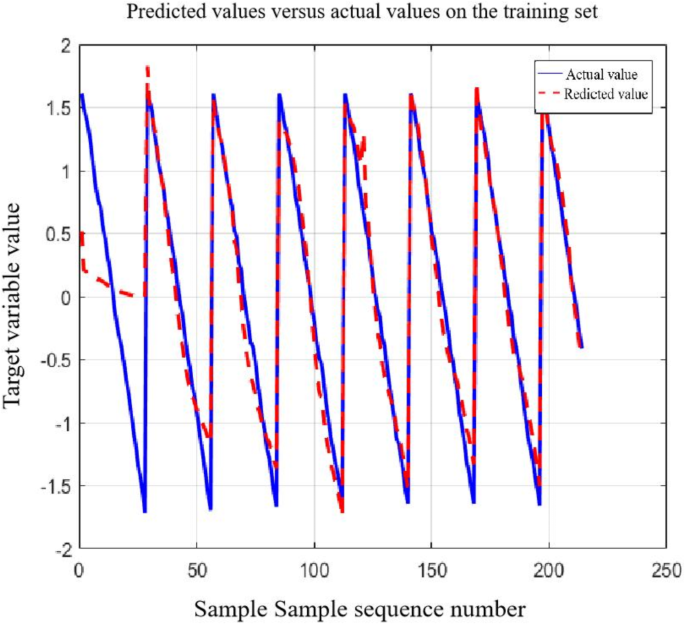

Training diagram of 3 mm simulation data.

Fig. 11
Fig. 11
Full size image

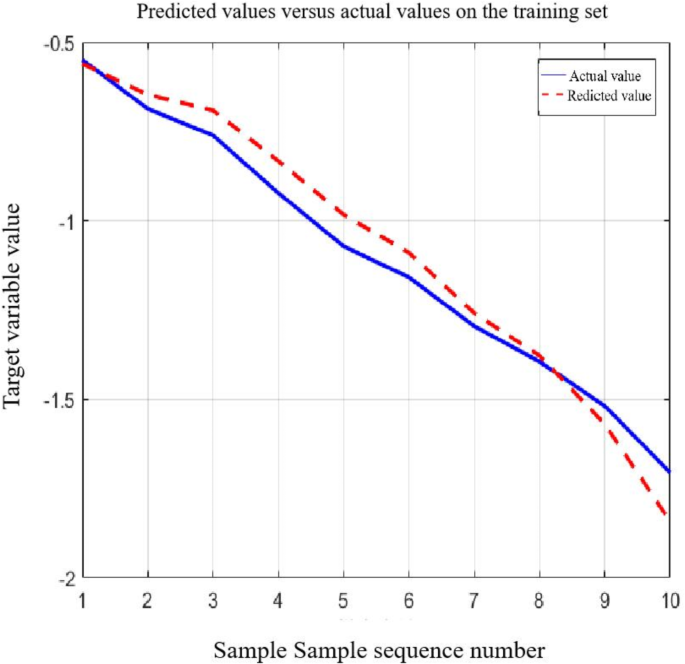

Prediction of 3 mm simulated data.

The simulated data for 4 mm metal components, after undergoing 1,300 iterations of training and subsequent weight adjustments, achieved a mean squared error of 0.0010381 for the network. The coefficient of determination R2 was 0.98324. The training was completed. The training plot for the 4 mm simulated data is shown in Fig. 12, and the prediction plot is shown in Fig. 13.

Fig. 12
Fig. 12
Full size image

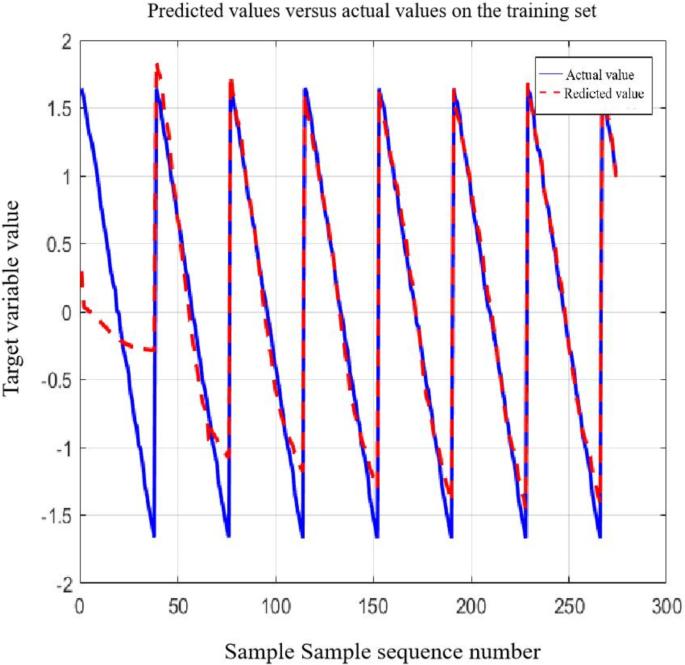

Training diagram of 4 mm simulation data.

Fig. 13
Fig. 13
Full size image

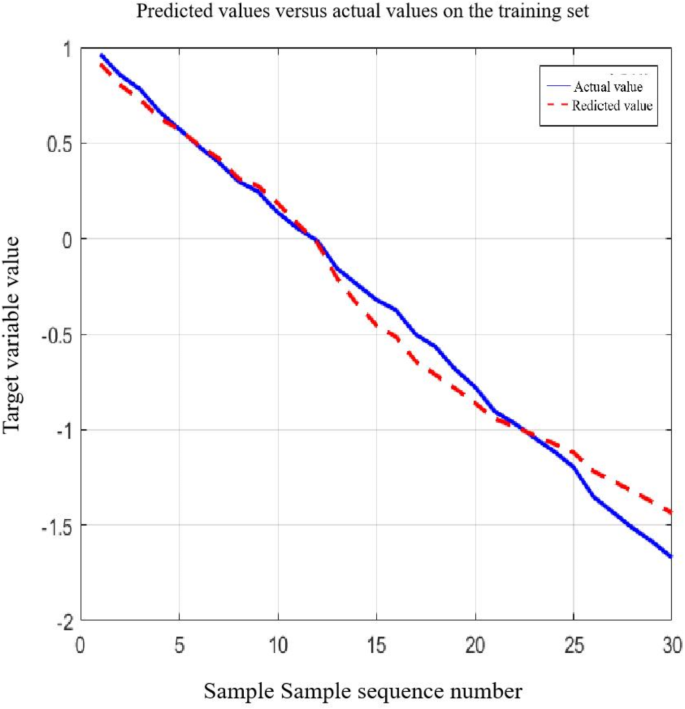

Prediction of 4 mm simulated data.

The simulated data for 5 mm metal components, after undergoing 1000 training iterations and weight adjustments, achieved a mean squared error of 0.020887 for the network. The coefficient of determination R2 was 0.97591. The training was completed. The training plot for the 5 mm simulated data is shown in Fig. 14, and the prediction plot is shown in Fig. 15.

Fig. 14
Fig. 14
Full size image

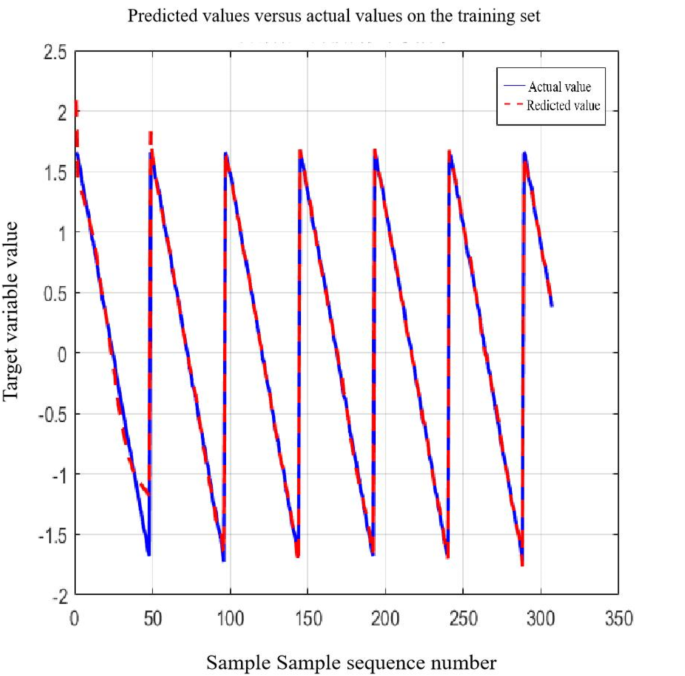

Training diagram of 5 mm simulation data.

Fig. 15
Fig. 15
Full size image

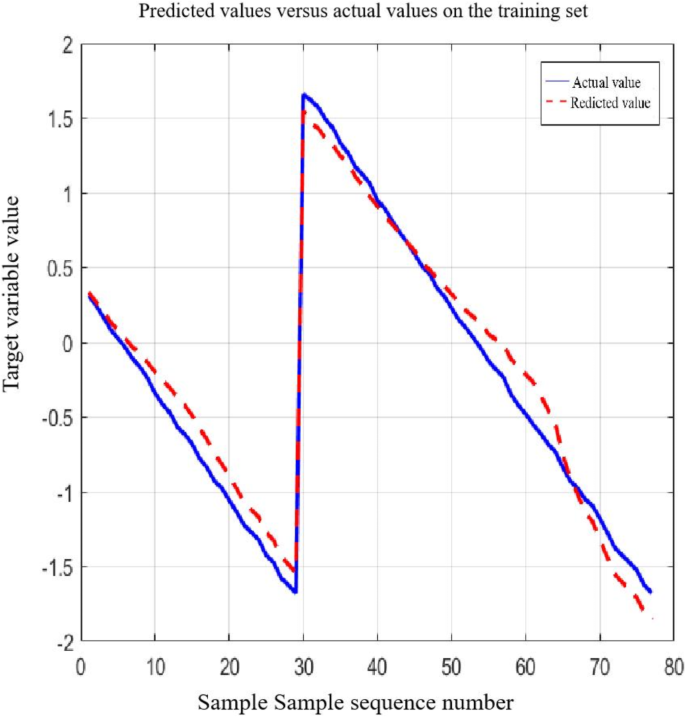

Training diagram of 5 mm simulation data.

Under different thicknesses of metal components, the predicted values output by the neural network model exhibited a high degree of consistency with the actual values obtained through precise measurements. This consistency is not only reflected in the numerical closeness but also in the alignment of trends and distribution patterns. This finding strongly validates the feasibility and potential of BP (Back Propagation) neural networks in rapidly and accurately detecting the damage thickness of metal components. Leveraging its powerful nonlinear mapping ability and self-learning capability, the BP neural network can efficiently handle complex damage detection tasks, thereby significantly improving detection efficiency while ensuring detection accuracy. The results of this study not only provide solid experimental evidence for the application of BP neural networks in the field of metal component damage detection but also open up new ideas for the widespread application of neural network technology in engineering. It serves as a reference for the application of rapid detection technology using neural networks for the thickness of damaged metal components in the engineering field.

Conclusion

  1. (1)

    By setting the excitation temperature to 80℃, 105℃ and 130℃, the temperature fitting curve equation is established, and the mathematical relationship of “excitation temperature-metal thickness” is obtained.

  2. (2)

    Under consistent conditions such as heating temperature, ambient temperature, and thermal conductivity, numerical simulations were combined with infrared thermal wave experiments. The research showed that the simulated temperature rise curve basically coincided with the experimental temperature fitting curve, indicating that numerical simulations can serve as a substitute for experiments.

  3. (3)

    Through numerical simulation of “excitation temperature-metal thickness” database in the proportion of 8:2 training and prediction, found after training prediction data and the actual data, achieved the purpose of BP neural network to rapid detection of defect metal thickness, for the subsequent optimization of neural network structure and parameters, in order to improve the model prediction accuracy and generalization ability, combined with the Internet of things technology, realize the remote monitoring and data analysis, improve the monitoring efficiency and accuracy to lay the foundation.
