Fig. 5

From: Intelligent anti-jamming decision algorithm for wireless communication under limited channel state information conditions

Fig. 5

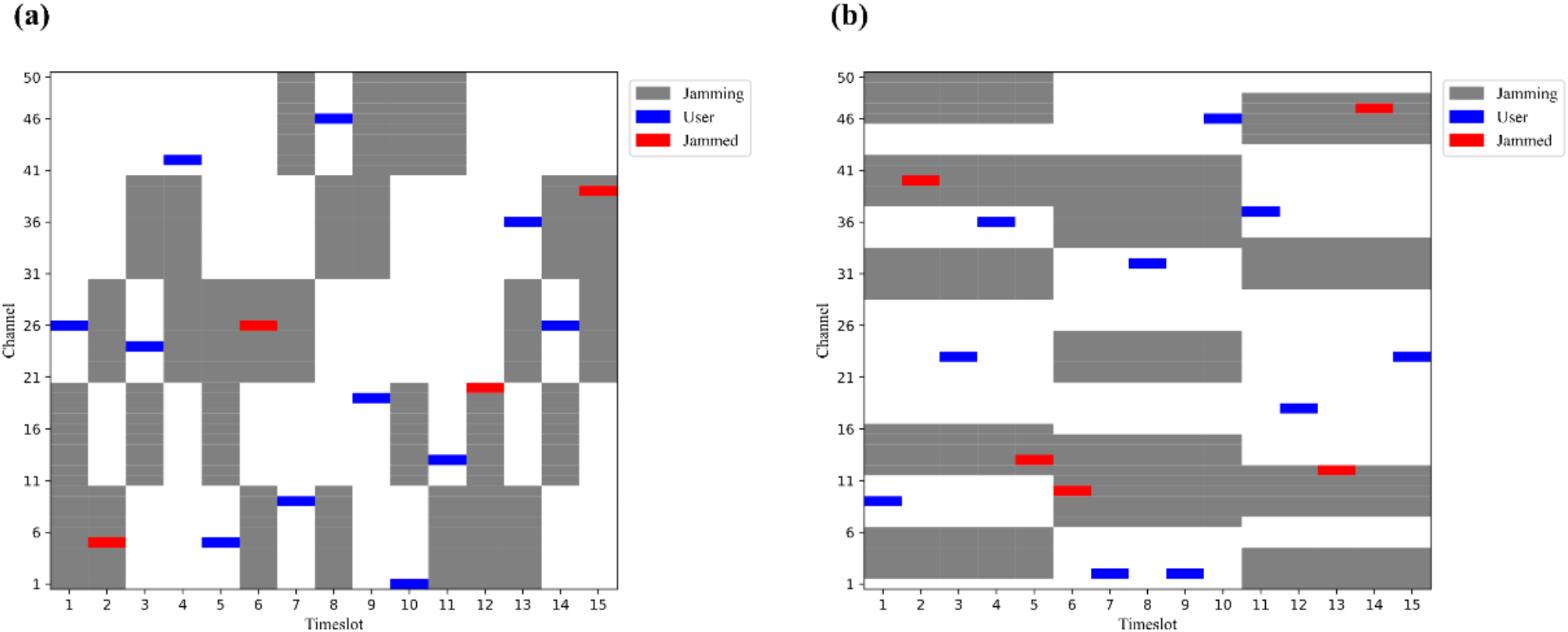

Time-frequency diagram of two kinds of jamming: (a) Periodic jamming; (b) Intelligent blocking jamming. The two images use gray and blue squares to represent the channel occupancy of jamming and communication behavior in each time slot, respectively. If the communication channel required by the user is jammed with, it is indicated by a red square.
