From: Bioinformatics analysis reveals key mechanisms of oligodendrocytes and oligodendrocyte precursor cells regulation in spinal cord Injury

Fig. 5

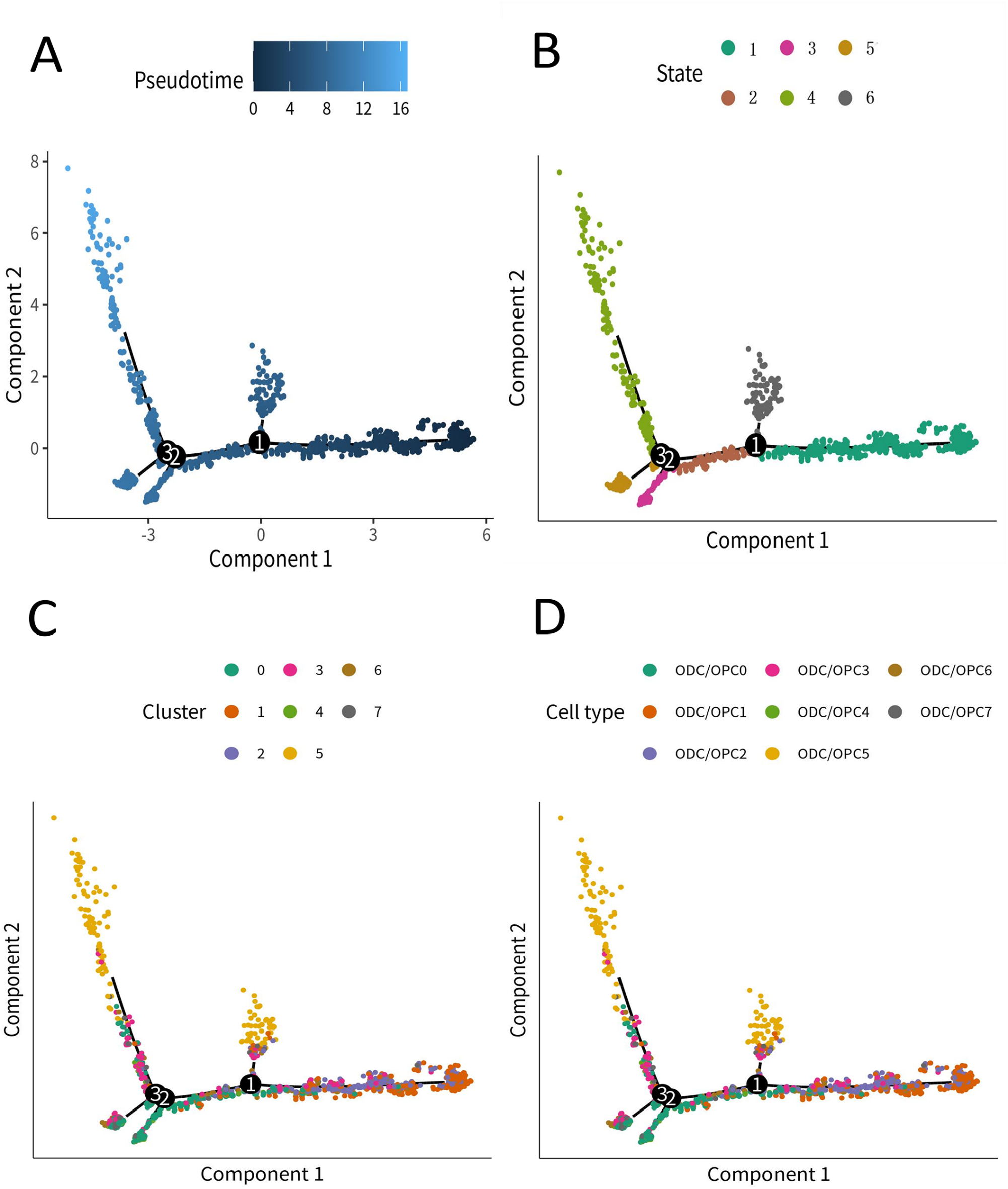

(A) The pseudo-time plot showed the differentiation sequence of ODC/OPCs. The darker the color, the more immature the ODC/OPCs might be. (B) The cell trajectory state plot illustrated the developmental trajectory of ODC/OPCs with 6 cell states shown in different colors. (C) The cluster plot illustrated the developmental trajectory of ODC/OPCs and all cell sub populations were illustrated in the trajectory. (D) The cell trajectory state plot showed the 6 different cell states of ODC/OPC, respectively.
