Fig. 16
From: An All-Metal Broadband Low SLL slot array antenna for use in 5G Sub-6 GHz networks

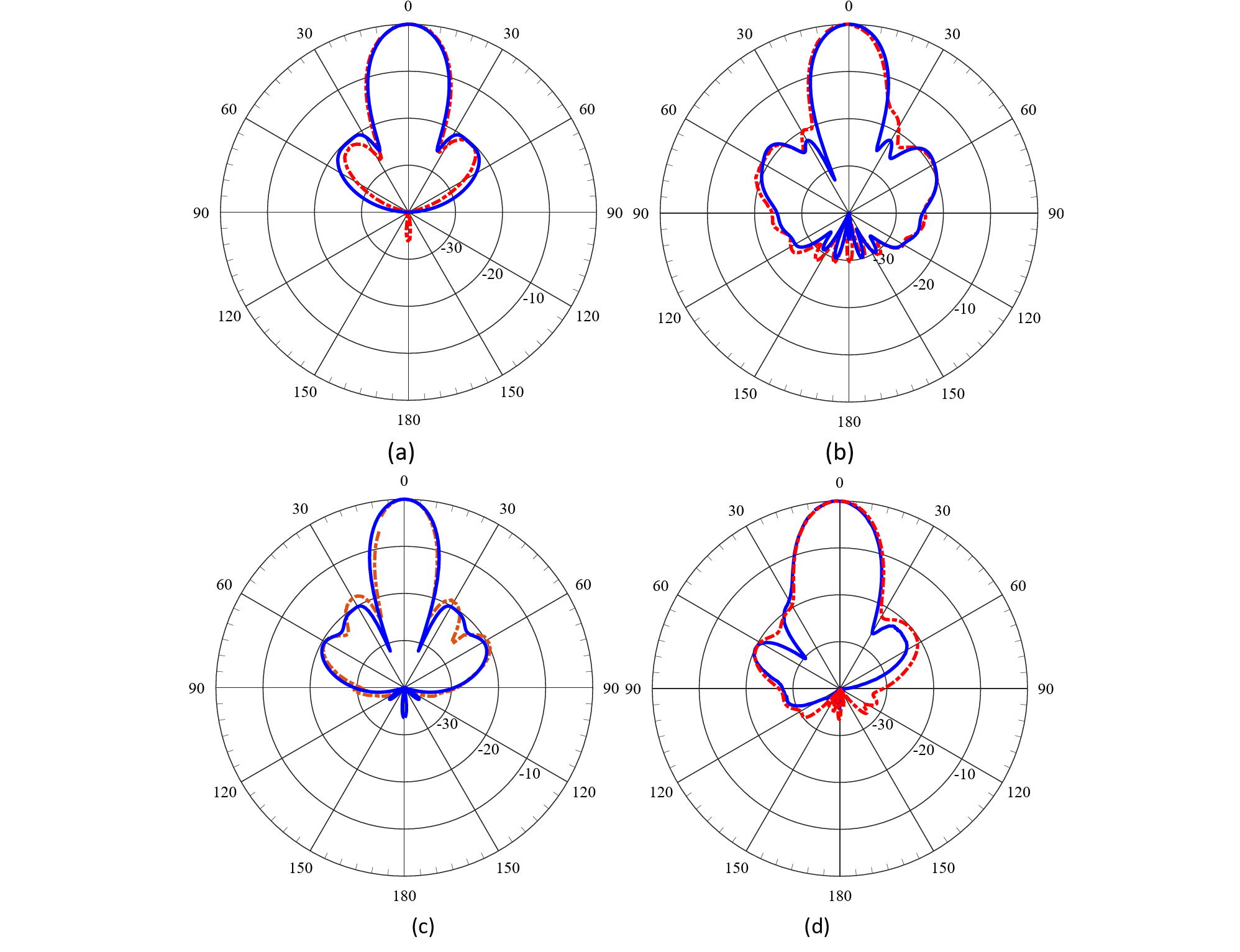

Simulated (solid lines) and measured (dashed-lines) normalized radiation patterns of antenna array in E- and H-planes at 3.3 GHz (a and b) and 3.8 GHz (c and d).
