From: Study on the fracture characteristics of overlying rock strata under different mining face widths

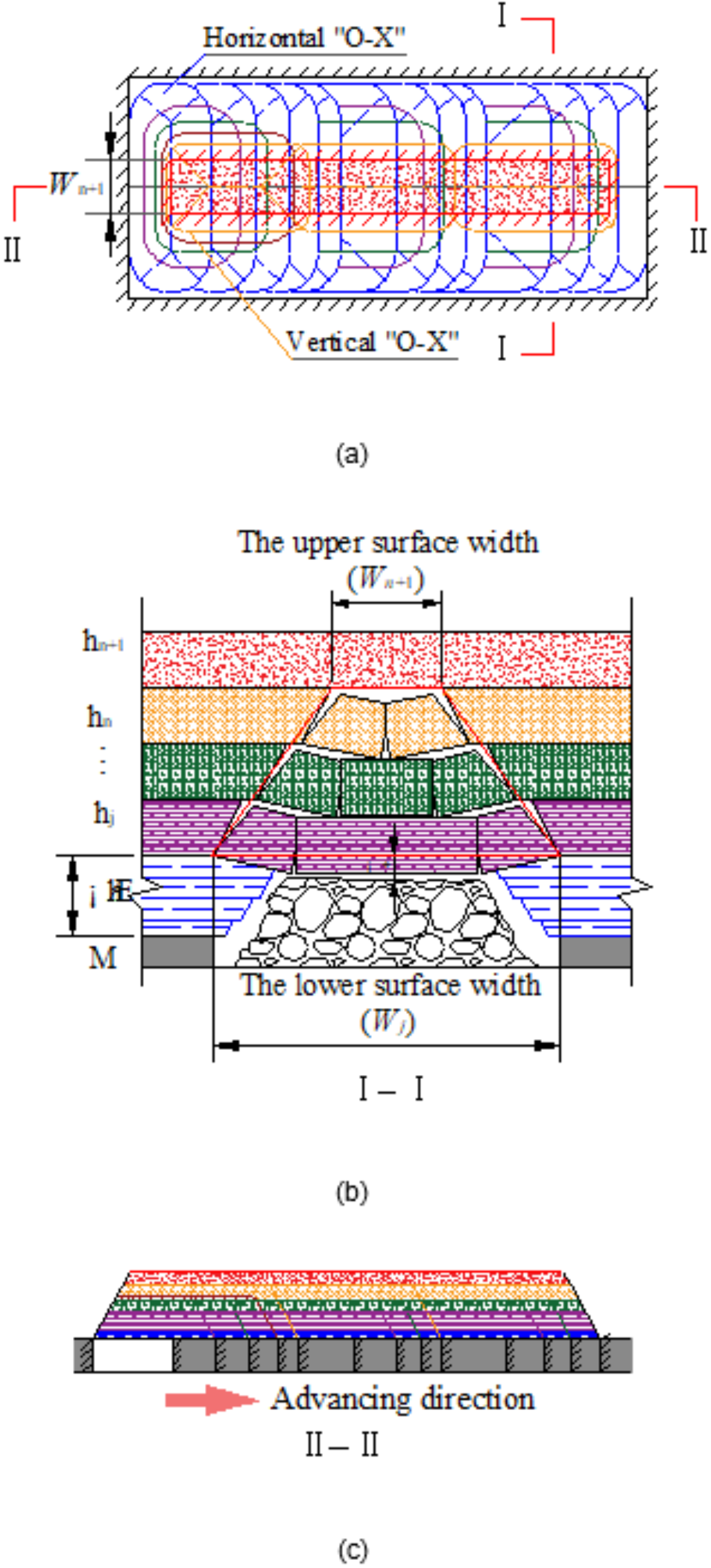

Schematic of periodic roof weighting during the working face mining period: (a) top view; (b) section I–I; (c) section II–II.
