Fig. 3

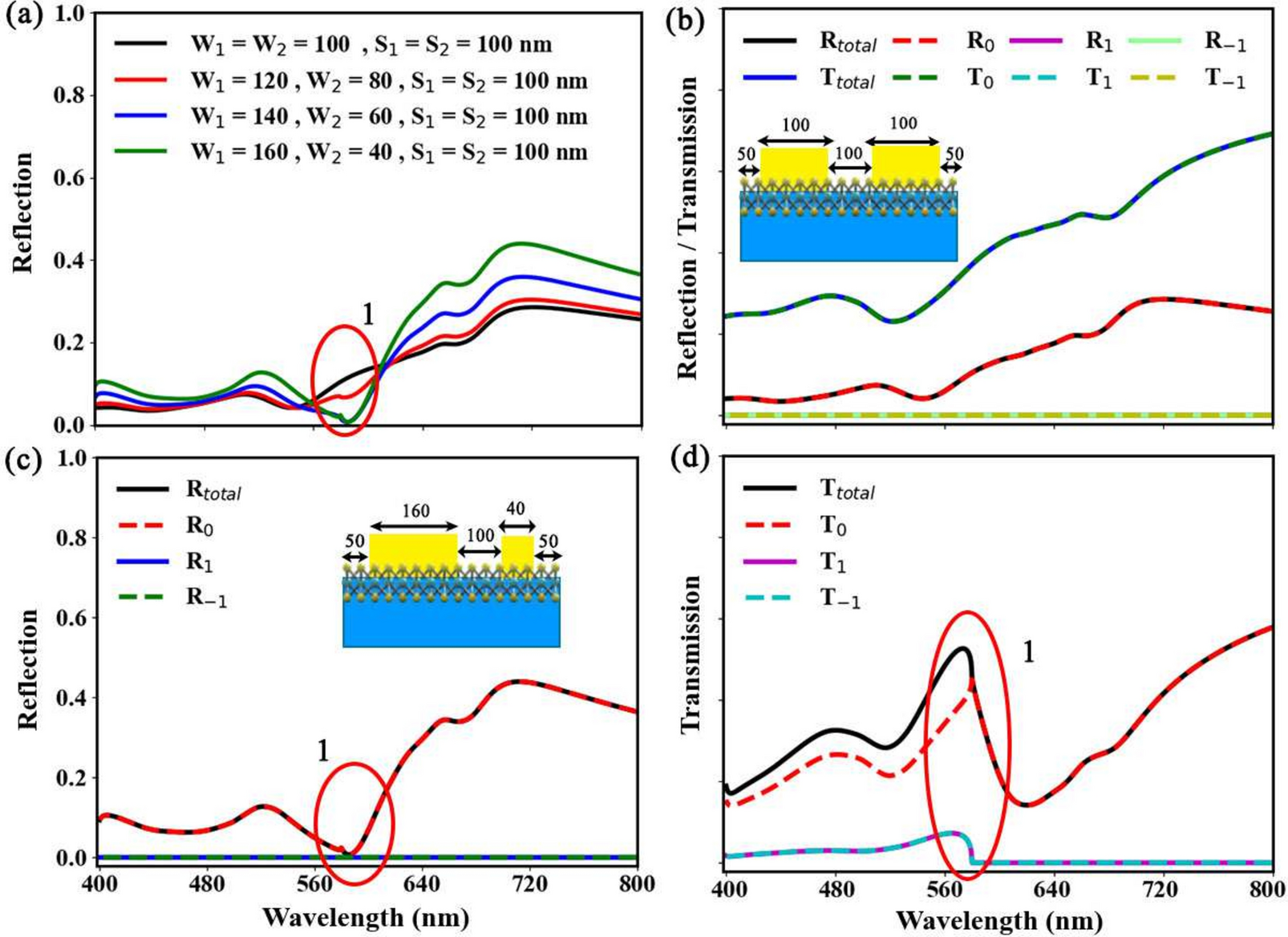

(a) Reflection spectrum (\(R_{total}\)) of the structure with \(P=400\) nm, \(S_1= S_2= 100\) nm, and different values of \(W_1\) and \(W_2\). As a reference, the reflection spectrum of a fully symmetric structure with \(W_1=W_2=100\) nm is inserted with the black solid line as a reference. The red oval shape that is marked as 1 is illustrative for the reflection peak at \(\lambda =580\) nm. (b) \(R_0\), \(R_{\pm 1}\), and \(R_{total}\) and \(T_0\), \(T_{\pm 1}\), and \(T_{total}\) for the structure with \(W_1=W_2=100\) nm. (c)/ (d) \(R_{total}\), \(R_0\), and \(R_{\pm 1}\)/ \(T_{total}\), \(T_0\), and \(T_{\pm 1}\) spectrum of the structure with \(W_1=160\) nm and \(W_2=40\) nm.
