Fig. 1
From: Randomized-field microwave-assisted pharmaceutical lyophilization with closed-loop control

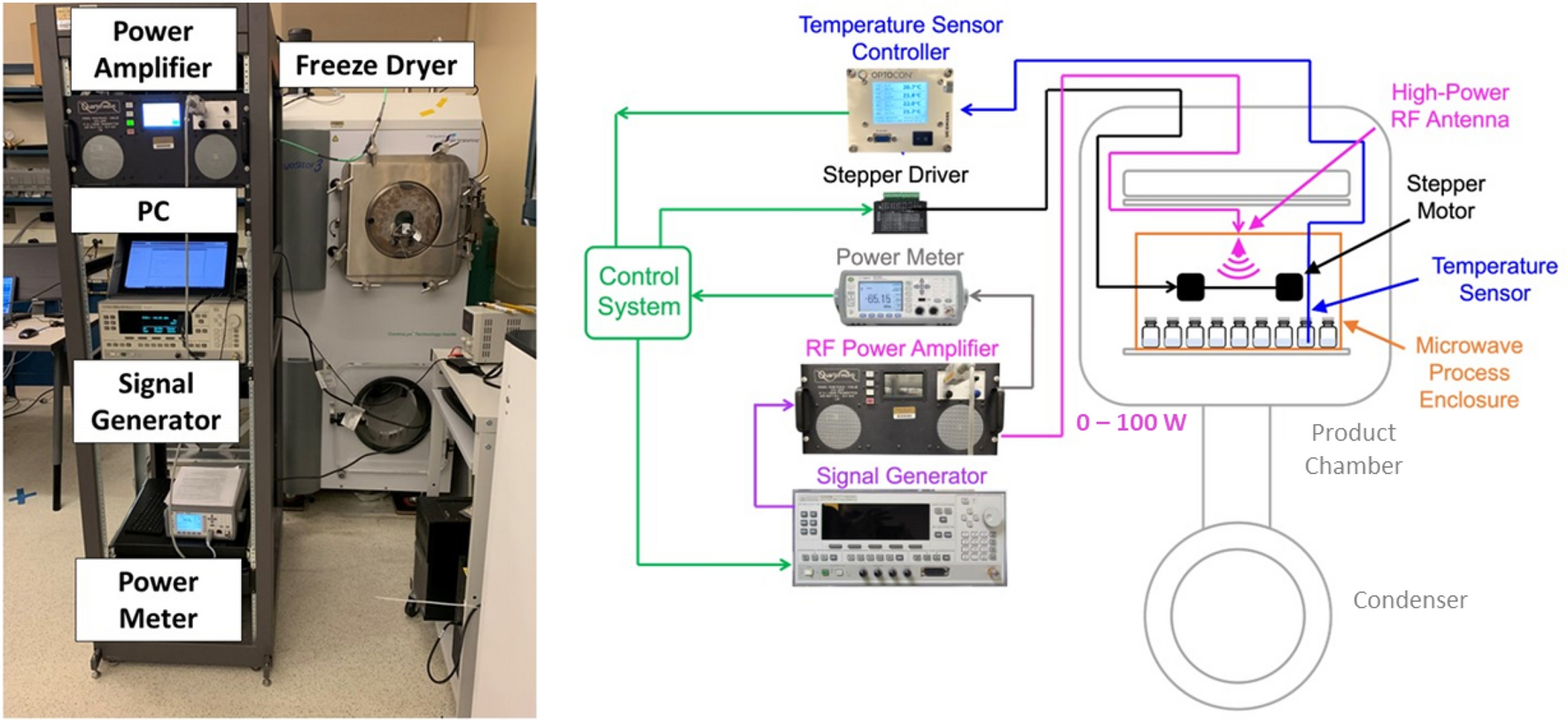

A photograph (left) and schematic (right) of qRF microwave lyophilization experimental setup on LyoStar\(\circledR\) 3 freeze-dryer. Closed-loop components are marked in green.
