Fig. 3
From: Randomized-field microwave-assisted pharmaceutical lyophilization with closed-loop control

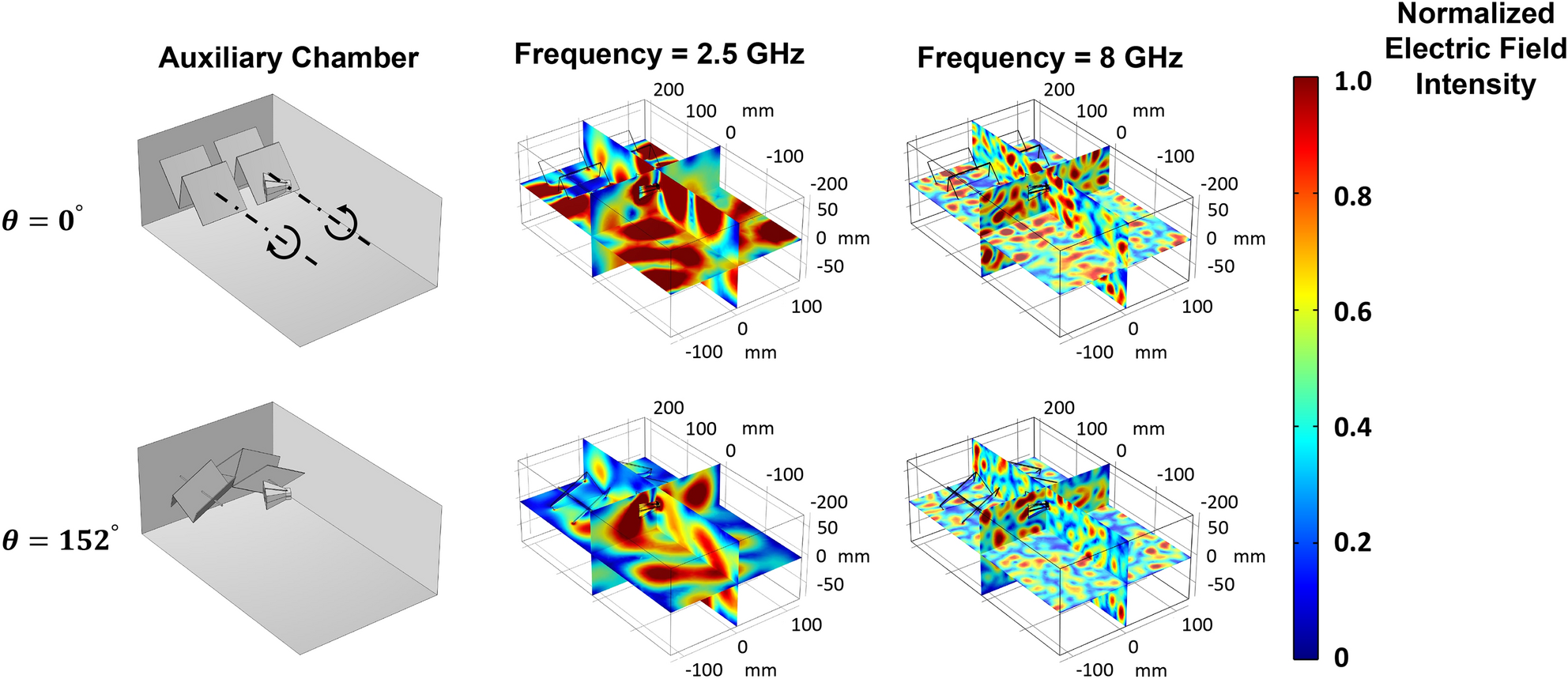

The normalized electric field distribution inside the qRF microwave chamber based on full-wave electromagnetic simulations using COMSOL for scatterer rotation angle \(\theta =0\) and 152 degrees and excitation frequencies \(f=2.5\) and 8 GHz.
