Fig. 9
From: Randomized-field microwave-assisted pharmaceutical lyophilization with closed-loop control

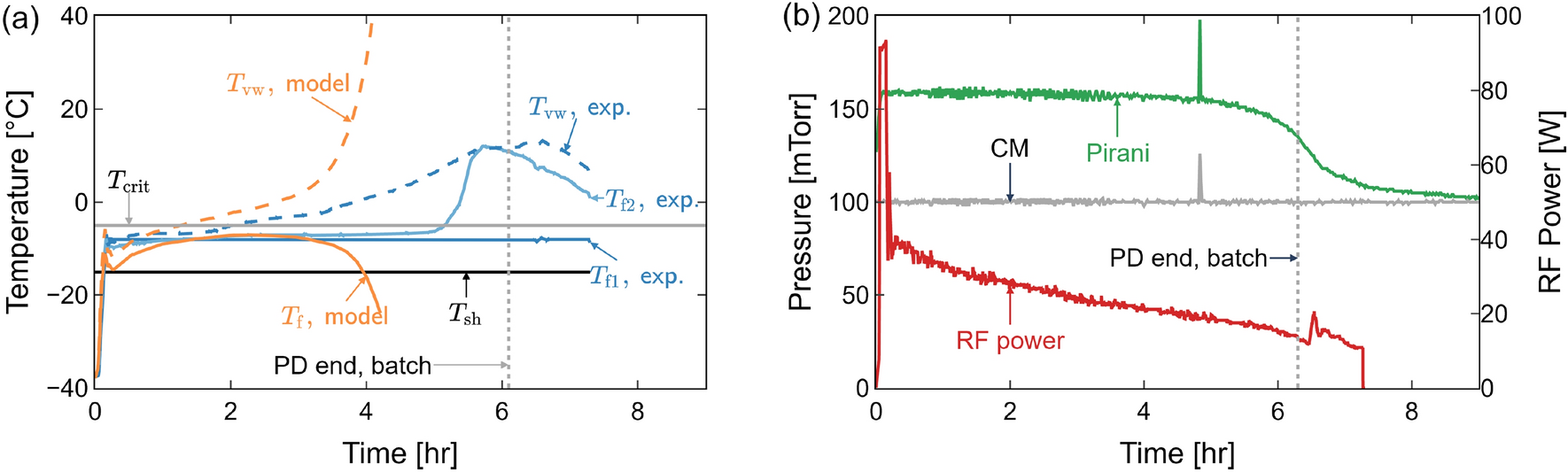

Primary drying data for Case M3, RF lyophilization with closed-loop control. Temperatures in (a), pressures and manipulated power level in (b). Model simulation also shown in (a).
