Fig. 6
From: A mathematical framework of HIV and TB co-infection dynamics

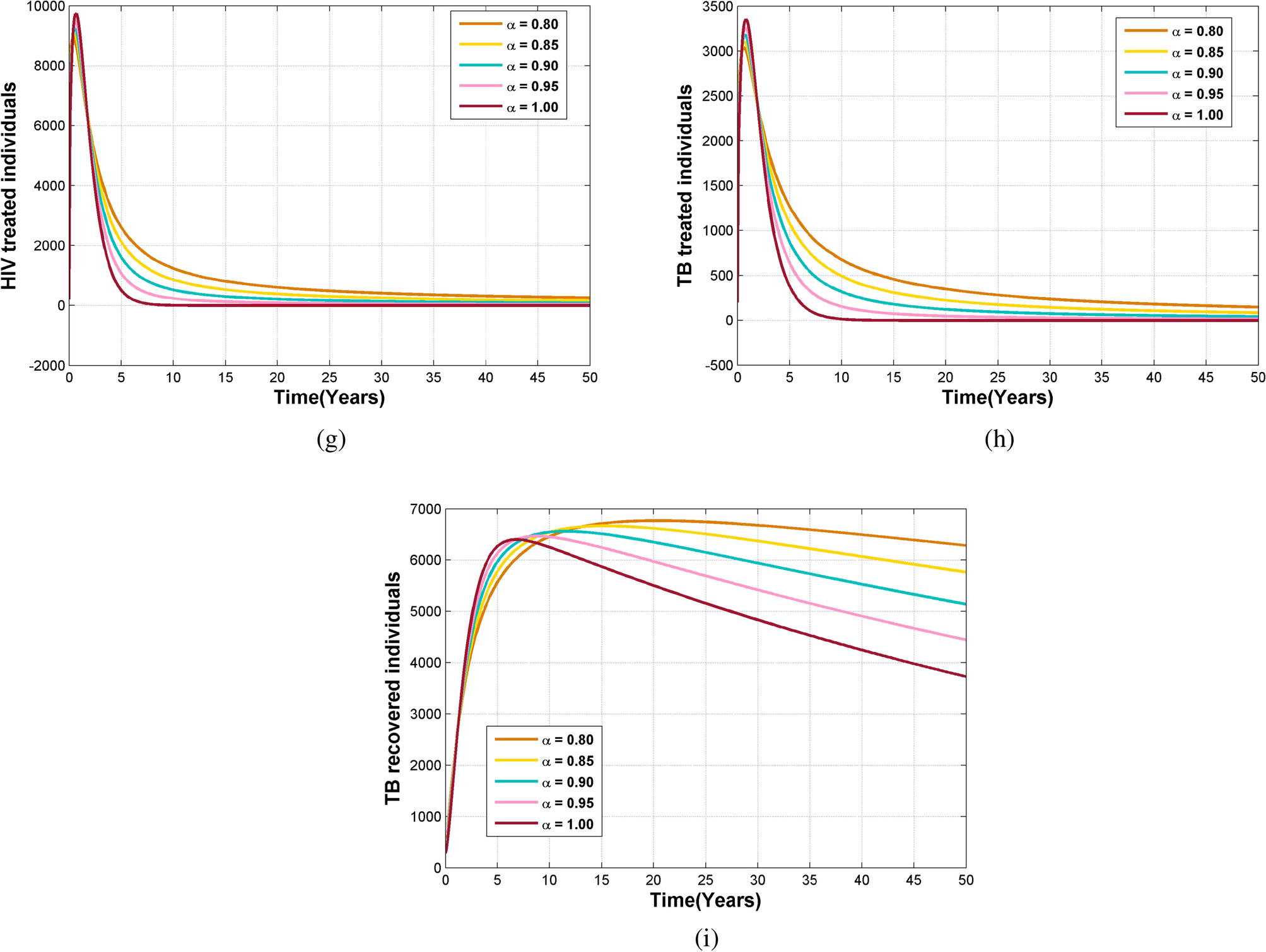

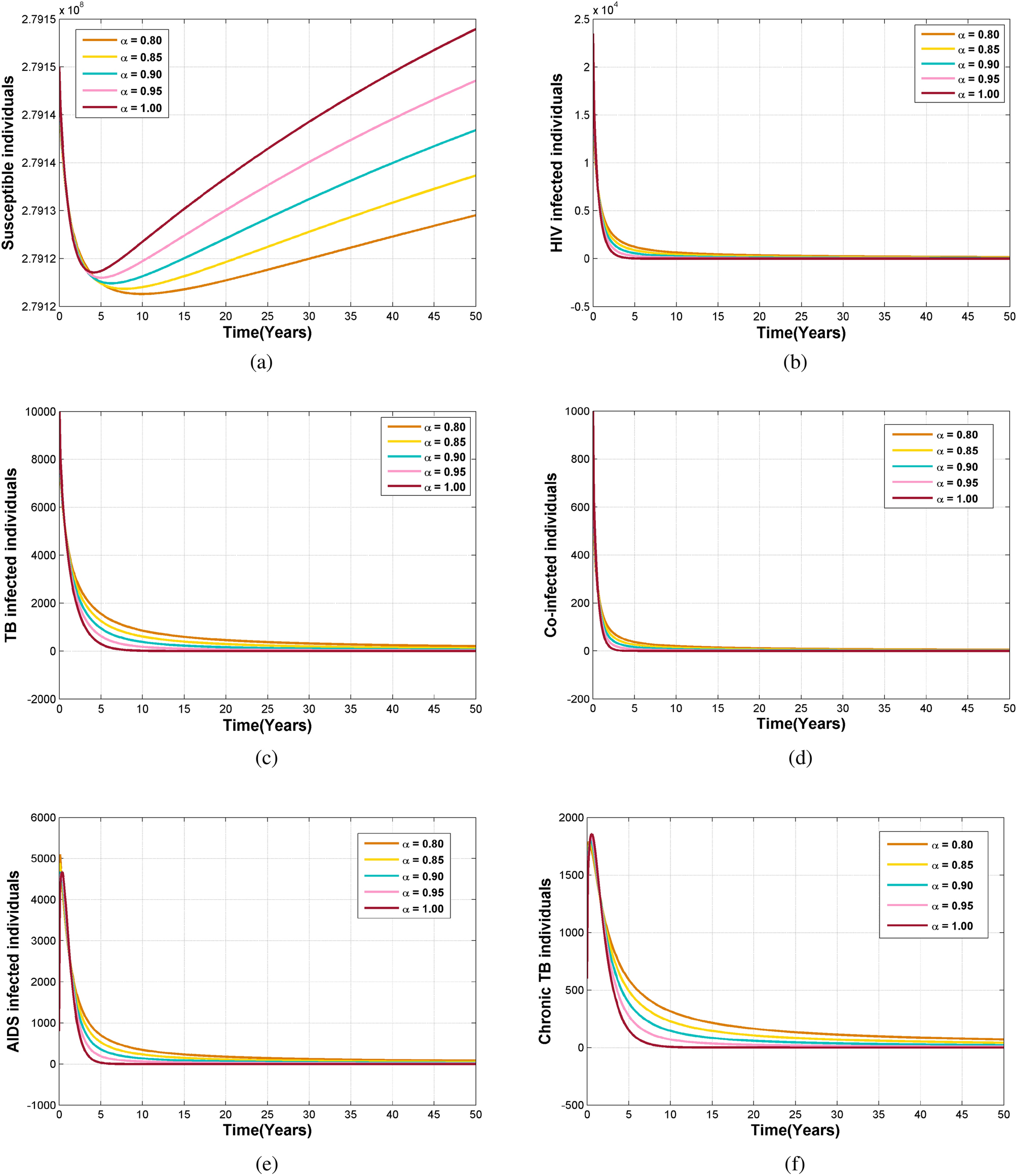

Various \(\alpha\) iterations of \(S,I_H,I_T,I_{TH},A_H\) and \(C_T\) when \(R_T>1\) and \(R_H<1\). Various \(\alpha\) iterations of \(T_H,T_T\) and \(R_T\) when \(R_T>1\) and \(R_H<1\).
