From: Evolution of carbonate platforms in the northeast Red Sea during the last 23 million years

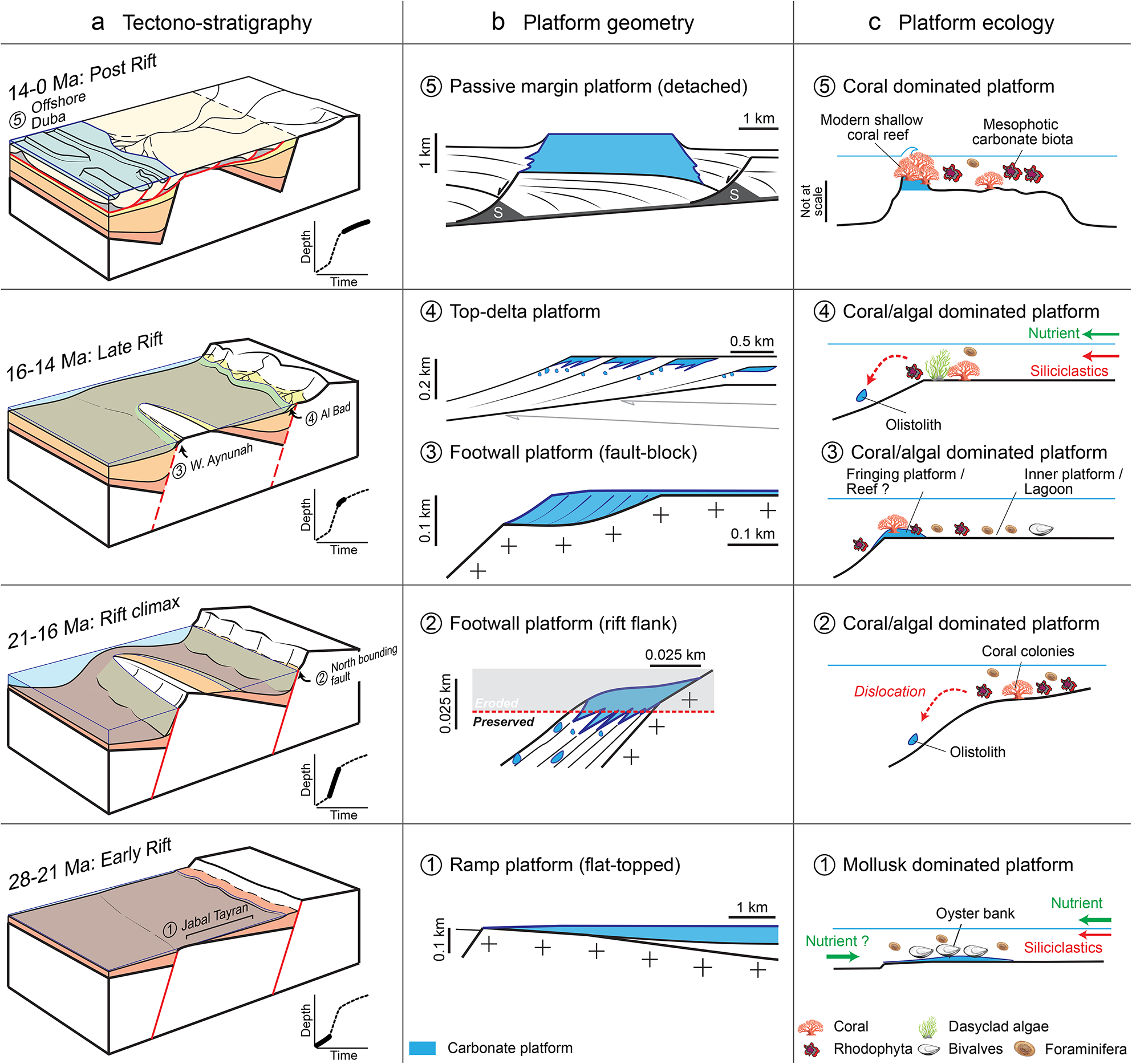

Evolution of the morphology and ecology of carbonate platforms in the Midyan Peninsula region, contextualized in their tectono-sedimentary framework. a Schematic block diagrams of the Midyan and Duba Basins depicting their configuration and sedimentary accommodation space throughout the tectonic history of the northeastern Red Sea. The time-depth curve illustrates the evolution of tectonic subsidence in the basin over time. b Schematic cross-sections of the platforms depicting their overall geometry and relationship with the underlying basement. c Principal carbonate producers across the depositional profiles of the platforms.
