Fig. 1
From: Low-profile conformal single-sided miniaturized frequency selective surface for wideband shielding

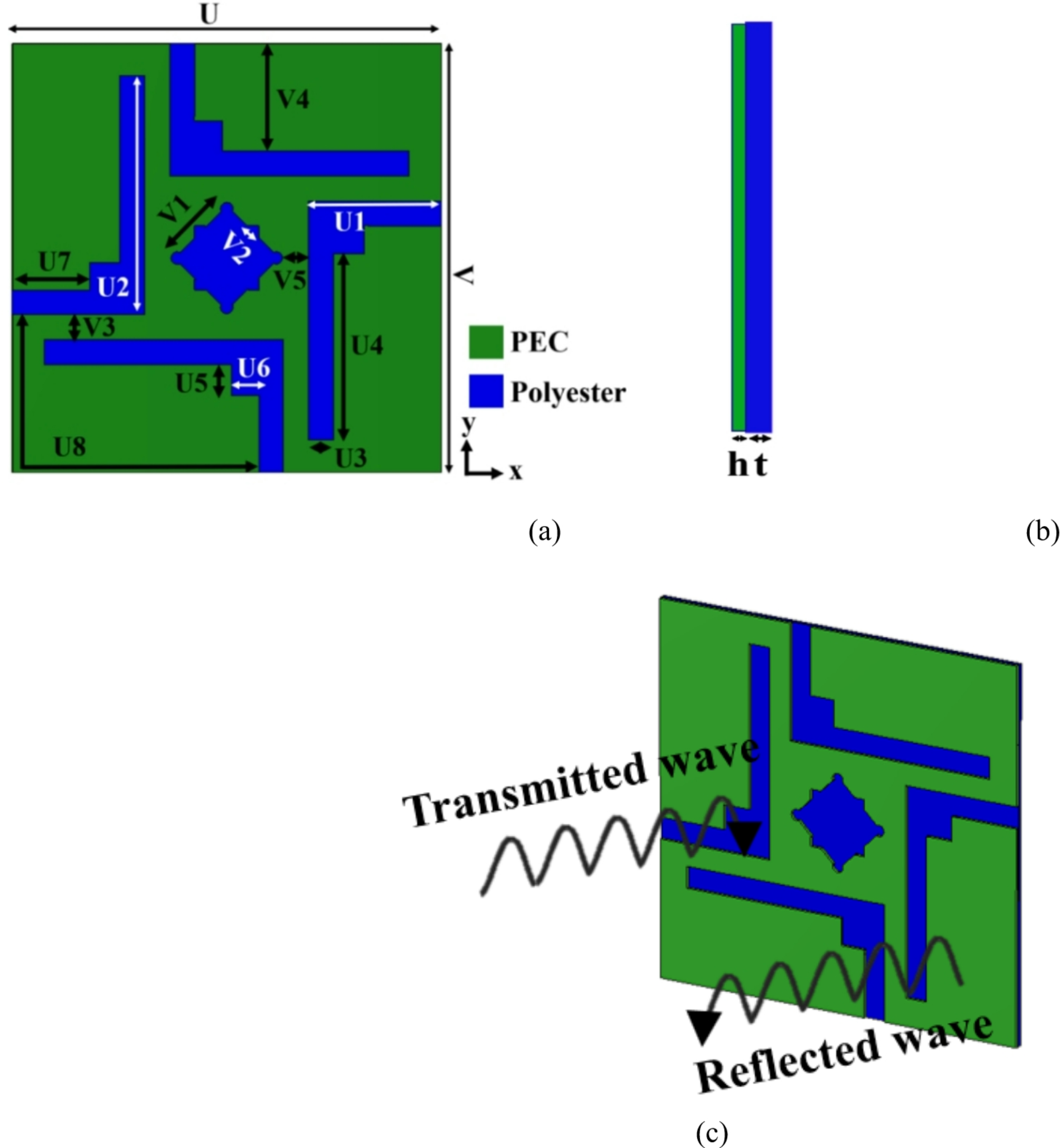

(a) Design of the proposed FSS unit cell (U = 4 mm, U1 = 2.23 mm, U2 = 3.23 mm, U3 = 0.43. mm, U4 = 2.54 mm, U5 = 0.885 mm, U6 = 0.4 mm, U7 = 1.74 mm, U8 = 4.764 mm, V = 4 mm, V1 = 0.734 mm, V2 = 0.49 mm, V3 = 0.734 mm, V4 = 1.8 mm, V5 = 0.254 mm, (b) Side view, (c) Behaviour of incident electromagnetic waves on the proposed band-stop FSS.
