Fig. 1

From: Robust resolution improvement of 3D UTE-MR angiogram of normal vasculatures using super-resolution convolutional neural network

Fig. 1

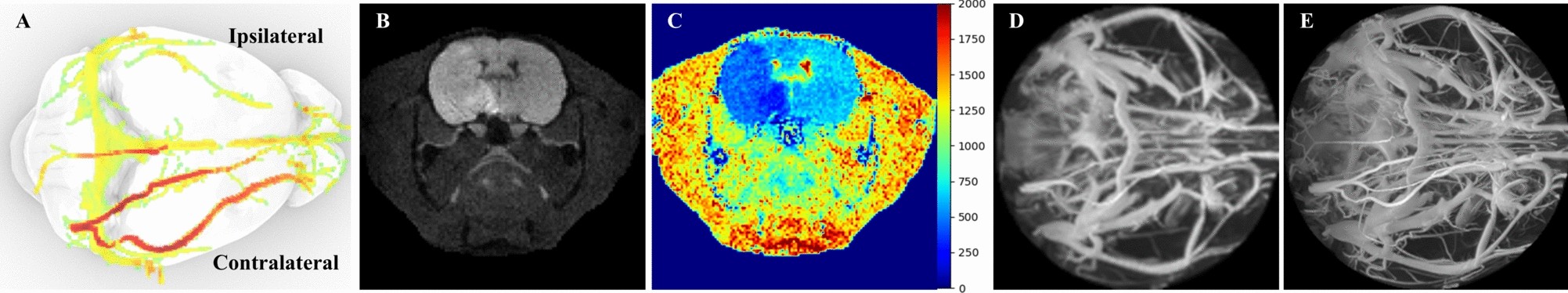

Imaging of ischemic stroke. (A) Schematic of the MCAO model. (B) Diffusion-weighted image (DWI, axial view), and (C) trace map of the apparent diffusion coefficient (ADC) in µm2/s (axial view). (D) and (E) are coronal views of low- and high-resolution UTE-MRA data, respectively, after maximum intensity projection. The MCAO model schematic was generated by overlaying cerebral vasculature on a brain template. The hyperintensity in the DWI and hypointensity in the ADC map show the region of infarction. MCAO: middle cerebral artery occlusion.
