Fig. 5 | Scientific Reports

Fig. 5

From: MicroRNA 320a-3p up-regulation reduces PD-L1 expression in gastric cancer cells: an experimental and bioinformatic study

Fig. 5

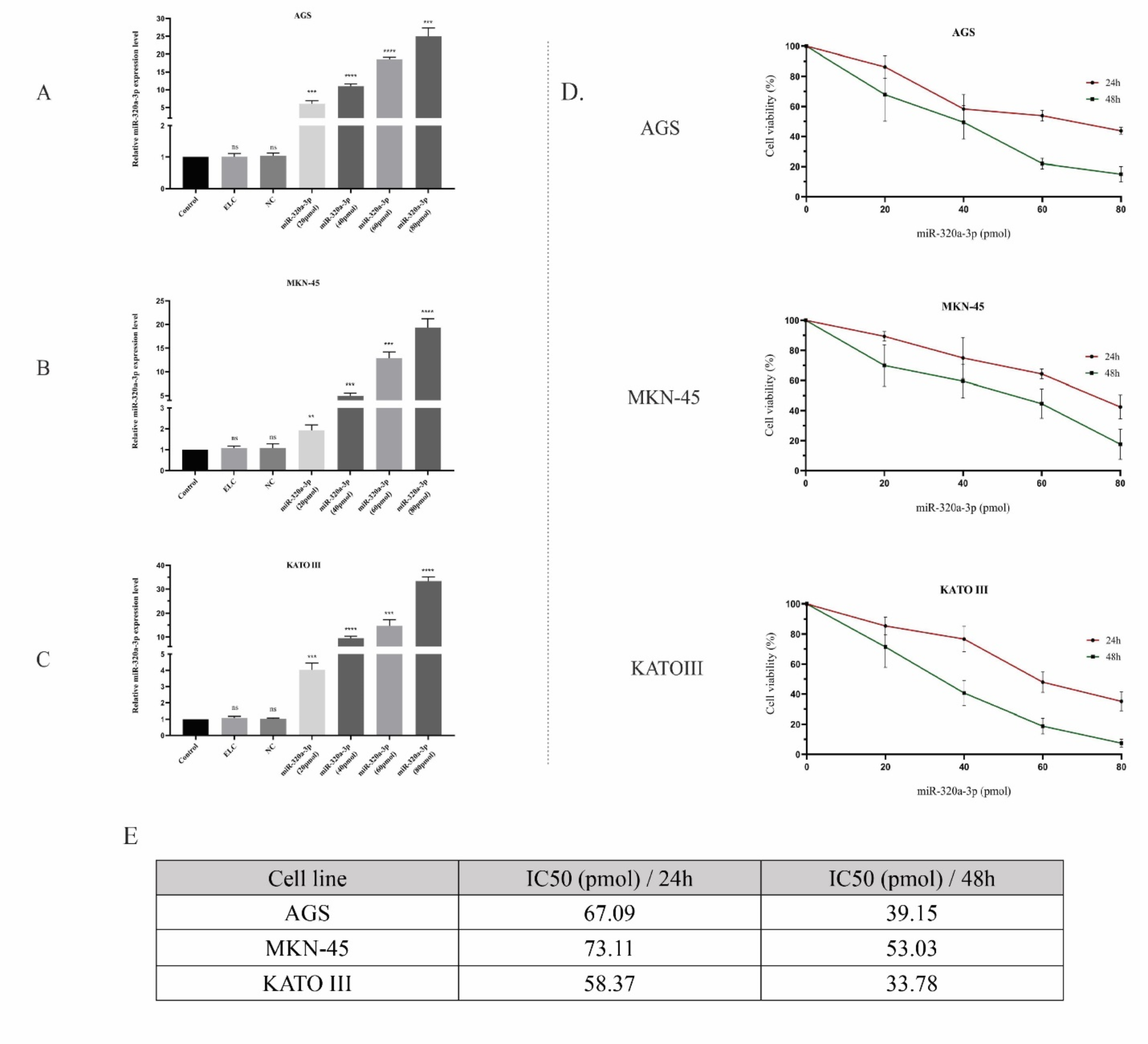

mir320a-3p expression in GC cell lines. Relative expression of mir320a-3p in GC cells as a control group compared to electroporation group (ELC), Negative control (NC) which is transfected by non-target mimic, 20, 40, 60,80 pmol mir320a-3p mimic group in AGC (A), MKN45 (B), and KATO III (C) cell lines. (D) The effect of mir320a-3p restoration on cell viability of GC cell lines (AGS, MKN-45, and KATO III) after 24 and 48 h of restoration. (E) The IC50 concentrations in study groups. Statistical significance was assessed using an unpaired t-test (*P value < 0.05, **P value < 0.01, ***P value < 0.001, and ****P value < 0.0001).
