Fig. 22 | Scientific Reports

Fig. 22

From: Numerical investigation on the penetration process of steel casings in riprap environment of estuarine mudflats

Fig. 22

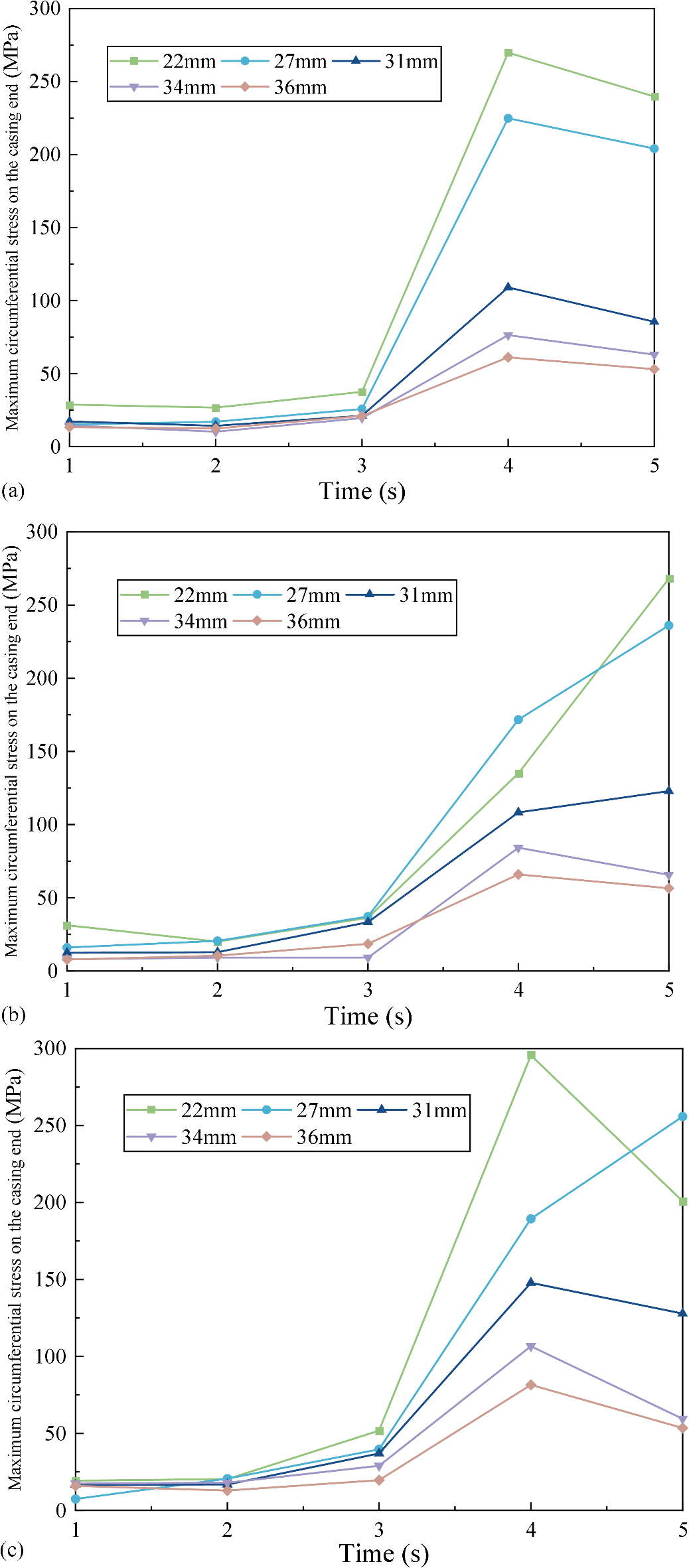

Time history curves of maximum circumferential stresses on the ends of the sinking casings during construction. (a) Time history curves of maximum circumferential stresses at the ends of the casings with a length of 11 m under different wall thicknesses; (b) Time history curves of maximum circumferential stresses at the ends of the casings with a length of 15 m under different wall thicknesses; (c) Time history curves of maximum circumferential stresses at the ends of the casings with a length of 19 m under different wall thicknesses.
