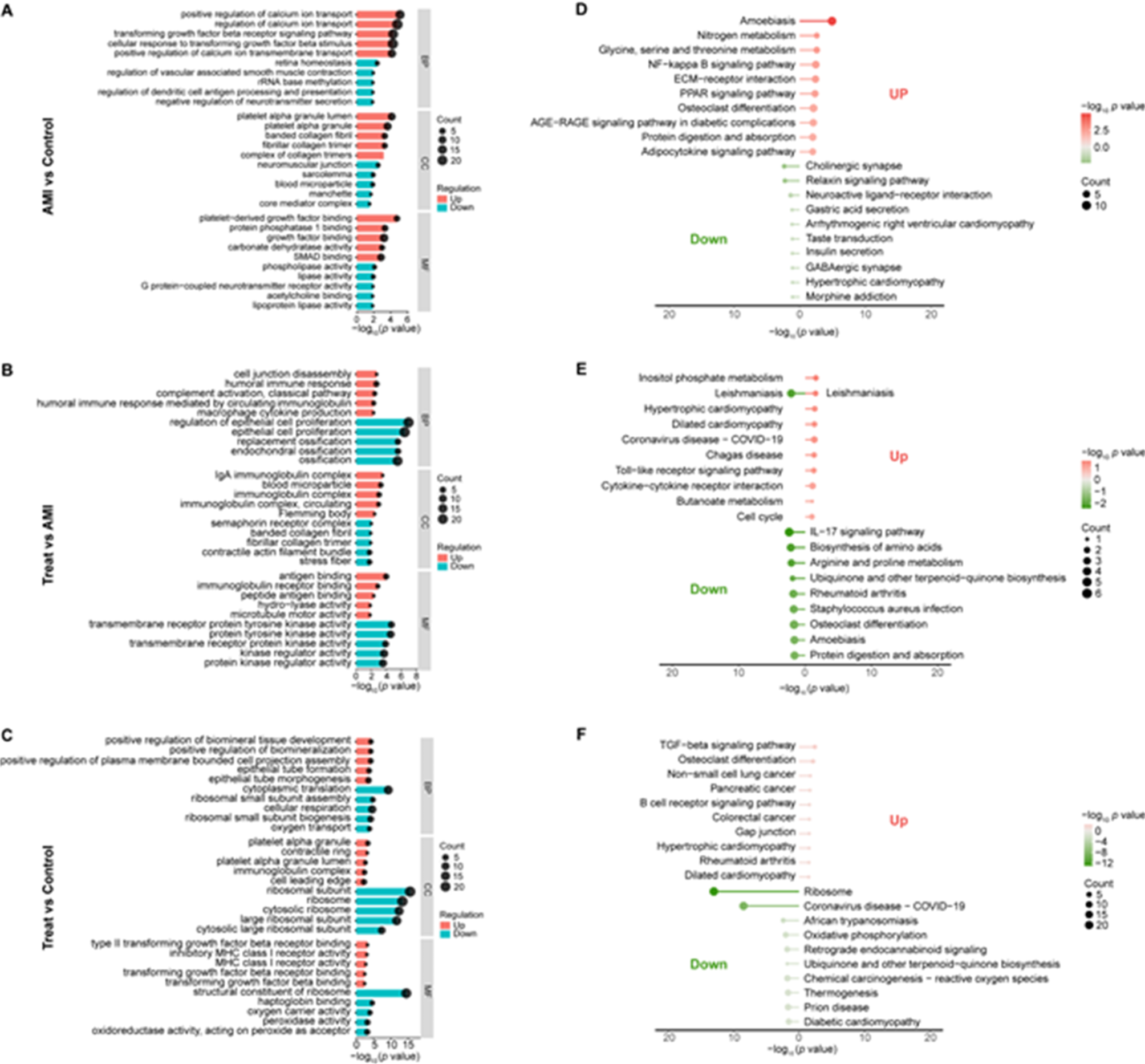

GO functional enrichment and pathway enrichment analyses were conducted on DEGs. (A–C) The top 5 GO terms associated with the Molecular Functions (MF), Biological Processes (BP), and Cellular Compartments (CC) in both upregulated and downregulated DEGs were identified. (A) In the comparison between AMI and healthy controls, (B) Post-treatment of AMI versus AMI, and (C) Post-treatment of AMI versus healthy controls. (D–F) KEGG enrichment analyses were performed on the upregulated and downregulated DEGs. The top 10 were shown here. (D) For the comparison between AMI and healthy controls, (E) Post-treatment versus AMI, and (F) Post-treatment of AMI versus healthy controls.
