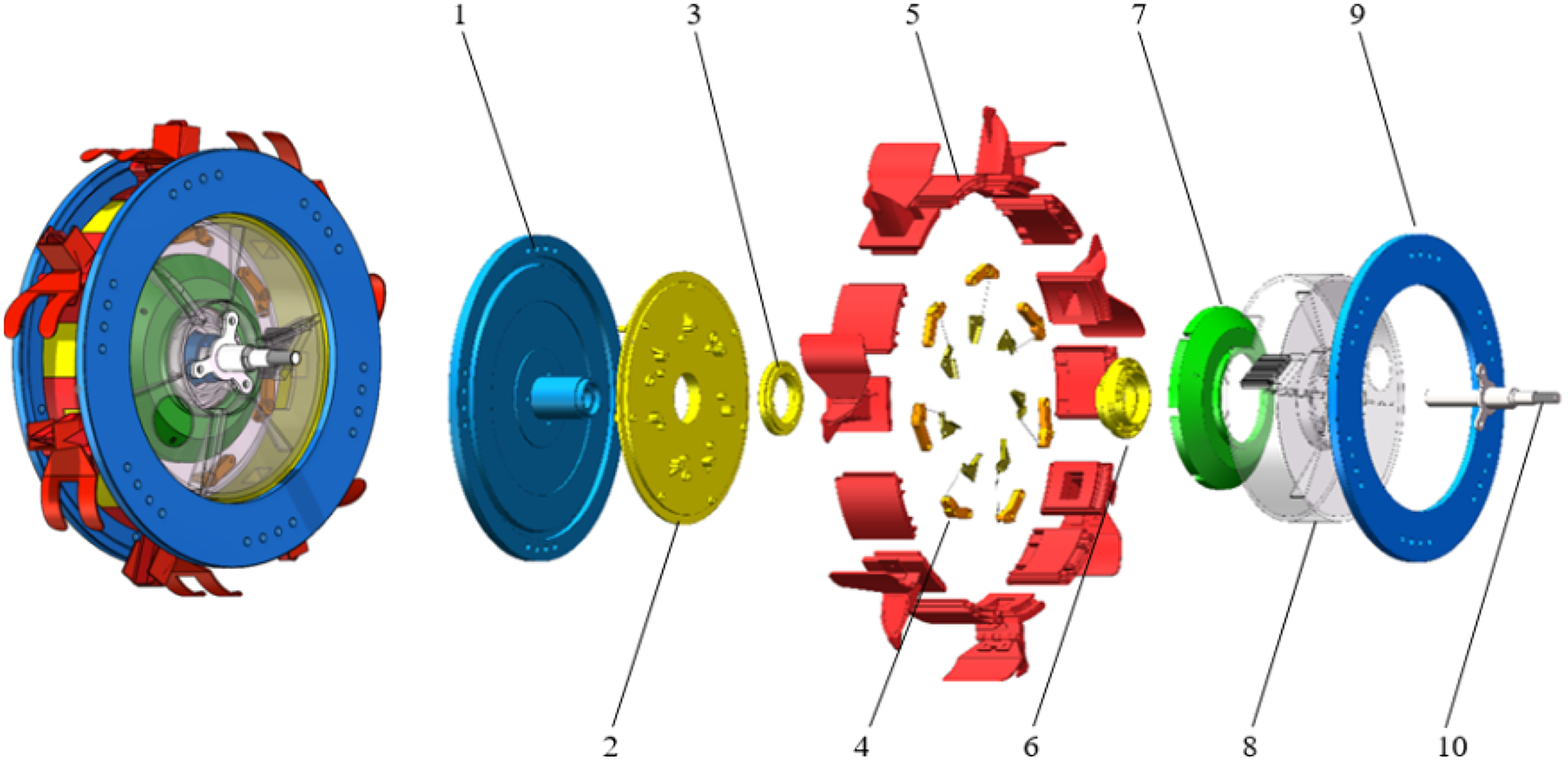

Fig. 1

Clip type precision seed metering device (1) Fixed disc (2) Seed filling disc (3) Fixing ring (4) Push rod clip clamping module (5) Duckbill component (6) Adjustment cam (7) Core disc (8) End cap (9) Pressure plate (10) Connecting shaft.
